1.9.2 Media Width Adjustment
The thumbwheel on the side of the printhead carrier assembly allows
the printhead to be adjusted for various sizes of media. The numbers
on the thumbwheel serve only as a reference point and do not
correspond with a particular media width.

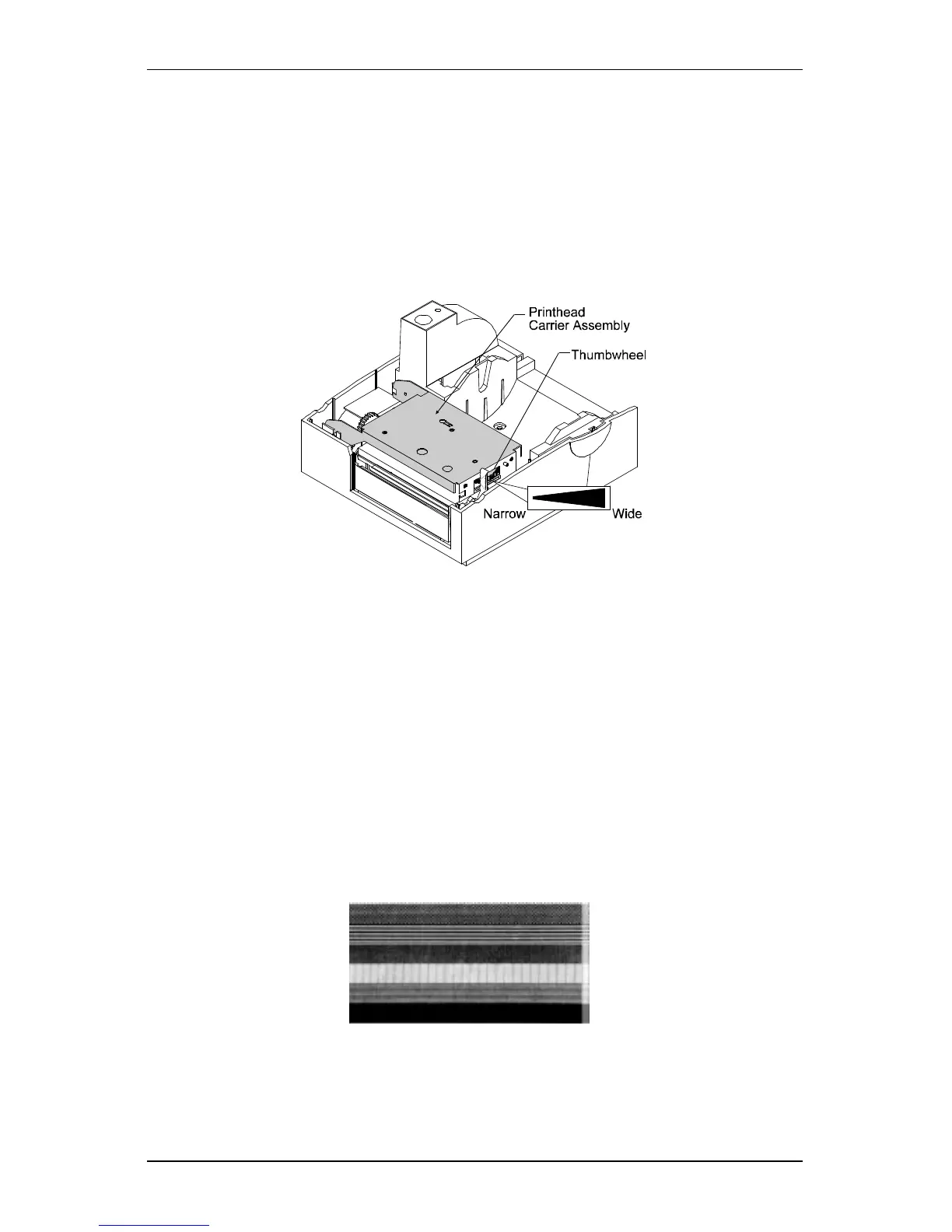

Figure 1-11 Thumbwheel for Media Width Adjustment
1. Load media into the printer.
2. Print a label, if it is light on the right-hand side then move the
thumbwheel to the right, (see example below).
3. An internal test label can be generated by holding the ‘feed’ button
down and turning ‘on’ the power switch until the media moves. The
first label printed is the configuration label which provides
information on the printer set-up. The second label printed is the test
pattern and shows print quality, (see Section 1.10 for additional
information).
Rotate
thumbwheel
clockwise until
print quality
along edge starts
to lighten.
(Light print on
the right side of
the test label
indicates that the
thumbwheel
should be
adjusted
clockwise.)
