Printing Labels
24 Ovation2

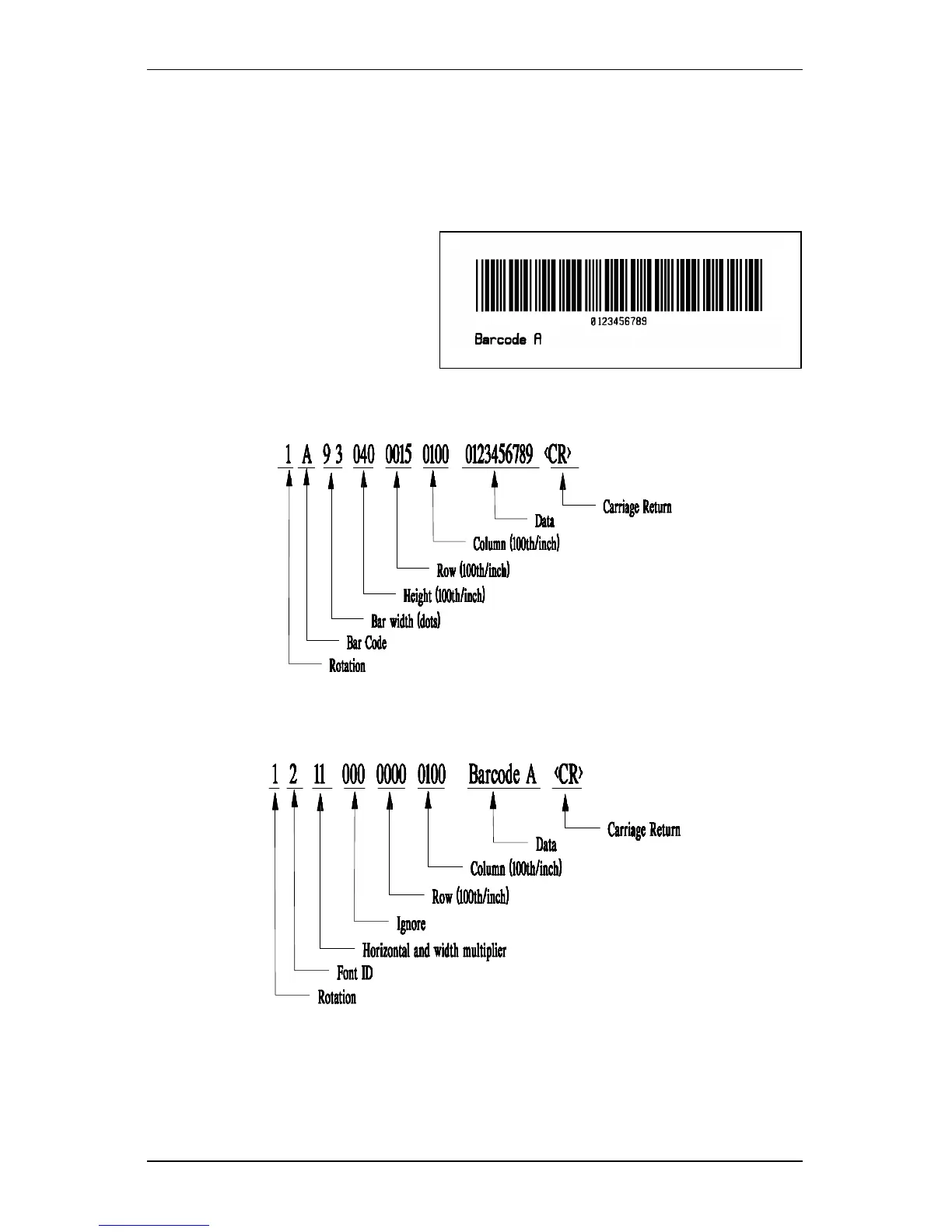

The example shown below prints out a Code 3 of 9 bar code with a
wide to narrow bar ratio of 3:1 and can be used to print any of the bar
codes shown in Appendix B by altering the example's fields. Refer to
Figures 2-2 and 2-3 for a brief explanation of the data fields.
<STX>L<CR>
D11<CR>
1A93040001501000123456789<CR>
121100000000100Barcode A<CR>
E
<STX>L Syntax L on line 1 is used to enter the label formatting mode.
Figure 2-2 Example line 3
Figure 2-3 Example line 4

Datamax Label Printer Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Media Type	Labels, tags, receipts, or tickets
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Connectivity	USB, Serial, Ethernet
Storage Temperature	140°F (-40°F to 60°C)
Power Requirements	100-240 VAC
Dimensions	Varies by model
Weight	Varies by model
