M-4206 11

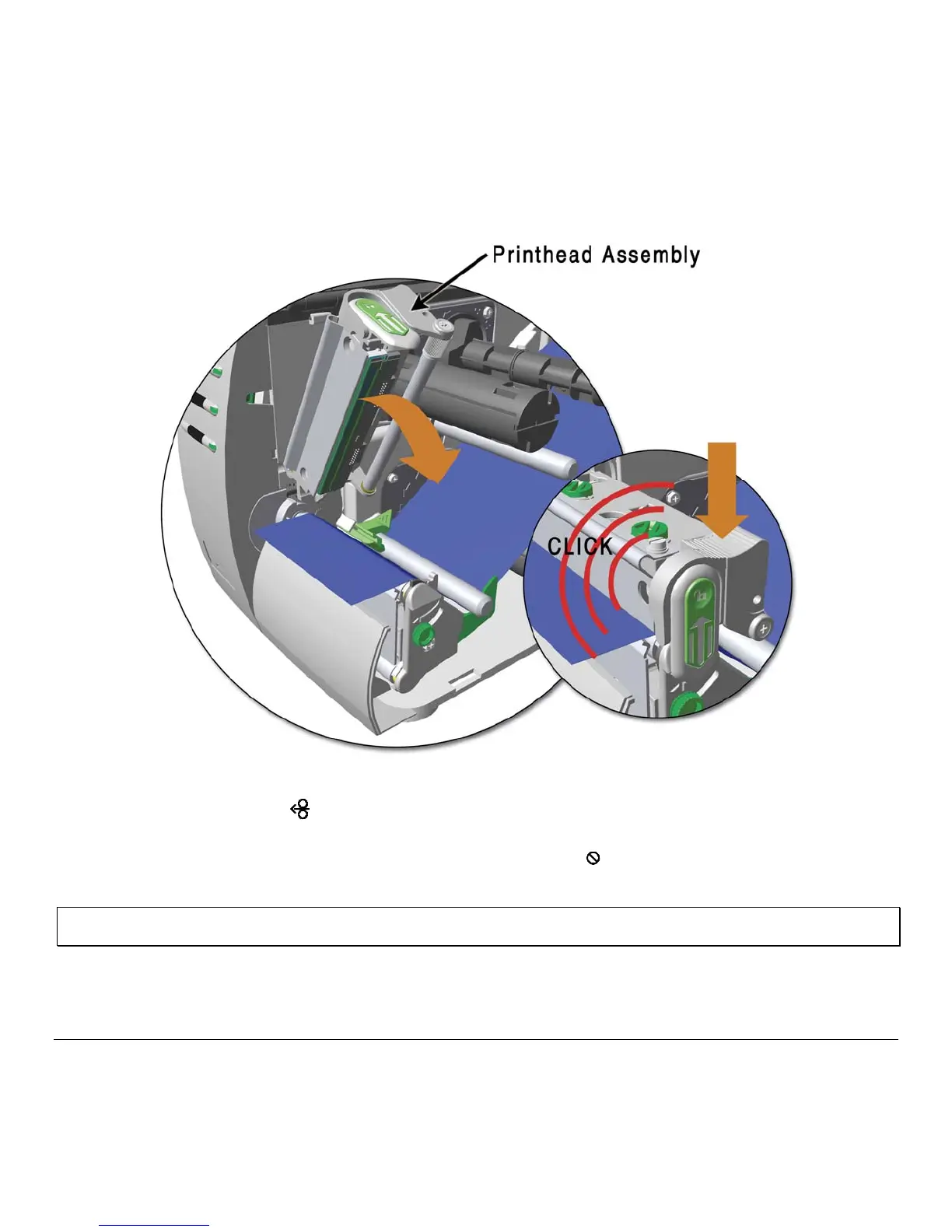

5. Close the Printhead Assembly and press down until it locks into place.
6. Close the cover and press the
FEED
button several times to position the media and ensure proper tracking.
If the printer does not correctly sense the top of each label, as denoted by the ERROR light, it may be necessary to
perform the Calibration Procedure, see section 4.7.1.
; Note: The printer is factory set to use 4-inch media (and ribbon, if thermal transfer equipped). When using a different width of
media/ribbon, please refer to section 5.2.
