Datamax M-Class Mark II M-4206 User Manual

12 M-4206

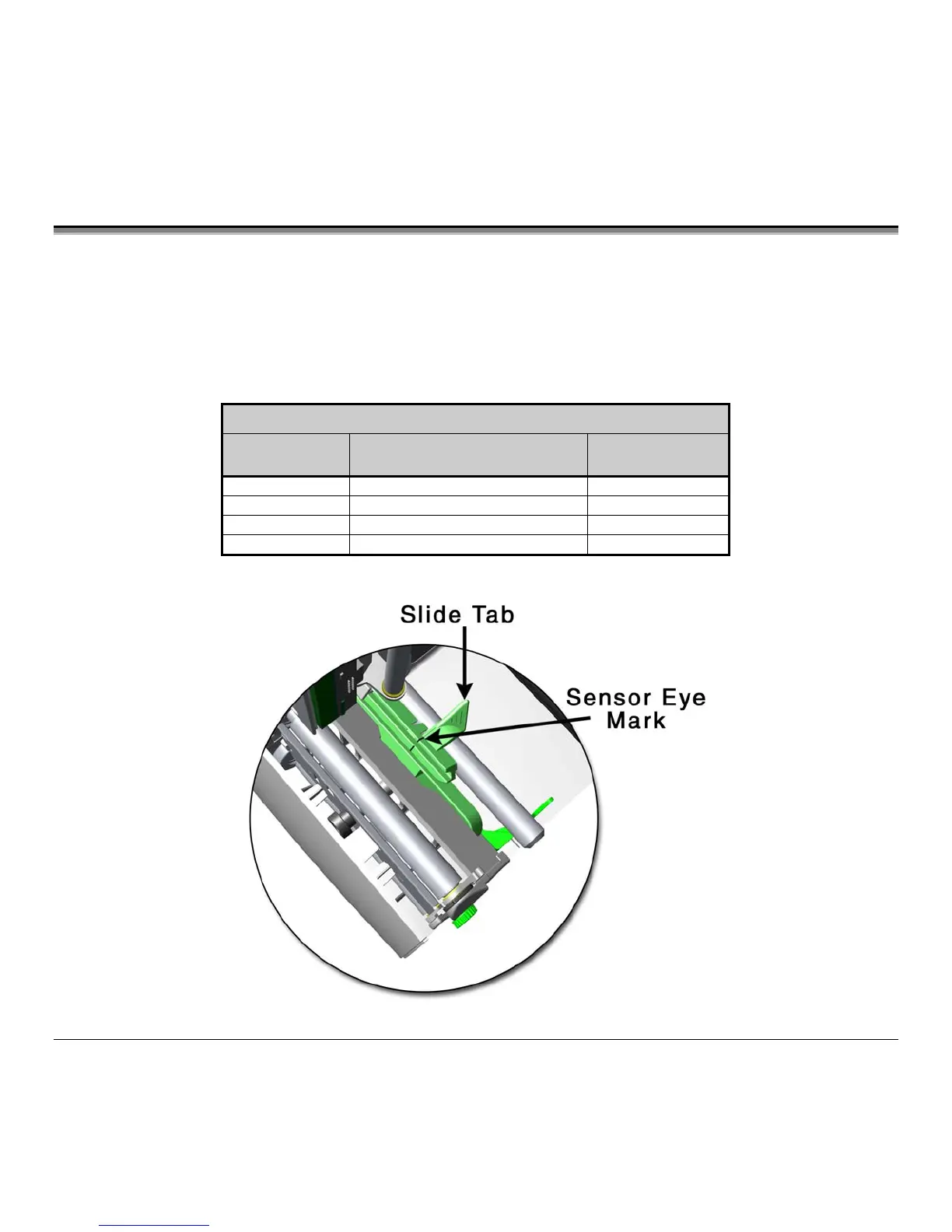

3.3 Media Sensor Adjustment
The Media Sensor needs to be positioned so that the printer can detect the presence of media and the top-of-form (except
for continuous stock, where the TOF is set through the front panel, (see ‘
CONT FORM LENGTH’, Section 4.5.2). To
adjust:
n With media loaded, as described in Section 3.2, grasp the Slide Tab and move the Sensor Eye Mark into position over
media according to the table below.
o If loading media, return to the media loading instructions.
Media Sensor Selection and Adjustment
Media Type Sensor Eye Mark Position Sensing
Required
*
Die-cut Near the middle of the label Gap
Notched Centered over the notch Gap
Reflective Centered over the black mark Reflective
Continuous Near the middle of the media Continuous
*
See Section 4.5.2 for Sensor Type selection.

Datamax M-Class Mark II M-4206 Specifications

General

Print Resolution	203 dpi
Print Method	Thermal Transfer and Direct Thermal
Max Print Width	4.25 inches
Max Print Speed	6 ips
Memory	8 MB Flash
Interfaces	Serial, Parallel, USB
Media Sensor	Reflective and Transmissive
Media Types	Labels, Tags
Label Roll Diameter	8 inches
Label Thickness	0.0025 to 0.01 inches
Maximum Print Length	99 inches
