Datamax M-Class Mark II User Manual

Chapter 2 - Printer Setup 11

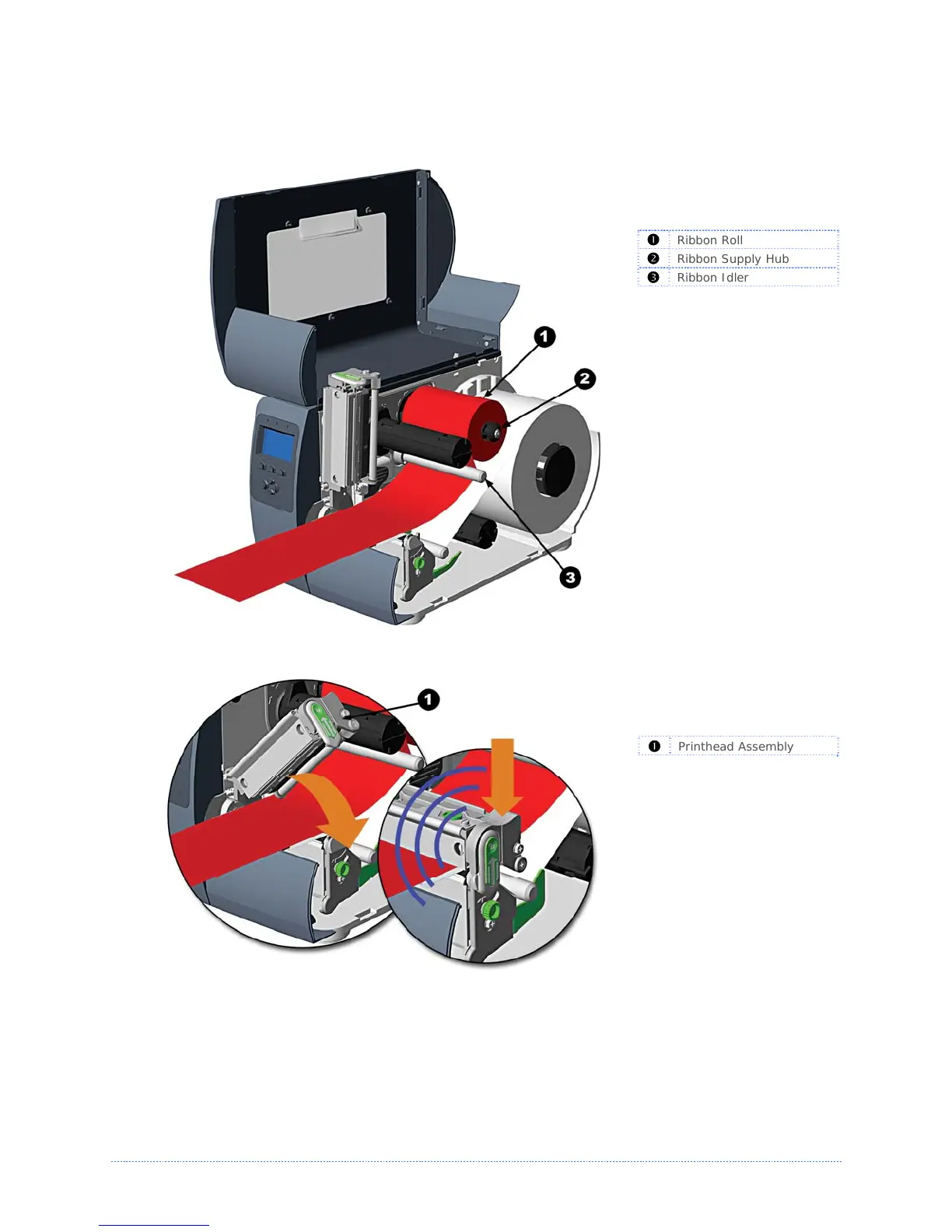

3. Route the ribbon under the Ribbon Idler and then out the front of the printer approximately 12
inches.

Ribbon Roll

Ribbon Supply Hub

Ribbon Idler
4. Close the Printhead Assembly and press down until it locks into place.

Printhead Assembly
