Appendix D – Changing the Language 90

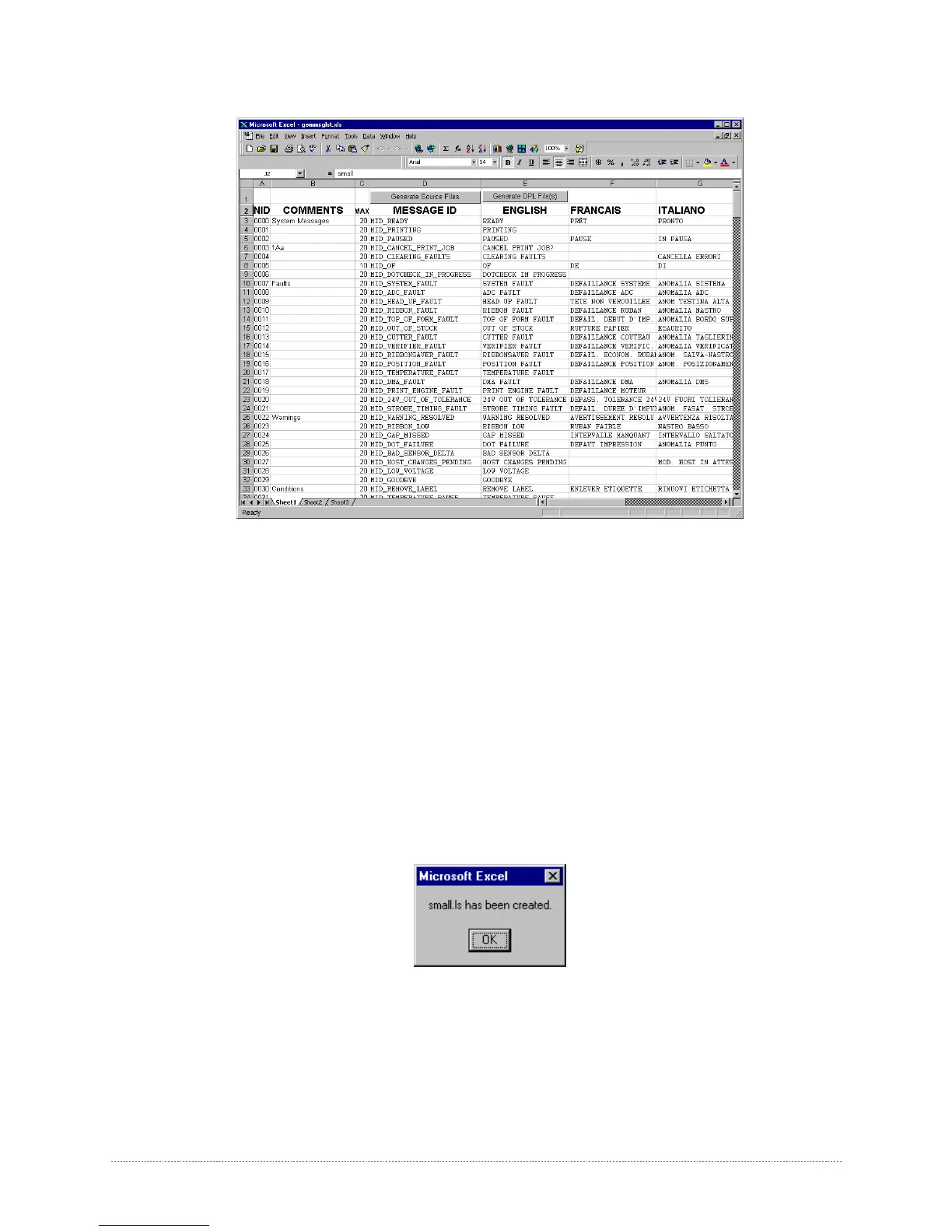

B. Click the “Enable Macro” box. The following screen appears:
C. Click on Column J and enter the new language, or modify an existing one. Some tips on this
process:
• Message Size – When entering new messages, reference the “MAX” column: this is the
maximum number of characters allowed for this field. (Warnings are displayed when the
number of characters is exceeded, or when trying to modify the MAX value; however, if
“cutting and pasting” fields, this warning system may be defeated.)
• Two Line Messages – Some of the message are displayed as two lines. These are indicated
in the comment fields.
• Comments – This field can be modified with no effect.
D. After editing is complete, highlight all of the columns to be created by pressing the letter
above the column (more than one column can be selected).
E. Press the Generate DPL File(s) radio button. A file will be generated for each of the selected
columns and Excel will provide confirmation (for example, as shown below, small.ls).

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
