Verifying Communication with Multiple Transmitters
Note: All transmitters in the network must have unique IDs in order for any repeater to communicate with them.
1. Find out and record all the Transmitter IDs the wireless repeater will repeat. Use the
“Transmitter and Repeater ID Worksheet” located inside the front cover to record the
transmitter IDs used. See “Verify Transmitter ID” on page 12 for information on
determining the Transmitter ID for all stations in the network.
2. On the Transmitter ID switch, set all the Transmitter IDs you want the repeater to
acquire to ON and make sure all the other Transmitter IDs are set to OFF.
3. Put the repeater into Test Mode by turning on repeater DIP Switch #4. When trying to
acquire stations, the repeater goes through the following process:
• It looks for a station signal for ten minutes, with the "STAT" LED flashing red
when it detects a signal not associated with a station during this time.
• It flashes yellow if it has found some stations but not all, and then;
• It flashes green when all stations are found. For each station found, the "TX" LED
flashes immediately after the "STAT" LED, indicating that it is repeating the data
from that station.
Note: See “Maintenance and Troubleshooting” on page 34 if the above LED pattern does not display.
4. Important: Turn the Repeater DIP Switch #4 to OFF once the test is complete,
otherwise it will significantly shorten battery life.

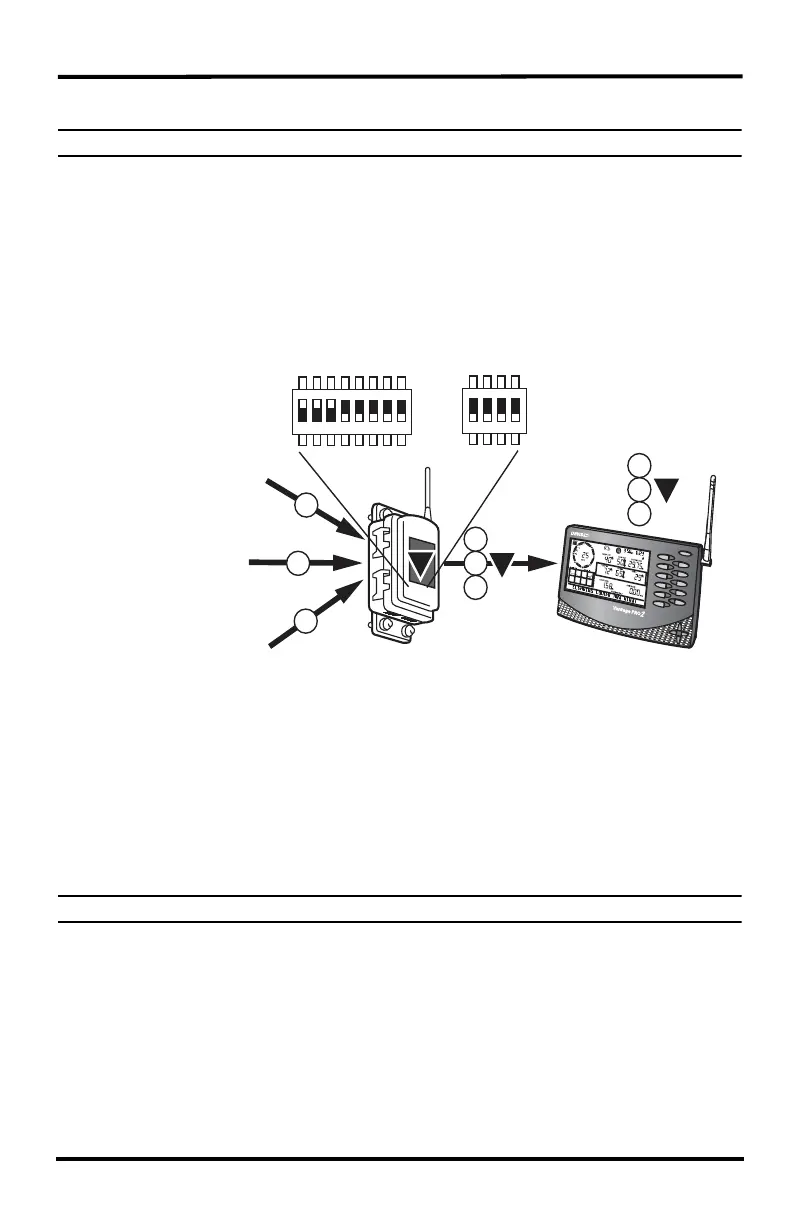

A
Repeater
1
A
2
1
3
2
1
3
Vantage Pro2
Console
A
A
T
ransm
i
tter
DIP
Switch with
IDs 1, 2, 3 ON
Repeater DIP
Switch set to ID A
ID 1:Vantage Pro2
Station
2
3
ID 2: Temperature
Station
ID 3: Anemometer
Transmitter Kit

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
