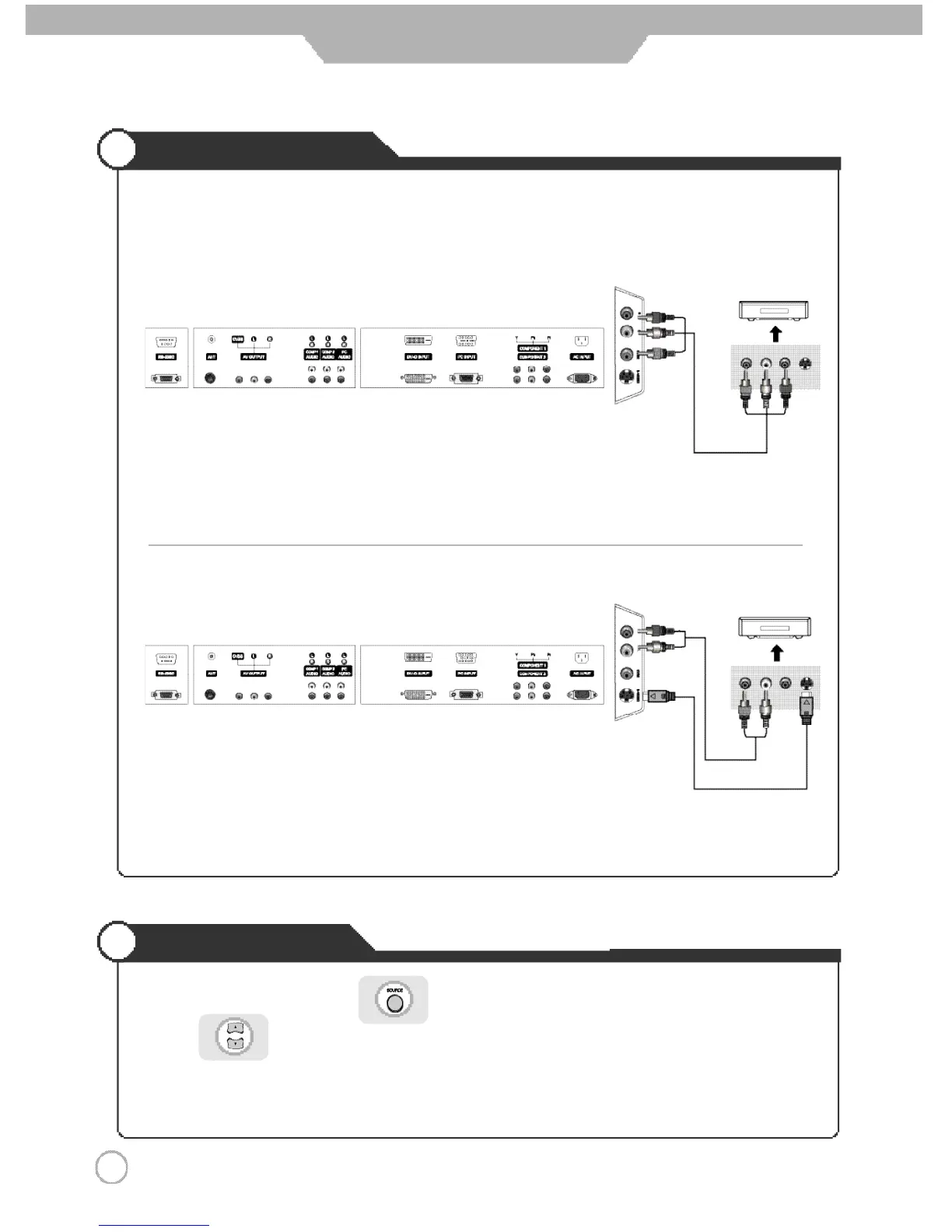

VCR Connections
Playing the VCR
1 4
Connection
1. Turn on the PDP TV and press on the remote controller.
2. Use to move to "AV".
·If S-Video has been connected, select S-Video.
3. Turn on the VCR, insert the tape and press play button.
·
Connect the PDP TV's AV In terminal to the VCR's AV Out terminal using the AV cable.
(Make sure the color of the terminals and the color of the cable are the same)
※ Use the S-Video cable for higher picture quality.
※ Connection terminals of other appliances differ by manufacturer and model.
< PDP TV Back view >
AV Cable
S-Video Cable
( R ) ( L )
< VIDEO >
( R ) ( L )
< VIDEO >
● Connecting to the AV terminal
● Connecting to the S-Video terminal
< PDP TV Back view >
