Camcorder/Game Console Connections

Using Camcorder/Game Console

1 6

Connection

1. Turn on the PDP TV and press on the remote controller.

2. Use to move to "AV".

· If S-Video has been connected, select S-Video.

3. Turn on the Camcorder or video game and set to Video mode.

(Please refer to the User's manual of Camcorder/ Video game for more information)

4. Insert tape into Camcorder and press play button or insert disc into the Video game console.

※ Connection terminals of other appliances differ by manufacturer and model.

< PDP TV Back view >

AV Cable

S-Video Cable

·Connect the PDP TV's AV In terminal to the camcorder/game console's AV Out terminal with the AV cable. (Make

sure the color of the terminals and the color of cable are the same)

※ S-Video cable can be used if there is an S-Video terminal.

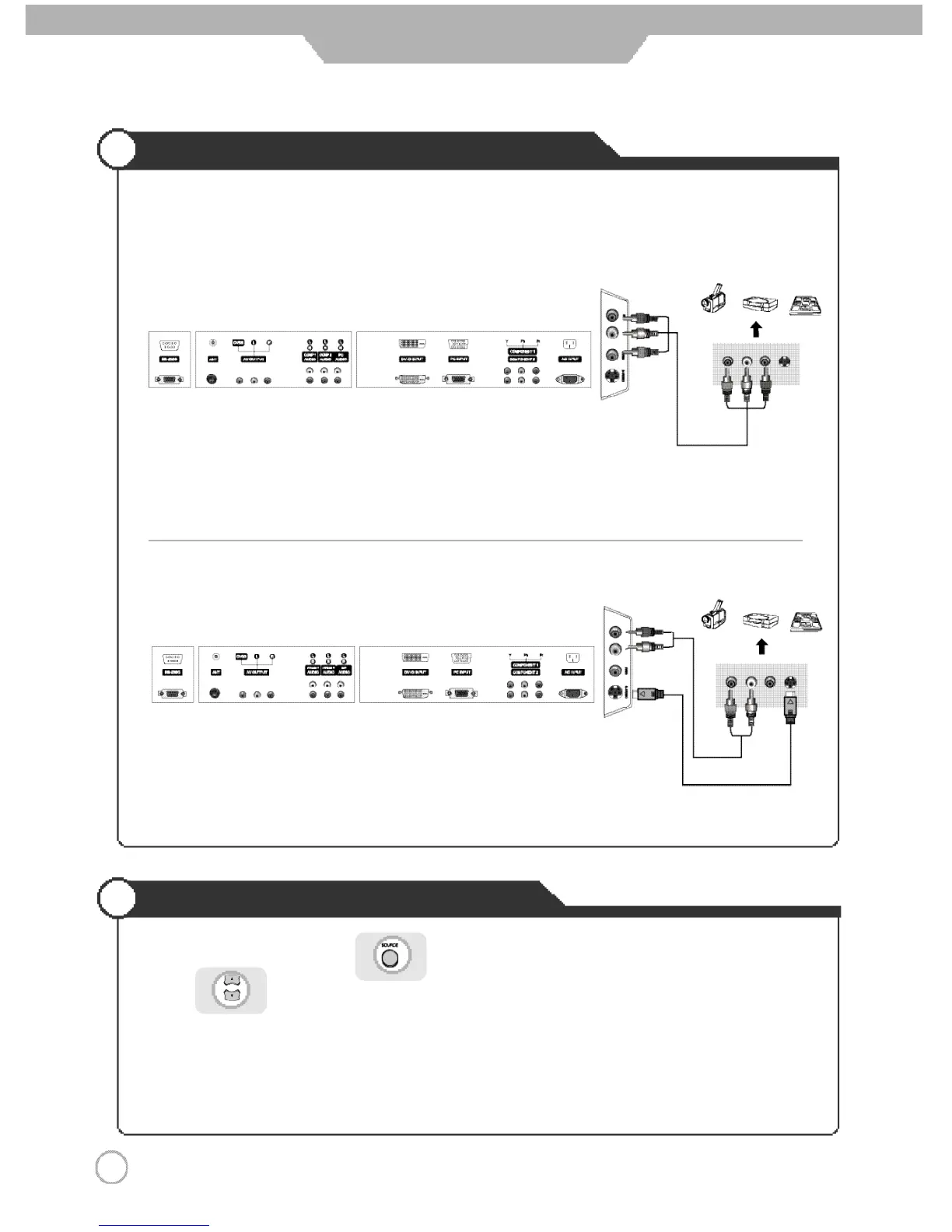

● Connecting to the AV terminal

● Connecting to S-Video terminal

( R ) ( L )

< Camcorder/ Game machine >

< PDP TV Back view >
