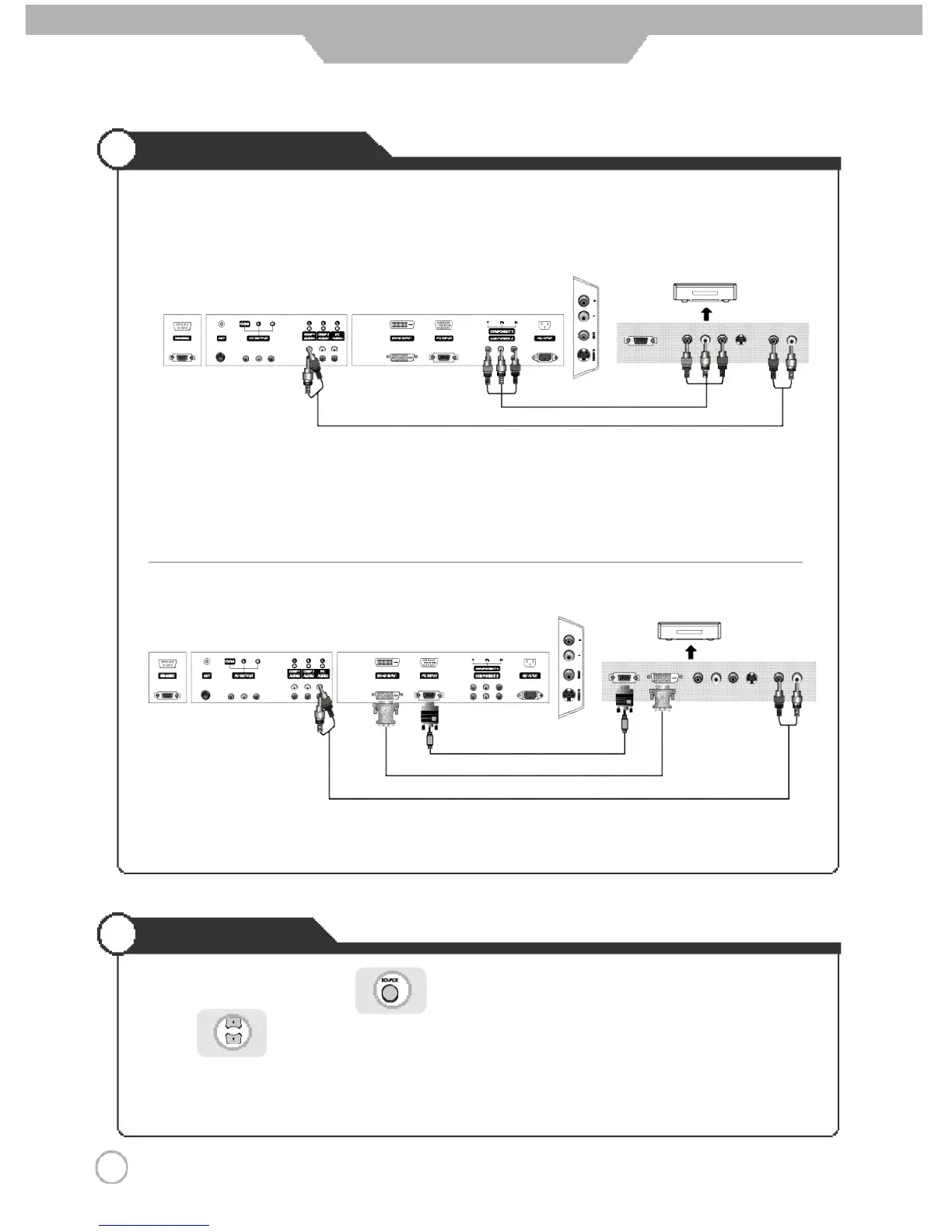

DTV Connections
Viewing DTV
1 8
Connection
1. Connect PDP TV's Y, PB,PR
terminal in Component 1 to DTV receiver's Video Out terminal using the external cable.
2. Connect PDP TV's Audio terminals (left & right) in Component 1 to DTV receiver's Audio Out terminal using the
Audio cable.
3. It musts agree Component's number of Y, PB, PR terminal and Audio terminal.
※ DTV receiver's output terminal can be marked Y, PB,PR or Y, CB, CR according to products.
·Some of DTV receiver(Set-Top-Box) have an PC Connector (D-Sub 15pin), DVI connector instead of Component output .
·Connect Audio Cable from the Audio output terminal of receiver to the PC Audio input terminal of the PDP TV.
1. Turn on the PDP TV and press on the remote controller.
2. Use to move to "Component 1 or 2".
·If D-Sub 15 Pin has been connected, select PC.
·If DVI-D has been connected, select DVI.
3. Turn on the DTV receiver and select the channel that you want.
● Connecting to the component terminal
● Connecting to the PC/DVI terminal
※ Connection terminals of other appliances differ by manufacturer and model.
( R ) ( L )
PRPBY
< DTV receiver>
( R ) ( L )
PRPBY
< DTV receiver>
Component Audio Cable
Analog RGB(D-Sub 15 pin) Cable
PC Audio Cable
Component Connection Cable
< PDP TV Back view >
< PDP TV Back view >
DVI
-
D Cable
