3. FIRST SWITCH-ON
CONNECTING THE TOPS TO THE SUBWOOFER
When using a MONO conguration,
mount the two heads as described in
the related paragraph and then you
only need one connection from the
subwoofer to one of the two tops:
• Insert the double top onto
the telescopic pole mounted
previously on the subwoofer (it
makes no difference whether you
choose hole [X] or the other one)
• Use the 2.5 m cable
provided.
• Connect the bottom connector
on the double top as shown
• Connect it to the MONO
connector [9] on the sub
• Use the clips provided to secure
the cable to the telescopic pole

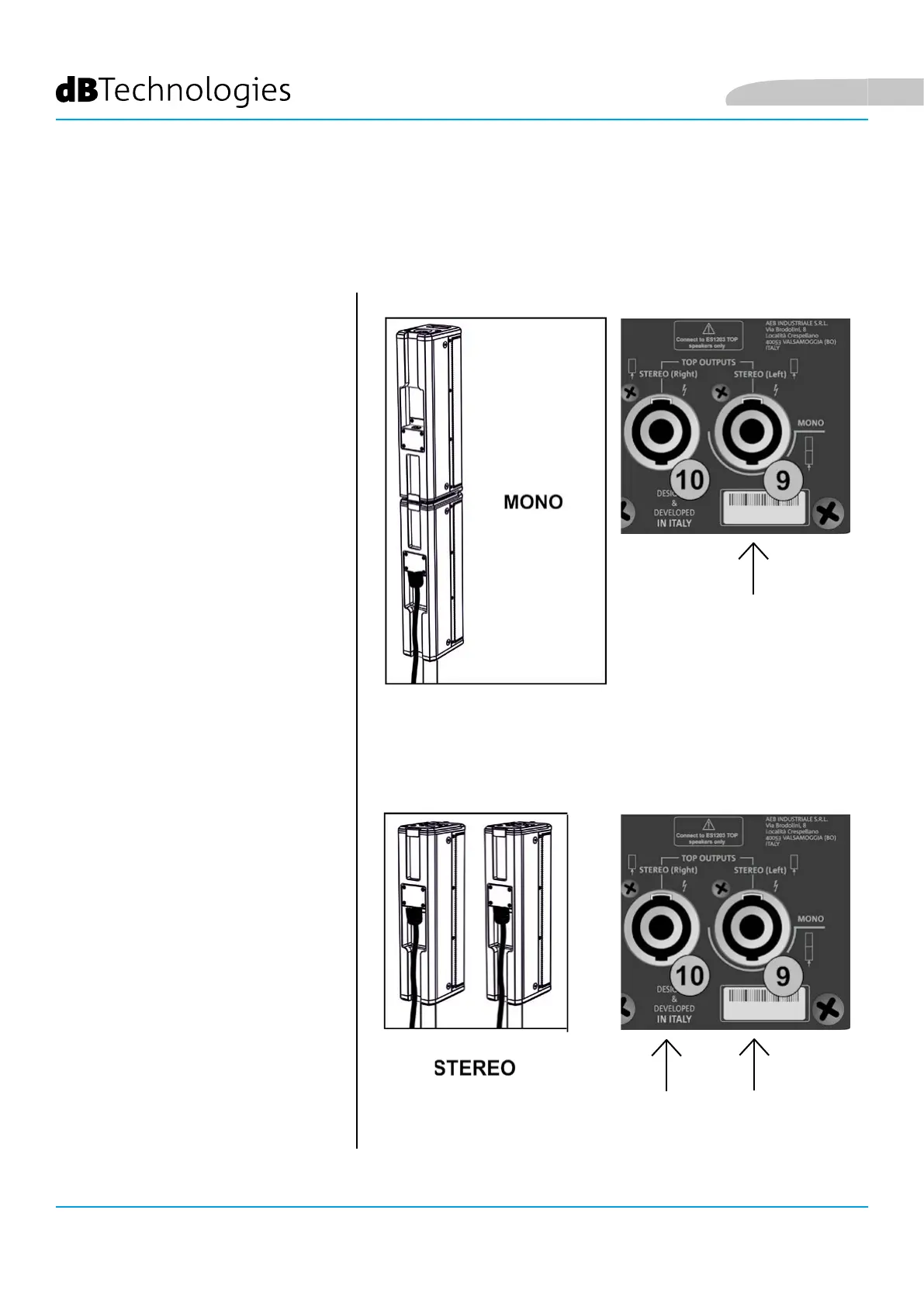

MONO CONFIGURATION
When using a STEREO conguration:
• Insert each top onto its own
pole (e.g. using the SK 36 TT kit)
• Use the two 7 m cables
provided.
• Connect each top as shown
• Connect the left cable connector
[9] and the right cable
connector [10] to the subwoofer.
• Use the clips provided to secure
the cables to the telescopic poles
STEREO CONFIGURATION
