ES-1203 Cod. 420120253 REV. 1.0

MONITOR

ES 1203

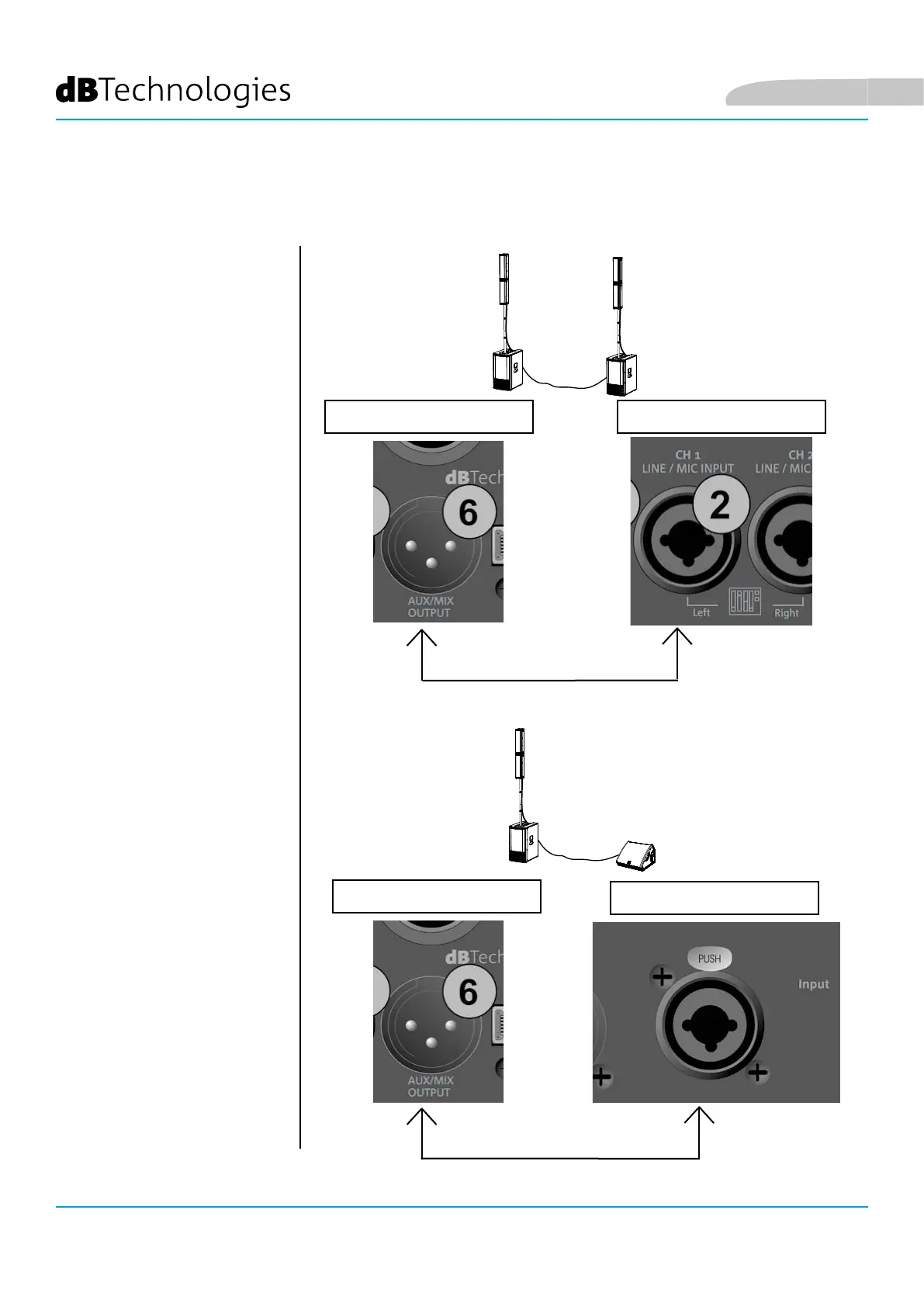

CONNECTING THE SYSTEM OUTPUT

To send the audio to a second

ES1203 system (DOUBLE

COLUMN conguration):

• Connect output connector

[6] on the rst ES1203

to the CH1 Left input [2]

• To set stereo operation (left

and right) and the output

levels and parameters,

refer to chapter 4: QUICK

AND MIXER CONTROLS.

FIRST SYSTEM SECOND SYSTEM

DOUBLE COLUMN STEREO

CONFIGURATION (MIX)

OUTPUT (AUX)

To send the audio to

another amplied diffuser:

• Connect output connector

[6] on the rst ES1203

to the Input on the

second amplied diffuser.

• To set the levels and

parameters, refer to

chapter 4: QUICK AND

MIXER CONTROLS.

English
