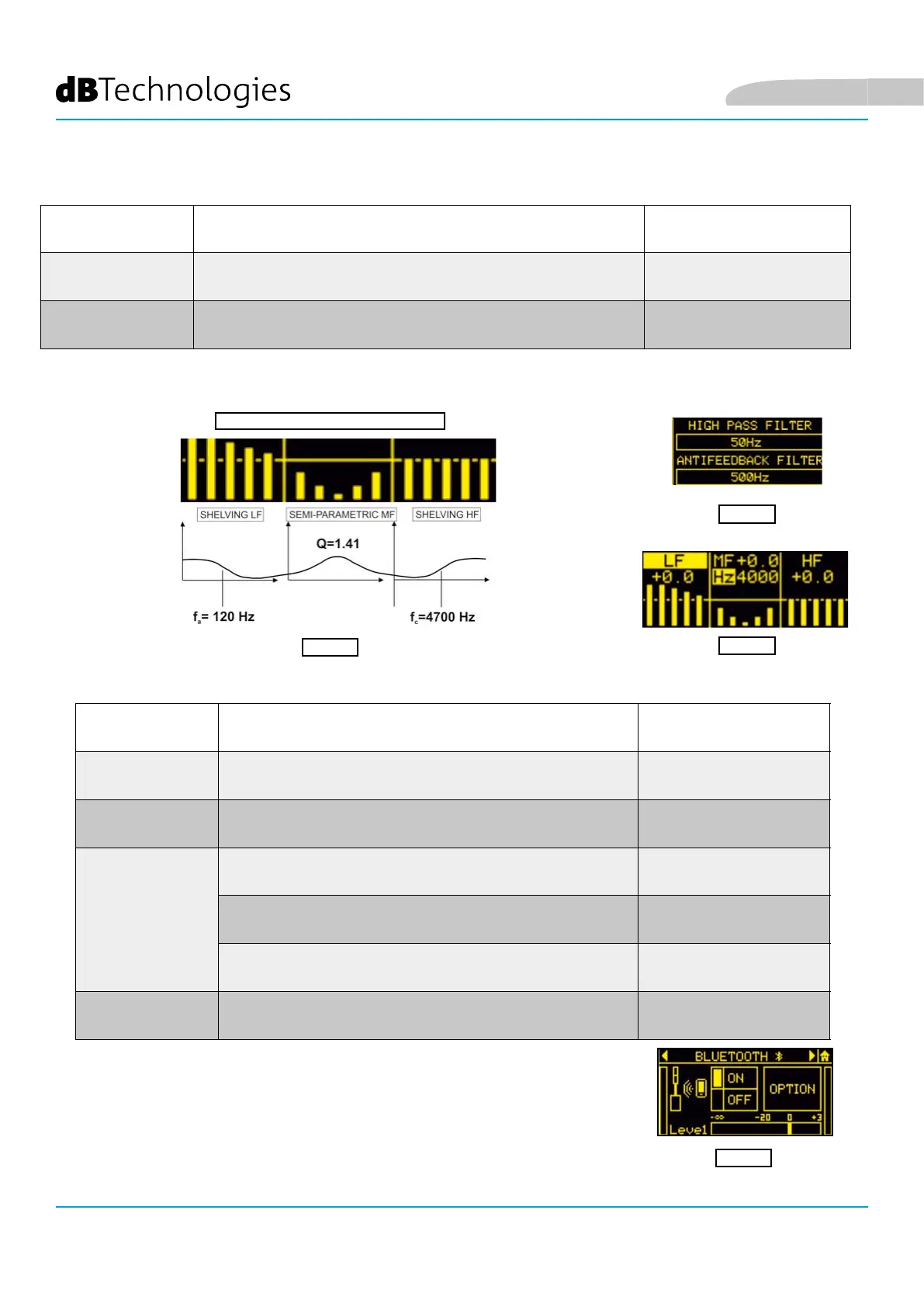

The stereo BLUETOOTH® channel sub page (gure 10) lets you set:
Specically, you can select the following lters from the EQ submenu (gures 7, 8, 9):
Figure 10
Figure 8
Figure 7
E. Select and conrm the MENU box to access the extended MENU (see the
EXTENDED SETTINGS MENU chapter)
Figure 9
INSTRUMENT/ LINE FILTER
INPUT FILTER TYPE RANGE
MIC
HIGH PASS (HP) / ANTIFEEDBACK
HIGH PASS (HP): 50 ÷ 200 Hz
ANTIFEEDBACK: 500 ÷ 12000 Hz
INSTRUMENT/LINE
LF: SHELVING / MF: SEMIPARAMETRIC / HF: SHELVING
LF/HF: -6 ÷ 4 dB
MF: -6 ÷ 4 dB
150 ÷ 4000 Hz (CENTER-FREQUENCY)
NAME PARAMETER RANGE
ON/OFF
RECEIVER ON/OFF ON/OFF
LEVEL
OUTPUT LEVEL (SENT TO THE INTERNAL MIXER) -∞ ÷ 3 dB
OPTION
GAIN (INPUT GAIN) 0 ÷ 15 dB
NAME (BLUETOOTH® SYSTEM NAME)
16 ALPHANUMERIC CHARACTERS
PASSWORD (BLUETOOTH® SYSTEM PASSWORD) 4 NUMERIC DIGITS
AUX
AUXILIARY SEND MIXER (NOT AVAILABLE IN DOUBLE COLUMN
CONFIGURATION)
-∞ ÷ 3 dB
SEE THE INPUT AND AUX MIXERS
PARAGRAPH
