dCS 954 User Manual Manual for Standard Software Version 1.5x
dCS Ltd June 2000
Manual part no: DOC136954 iss 2B1
Page 35
file 135954ma2b1.pdf available from website
Contact
dCS
on + 44 1799 531 999 email to: more@dcsltd.co.uk
(inside the UK replace + 44 with 0) web site: www.dcsltd.co.uk
Upsampling a CD
PUSH PUSH PU SH
AES1 AES2 AES CLK
CH1 CH2 CLK
AES1 AES2 AES CLK
SPDIF1 SPDIF2 SPDIF3 SYNC IN CH1 CH2 CLK
AES / EBU
Inputs
SPDIF
Inputs
SDIF-2 Inputs
SDIF-2 Outputs
AES / EBU
Outputs
SPDIF
Outputs
MAINS FUSE 2A(T) ON OFF
Remote
In
Out
16bit /
44.1kS/s
Dual AES up to
24 bit / 192kS/s
AES 1 AES 2 AES 3 AES 4
AES/EBU Outputs
Wordclock Outputs
1 2 3 4 5 6
7 8 9 10 11 12
External
Sync
Remote
In
Loop
Out
Mains Fuse (2AT)
On Off
more@dcsltd.co.uk
PUSH
DIGITAL OUT
AES REF
L
R
Hand Crafted by
The Red Hot CD Player Co.
WORDCLOCK
IN
dCS 992
dCS 954
PUSH PUSH PUSH PU SH PUSH
Analogue
CH1(L) CH2(R) Sensitivity
CH1(L) CH2(R)
Digital I/O
Reference In Reference Out AES1 AES2 AES3 AES4 CH1 CH2
In Out
SDIF-2/DSD
75R
Clk
Remote
In
Out
MAINS FUSE 2A(T) ON OFF
Balanced
Outputs
Unbalanced
Outputs
dCS 972
44.1kS/s
Word Clock
- or -
To pre or power amplifier

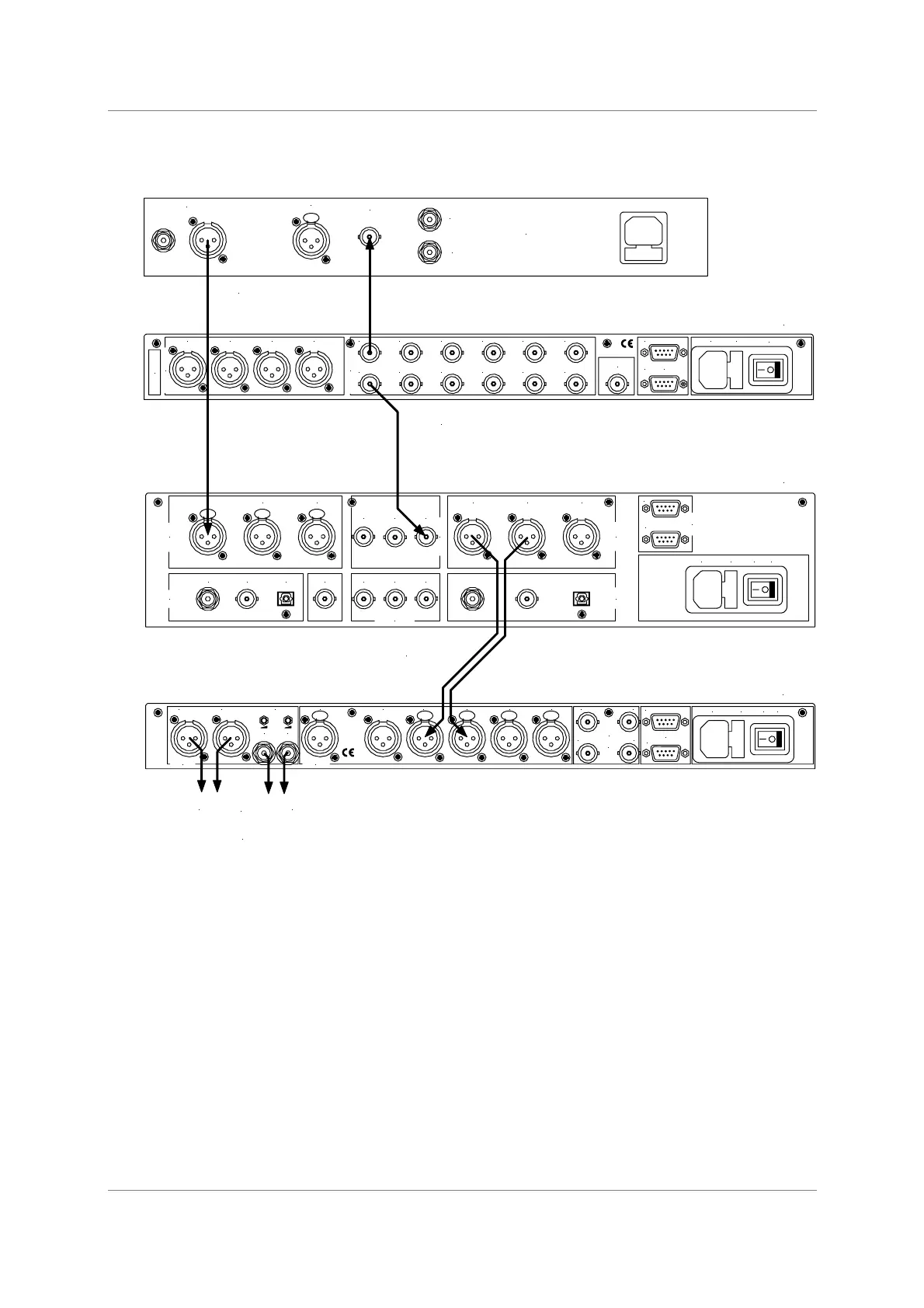

Figure 14 – Upsampling a CD to 24 bit / 192kS/s
do this: Set the dCS 972 Input Frequency to Auto, Output Frequency to
192kS/s, Output Mode to Dual AES, Sync Source to Word Clock.
do this: Set the dCS 954 to Dual AES on AES1 & 2, Mute to Off and select a filter.
IMPORTANT!
DO NOT lock the dCS 954 to the dCS 992 or the audio output will be full
scale noise!
The Master Clock is optional – it helps reduce jitter. If you don’t have a Master
Clock, you can slave the dCS 972 to the CD player by setting Sync Source to
Audio Input.
