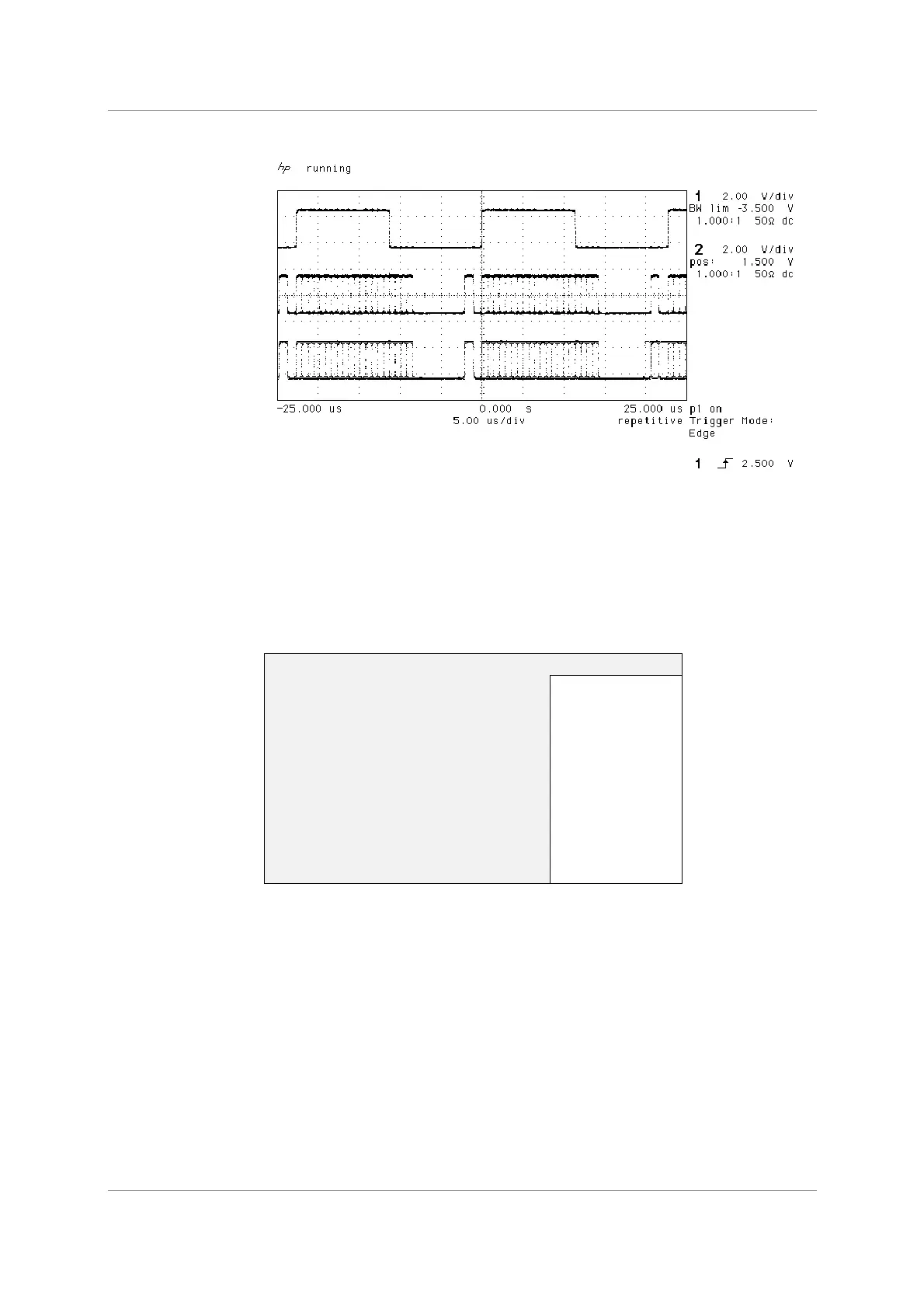

Figure 32 – SDIF-2 PCM format at 96 kS/s
Figure 33 – SDIF-2 PCM format at 44.1 kS/s
SDIF-2 Messaging -
The SDIF-2 message details are defined in the table following.
DESCRIPTION Definition
Undefined 0000 0xxx
Emphasis
No emphasis
Emphasis (15µsec, 50µsec)
xxxx x00x
xxxx x01x
Dubbing Prohibit
Dubbing allowed
Dubbing inhibited
xxxx xxx0
xxxx xxx1
Block Code
Start of block
Not start of block
xxxx xxxx 1...
xxxx xxxx 0...
Table 11 – SDIF-2 Messages
