Replaying 24/192 from 2 Nagra-D recorders
PUSH PUSH PU SH PUSH PUSH
Analogue
CH1(L) CH2(R) Sensitivity
CH1(L) CH2(R)
Digital I/O
Reference In Reference Out AES1 AES2 AES3 AES4 CH1 CH2
In Out
SDIF-2/DSD
75R
Clk
Remote
In
Out
MAINS FUSE 2A(T) ON OFF
Balanced
outputs
Unbalanced
outputs
- or -
To pre or power amplifier
dC S 954
Ch1 Ch2
CH4 CH3 CH2 CH1 DIG3+4 DIG1+2
OUTPUTS
NAGRA D
CH4 CH3 CH2 CH1 DIG3+4 DIG1+2
OUTPUTS
NAGRA D
Timecode
Link
Quad AES
24/192
Recorder 1 with L channel data
Recorder 2 with R channel data

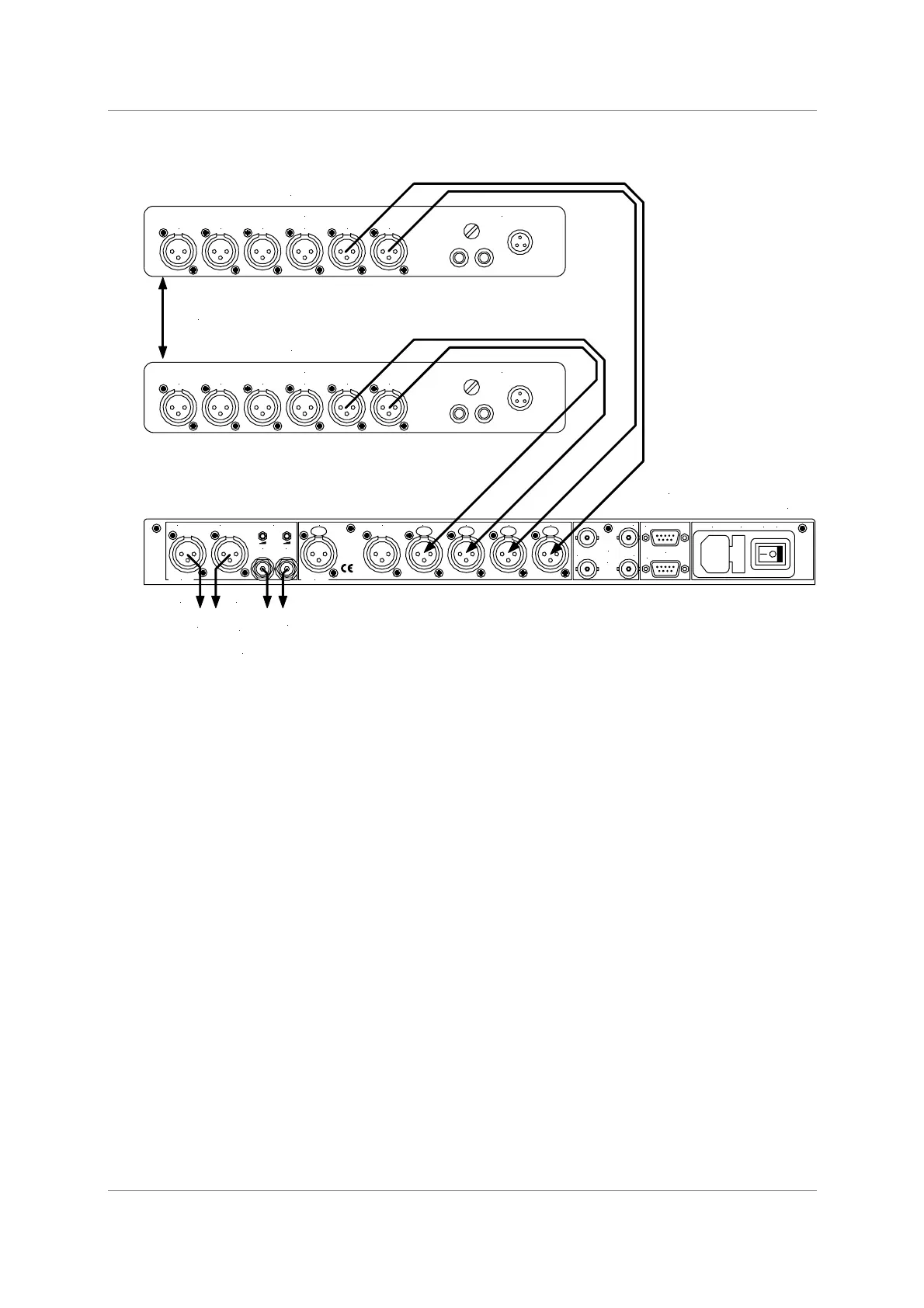

Figure 17 – Replaying 24/192 from 2 Nagra-D recorders.
Quad AES 24/192 recordings split between 2 tapes may be played back as
shown. The 2 Nagra-D recorders must be fitted with special hardware and
software to achieve this – contact Nagra for details. The dCS 954 allows for small
timing discrepancies between the AES1/2 pair and the AES3/4 pair.
