Converting Quad AES to Single AES
Single AES
96kS/s
PUSH PUSH PU SH PUSH PUSH
Analogue
CH1(L) CH2(R) Sensitivity
CH1(L) CH2(R)
Digital I/O
Reference In Reference Out AES1 AES2 AES3 AES4 CH1 CH2
In Out
SDIF-2/DSD
75R
Clk
Remote
In
Out
MAINS FUSE 2A(T) ON OFF
Quad AES
192kS/s
dC S 954

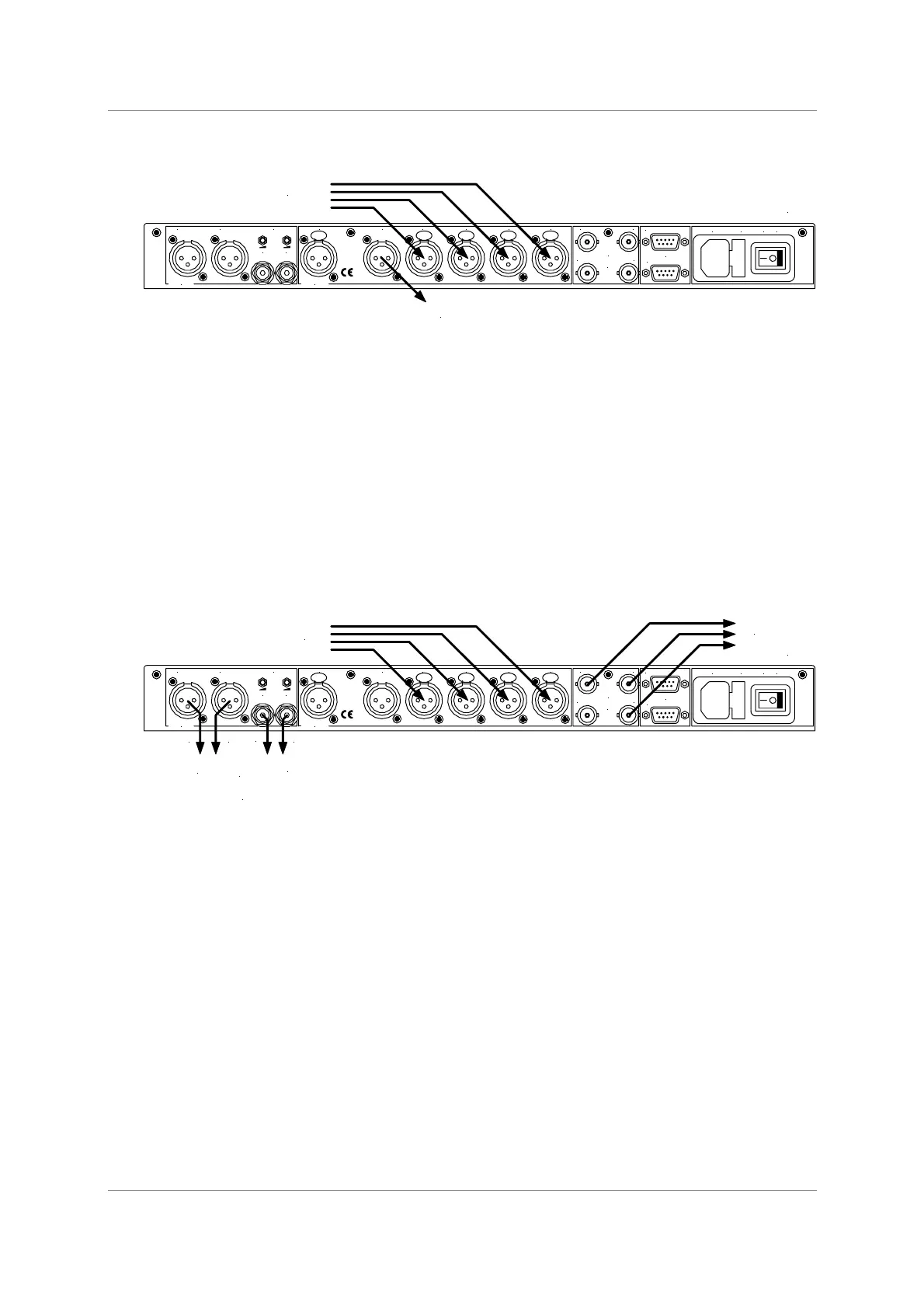

Figure 15 – Converting Quad AES to Double speed Single AES
do this: Select Quad AES and set the Ref In menu item to ddC.
IMPORTANT!
While the unit is performing a sample rate conversion, the analogue outputs
are muted.
The unit will also convert 176.4kS/s to 88.2kS/s.
Converting 4-wire DSD to SDIF DSD
PUSH PUSH PU SH PUSH PUSH
Analogue
CH1(L) CH2(R) Sensitivity
CH1(L) CH2(R)
Digital I/O
Reference In Reference Out AES1 AES2 AES3 AES4 CH1 CH2
In Out
SDIF-2/DSD
75R
Clk
Remote
In
Out
MAINS FUSE 2A(T) ON OFF
4-wire
DSD
Balanced
outputs
Unbalanced
outputs
- or -
To pre or power amplifier
L R
L
R
dC S 954
DSD
Figure 16 – Converting 4-wire DSD to SDIF DSD
do this: Set the dSd menu item to On and press AES1 to select 4-wire DSD
operation.
do this: Set the Ref In menu item to ddC.
do this: Select a filter and ensure Mute is off.
