24 Removing and Replacing FRUs

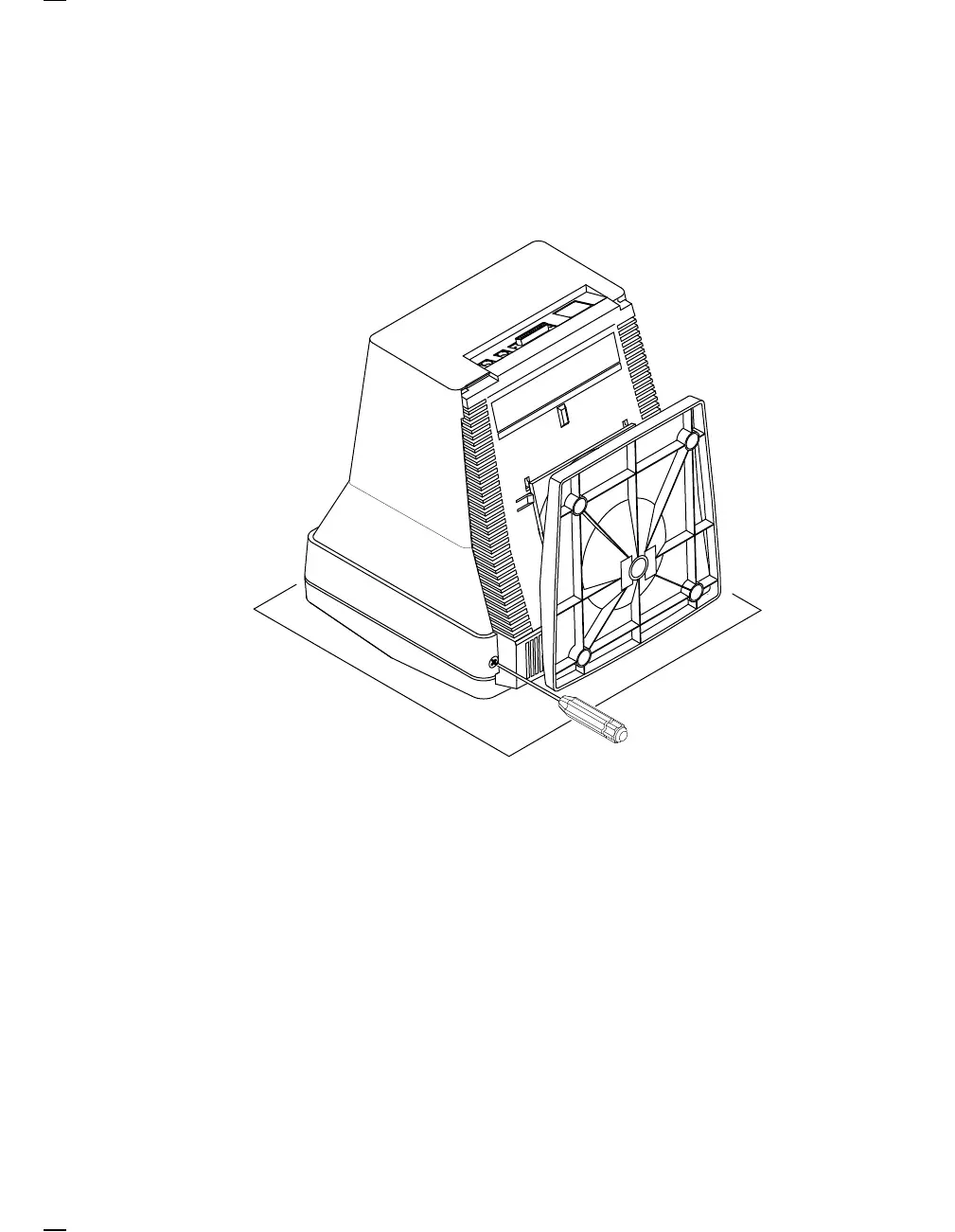

3. Loosen the two captive screws at the base of the bezel so the screws
extend out from the top cover.
GSF_1439_89.DG
4. Grasp the rear of the top cover firmly with one hand. Place your other
hand securely on the base assembly.
5. With your hands in position, push down on the base assembly and
pull the top cover away from the base. Place the cover aside.
