Accessories
so


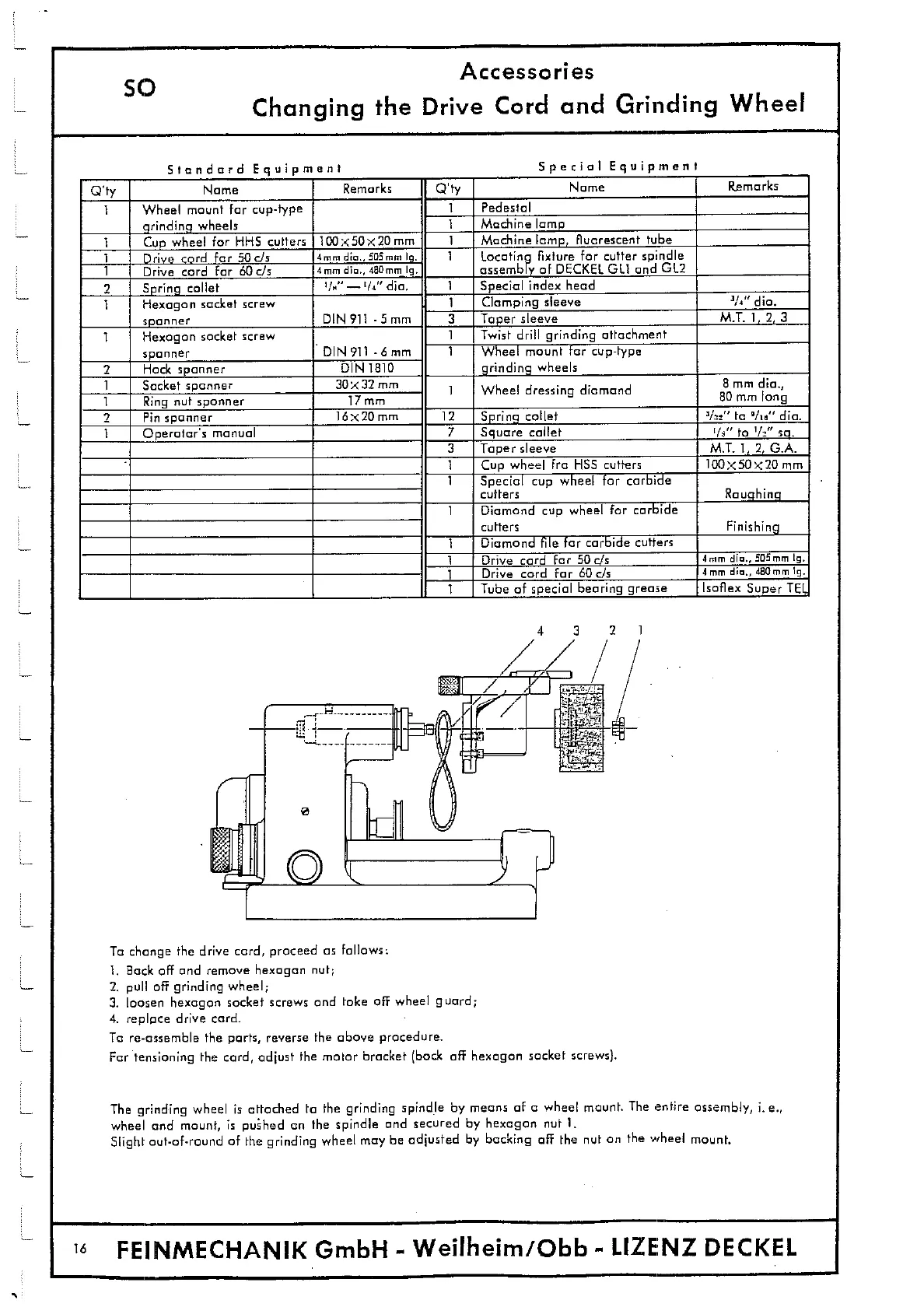

Changing the Drive Cord and Grinding Wheel
4  3 
2  1
To change the drive cord, proceed as follows:
1.
Bock off and remove hexagon nut;
2. pull off grinding wheel;
3.
loosen hexagon socket screws and take off wheel guard;
4.
replpce drive cord.
To re-assemble the parts, reverse the above procedure.
For tensioning the cord, adjust the motor bracket (bock off hexagon socket screws).
The grinding wheel is attached to the grinding spindle by means
of a wheel mount. The entire assembly, i.e.,
wheel and mount, is puThed on the spindle and secured by hexagon nut 1.
5light out-of-round of the grinding wheel may be adjusted by backing off the nut on the wheel mount.
16
