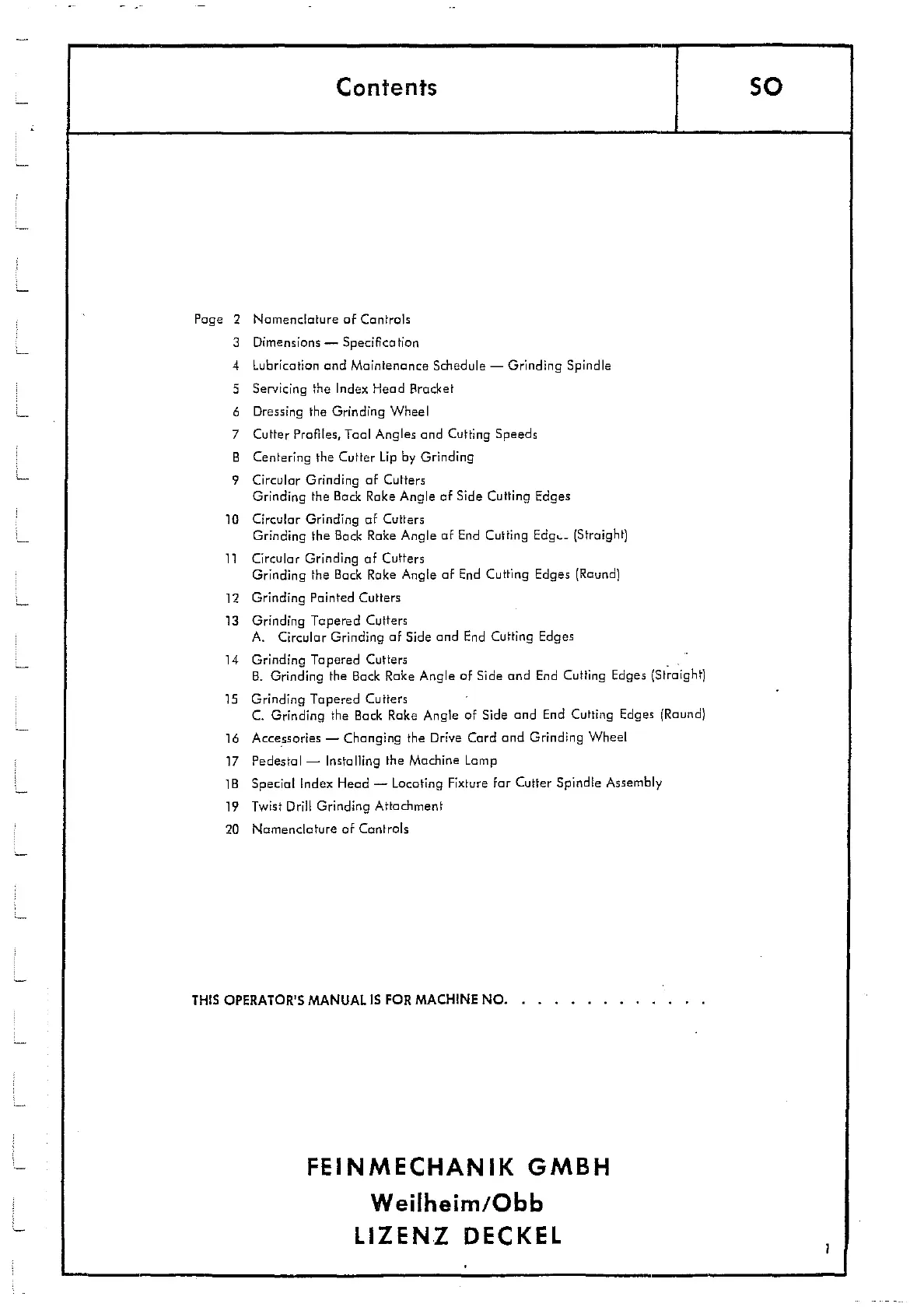

DECKEL SO - Table of Contents

-  I 
Contents 
I
 so
Page 2 Nomenclature of Controls
3 Dimensions - Specification
4 Lubrication and Maintenance Schedule - Grinding Spindle
5 Servicing the Index Head Bracket
6 Dressing the Grinding Wheel
7 Cutter Profiles, Tool Angles and Cutting Speeds
B Centering the Cutter Up by Grinding
9 Circular Grinding of Cutters
Grinding the Back Rake Angle of Side Cutting Edges
10 Circular Grinding of Cutters
Grinding the Back Rake Angle of End Cutting EdgL_ (Straight)
11 Circular Grinding of Cutters
Grinding the Bock Rake Angle of End Cutting Edges (Round)
12 Grinding Pointed Cutters
13 Grinding Tapered Cutters
A. Circular Grinding of Side and End Cutting Edges
14 Grinding Tapered Cutters
B. Grinding the Back Rake Angle of Side and End Cutting Edges (Straight)
15 Grinding Tapered Cutters
C. Grinding the Bock Rake Angle of Side and End Cutting Edges (Round)
16 Accessories - Changing the Drive Cord and Grinding Wheel
17 Pedestal - Installing the Machine Lamp
18 Special Index Head - Locating Fixture for Cutter Spindle Assembly
19 Twist Drill Grinding Attachment
20 Nomenclature of Controls
THIS OPERATOR'S MANUAL IS FOR MACHINE NO............
FEINMECHANIK GMBH
Weilheim/Obb
LIZENZ DECKEL

