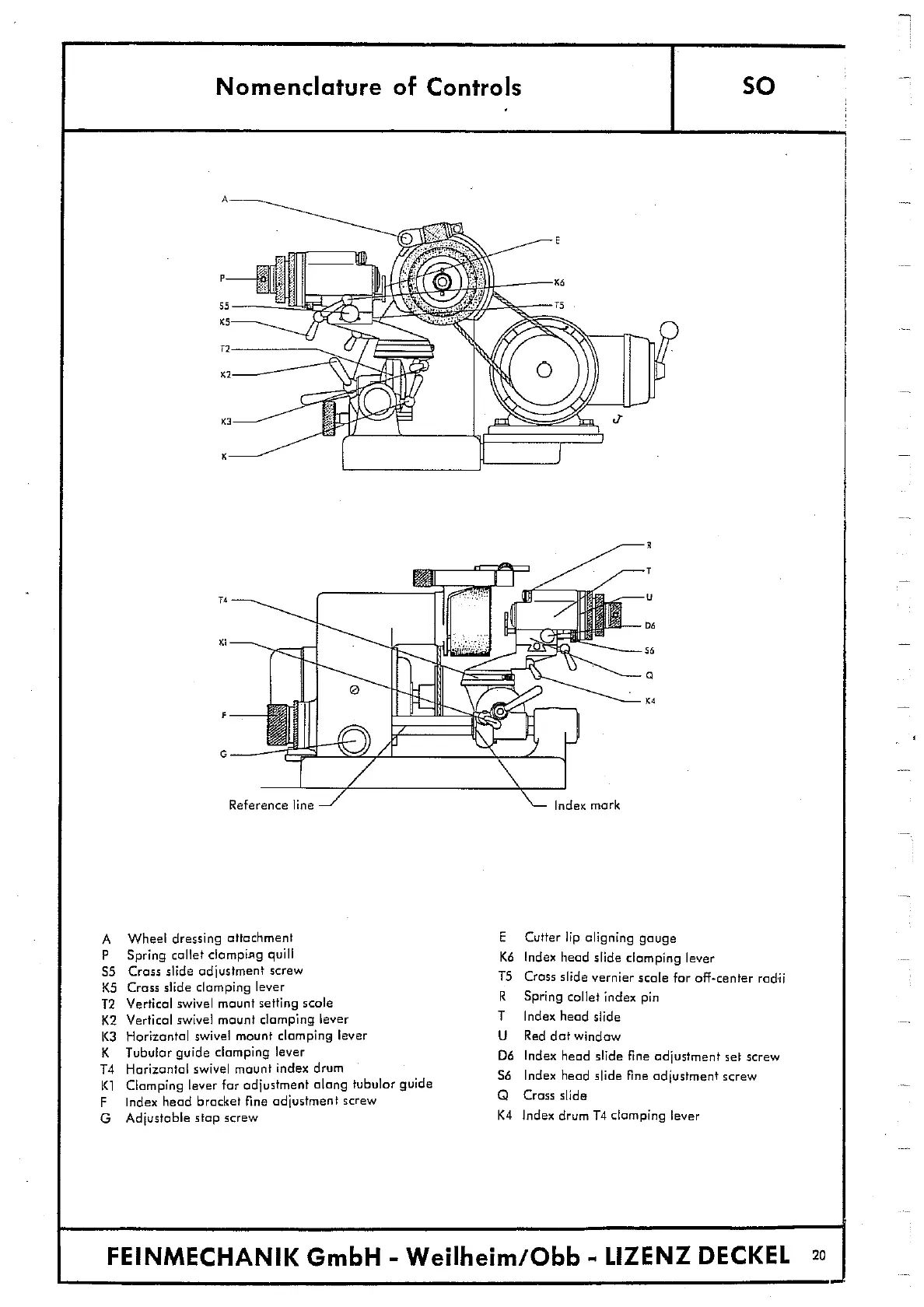

DECKEL SO - Nomenclature of Controls

Nomenclature of Controls
so
A Wheel dressing attachment
P 
Spring collet clomping quill
55 Cross slide adjustment screw
KS Cross slide clamping lever
12 Vertical swivel mount setting scale
K2 Vertical swivel mount clamping lever
K3 Horizontal swivel mount clamping lever
K Tubular guide clamping lever
T4 Horizontal swivel mount index drum
Ki Clamping lever for adjustment along tubular guide
F Index head bracket fine adjustment screw
0 Adjustable stop screw
E  Cutter lip aligning gauge
K6 Index head slide clomping lever
15 Cross slide vernier scale for off-center radii
R  Spring collet index pin
T Index head slide
U Red dot window
06 Index head slide fine adjustment set screw
56 Index head slide fine adjustment screw
Q Cross slide
K4 Index drum T4 clamping lever
FEINMECHANIK GmbH - Weilheim/Obb - LIZENZ DECKEL
20
