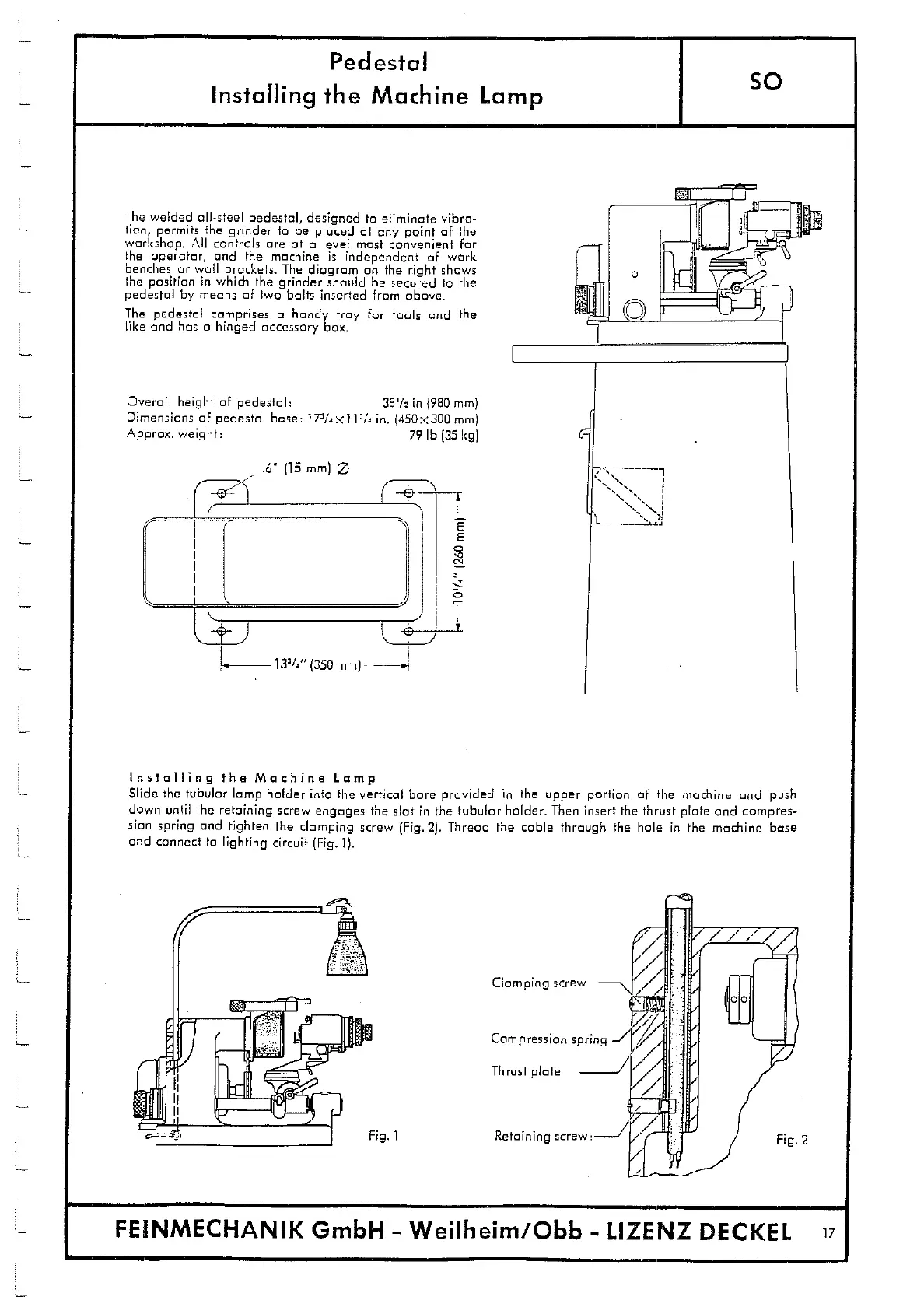

Pedestal
Installing the Machine Lamp
so
The welded all-steel pedestal, designed to eliminate vibra-
tion, permits the grinder to be placed at any point of the
workshop. All controls are at a level most convenient for
the operator, and the machine is independent of work
benches or wall brackets. The diagram an the right shows
the position in which the grinder should be secured to the
pedestal by means of two bolts inserted from above.
The pedestal comprises a bandy tray for tools and the
like and has a hinged accessory box.
Overall height of pedestal:
3872
in
(980
mm)
Dimensions of pedestal base: 17'14:< 1 1 Vt in.
(450x300
mm)
Approx. weight:
79
lb
(35
kg)
.6 (15 mm)
Installing the Machine Lamp
Slide the tubular lamp holder into the vertical bore provided in the upper portion of the machine and push
down until the retaining screw engages the slot in the tubular holder. Then insert the thrust plate and compres-
sion spring and tighten the clomping screw (Fig. 2). Thread the cable through the hole in the machine base
and connect to lighting circuit (Fig. 1).
fl
Clomping scre
Compression sj
Thrust plate
Retaining scre
2
FEINMECHANIK GmbH - Weilheim/Qbb - LIZENZ DECKEL
17
