DECKEL SO - Nomenclature of Controls

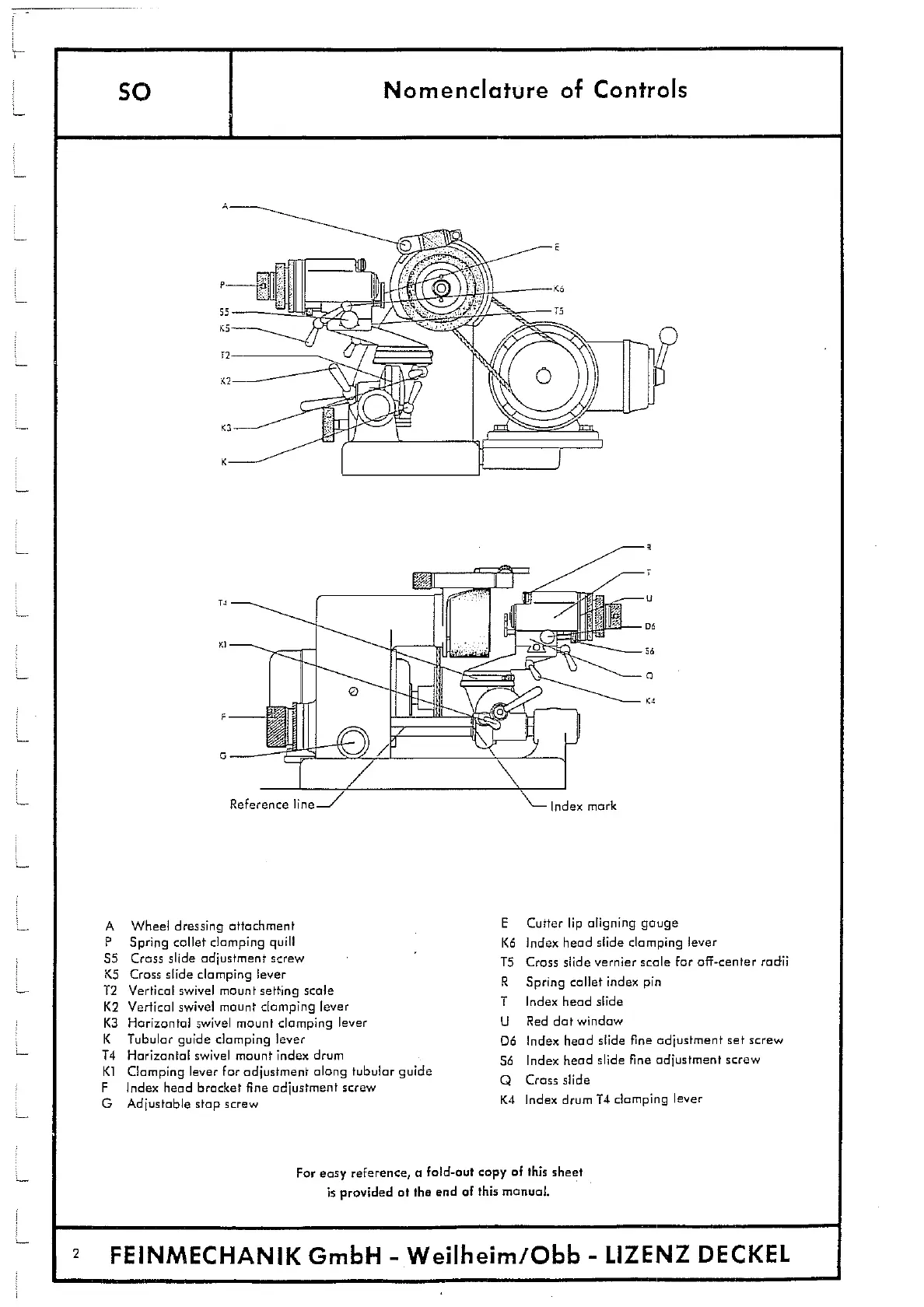

Nomenclature of Controls
U
KI
0
A Wheel dressing attachment
P Spring collet clamping quill
55 Cross slide adjustment screw
KS Cross slide clamping lever
12 Vertical swivel mount setting scale
K2 Vertical swivel mount clamping lever
K3 Horizontal swivel mount clomping lever
K Tubular guide clomping lever
T4 Horizontal swivel mount index drum
Ki Clomping lever for adjustment along tubular guide
F Index head bracket fine adjustment screw
G Adjustable stop screw
E 
Cutter lip aligning gouge
K6 Index head slide clamping lever
T5 Cross slide vernier scale for aft-center radii
R  Spring callet index pin
T Index head slide
U Red dot window
06 Index head slide fine adjustment set screw
56 Index head slide fine adjustment screw
Q Crass slide
K4 Index drum 14 clamping lever
For easy reference, a fold-out copy of this sheet
is provided at the end of this manual.
2
FEINMECHANIK GmbH - Weilheim/Obb - LIZENZ DECKEL
