Exterior Wall
Window Design

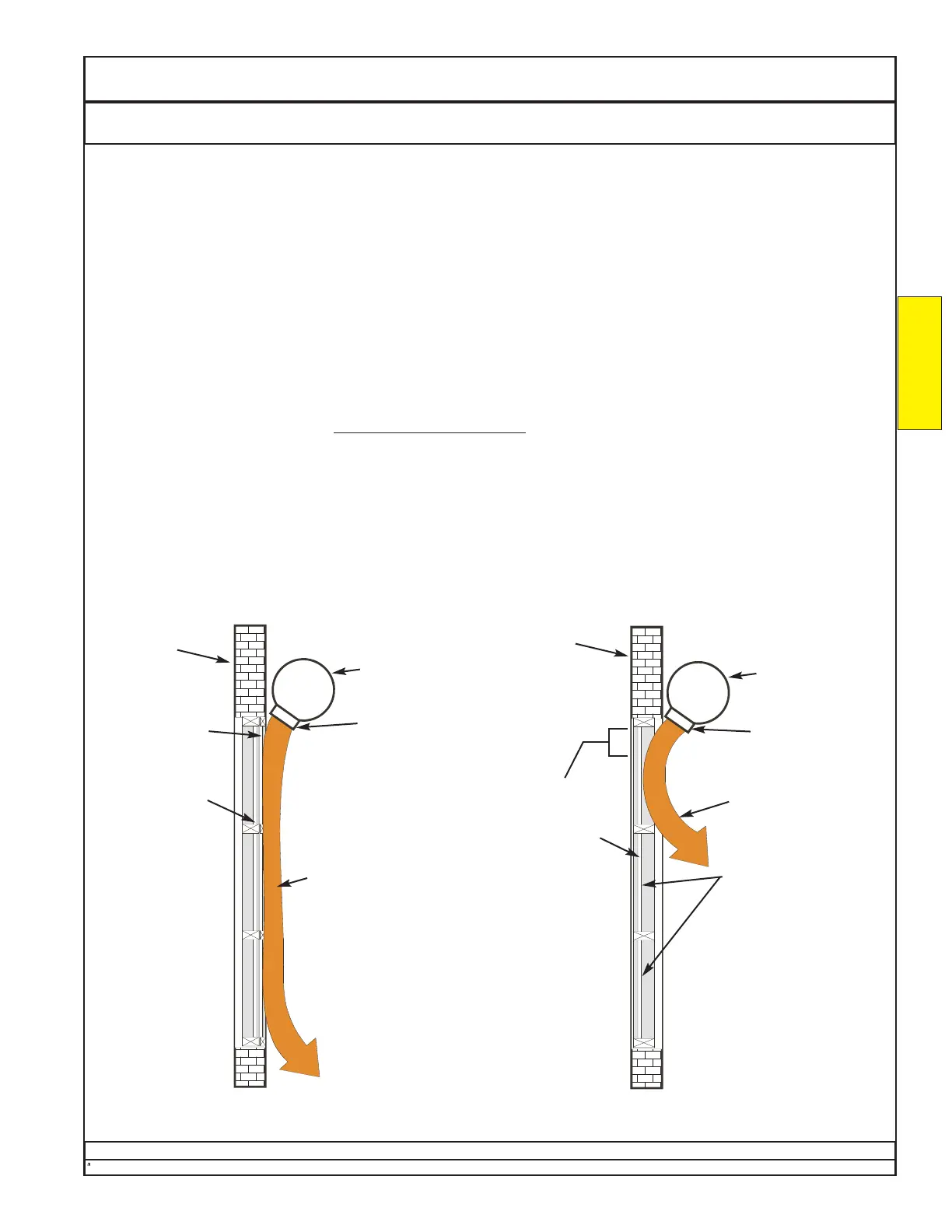

Special attention must be paid to the exterior glass components such as windows and patio doors. Due to their
low insulation values, windows are usually the building element with the lowest inside-surface temperature. In
cold climates, windows and exterior glass doors should
1. be double-paned or even triple-paned (to reduce heat transfer through the glass),
2. have frames with thermal breaks (to reduce heat transfer through the frames), and
3. be glazed to the inside of frames and walls (to allow smooth airflow along the inner surfaces).
Even a triple-pane window can have an inside-surface temperature below the room dew point. The entire sur-
face area of exterior windows MUST be blanketed with warm supply air from the perimeter air-distribution system
to raise the window’s inside surface temperature above the dew point and thus prevent condensation. Windows
must be designed to allow unobstructed air movement on the inside surface. Avoid windows with panes recessed
to the outside. Avoid heavy window frames which protrude to the inside. Both of these prevent proper air move-
ment and result in condensation.
See “Coanda effect” in ASHRAE Handbook of Fundament
als.
Other building elements which create thermal bridges must either be avoided or be blanketed with warm air to
prevent condensation damage. Skylights are especially vulnerable to condensation, since precipitation falling on
the skylight causes rapid cooling and a direct warm-air supply can be difficult to achieve.
BUILDING
CONSTRUCTION
21
