In some installations, a unit may have to go through a short door to reach the final destination.

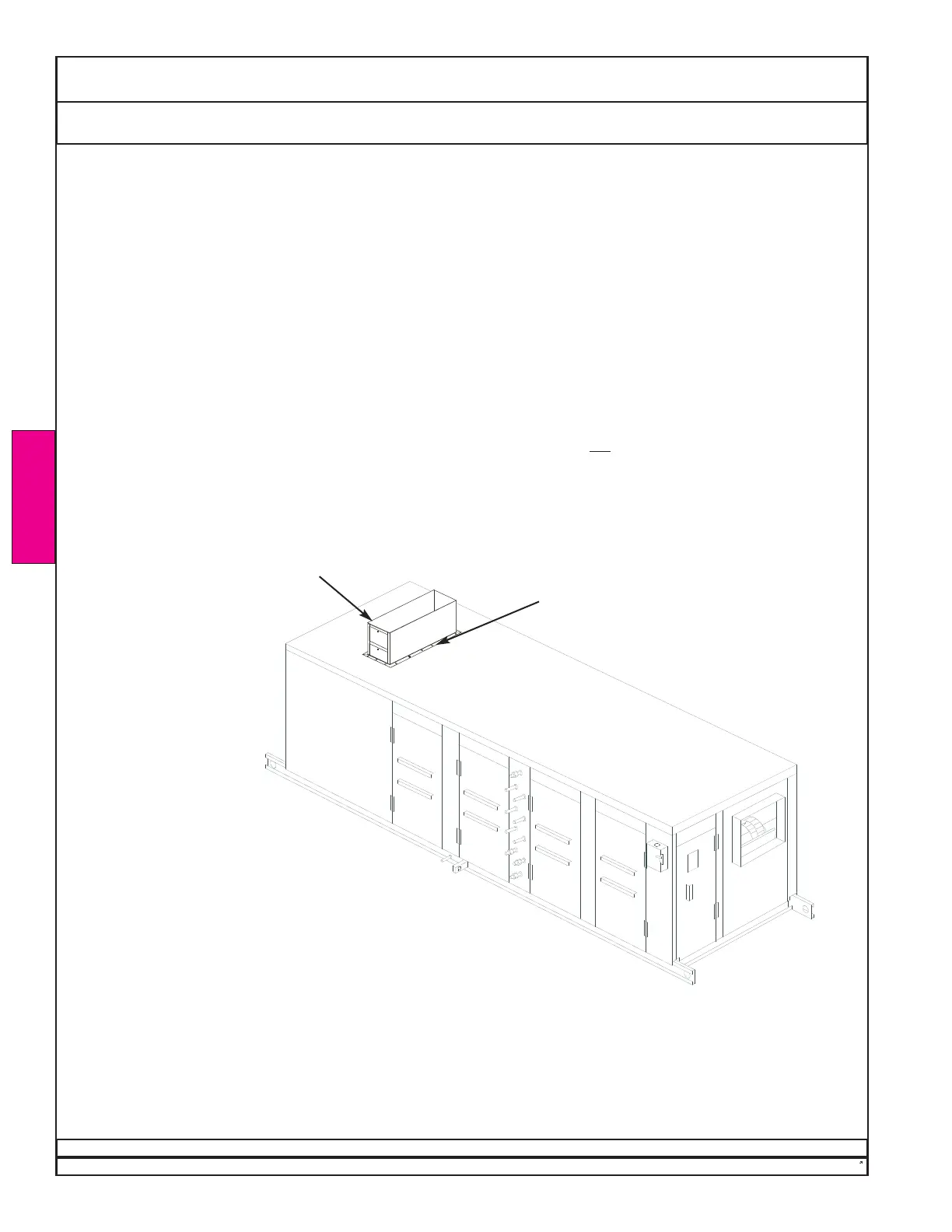

For indoor units with horizontal cabinets, outdoor-air filter boxes may be mounted on top of the unit, as shown
below, or may be shipped separately. The filter box can be temporarily removed to reduce the overall height.
NOTE: The outdoor-air filter box may ship separately.
If the outdoor-air filter box includes an electrically operated damper, the wires may be left disconnected from the
factory. In this case, the wires will be marked for connection in the field. If the wires were connected at the factory,
they must be located and disconnected. Mark the wires for re-connection.
Remove and retain the box-flange screws to remove the filter box. Carefully remove the filter box.
After the doorway has been passed:
1. Remount the filter box, using all box-flange screws. New caulk may be required.
NOTE: Take care not to cross-thread the screws.
NOTE: It may be necessary to seal or tape the flange.
2. Reconnect actuator wires as necessary.
NOTE: Units so equipped must have the outdoor-air filter box installed. Do not
allow outdoor air to enter the return
duct of an operating unit.
Dectron, Inc. March 2012
DECTRON
DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owner’s Manual
Lifting and Locating Door Clearances
Data subject to change without notice.
58
outdoor-air
connection and
damper
box-flange
screws (all
around)
Sample
Actual appearance
may vary.
Temporary disassembly of filter boxes by methods described in the DRY-O-TRON® owners manual does not affect
the DRY-O-TRON® warranty, except that:
1. The cost of labor required to dis-assemble and re-assemble parts, components, and/or assemblies is not covered
by the warranty.
2. The cost of repair or replacement due to any loss or damage to the filter box, filters, dampers, actuators, sensors,
heat exchangers, wiring, fasteners, or other affected parts or assemblies resulting from such dis-assembly and/or
re-assembly, whether functional or cosmetic, is not covered by the warranty.
LIFTING AND
LOCATING
