DECTRON
Dectron, Inc. March 2012
DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owner’s Manual
Building Construction Remote Condenser or DryCooler Location
Data subject to change without notice.
28
NOTE 1: The clearance in front of the electrical enclosure must be at least the greatest of:
a) twice the width of a fan, or
b) (Canada) the greater of 1 meter or the distance specified by CEC 2-238, or
c) (U.S) the greater of 36 inches (230V condensers), 42 inches (460V condensers), or the
distance specified by NEC 110-26, or
d) the distance specified by other applicable code.
For further information, see Lifting and Locating -
Select Remote Condenser Location.
DRY-O-TRON ®
MODEL #:
SERIAL #:
I.D.
D
ELECTRICAL RATING
460 V ac, 3 ph, 60 Hz
COMPRESSOR LRA RLA
COMPRESSOR LRA RLA
COMPRESSOR LRA RLA
COMPRESSOR LRA RLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
COND. FAN MOTOR HP FLA
COND. FAN MOTOR HP FLA
PUMP MOTOR HP FLA
ENTHALPY MOTOR HP FLA
ELECTRIC HEATER kW A
Max. L.A.T. (°F)
SERVICE POWER
SPACE HEATING COIL
PSIG Max.
MCA A MAX. FUSE/CKT. BKR.*
15
A
*(HACR type per NEC)
R-22 FACTORY CHARGE
lbs
AIR VOLUME CFM
BELT SIZE
WIRING DIAGRAM
REFRIGERANT DESIGN PRESSURES: HIGH/LOW 300/150 PSIG
COMFORMS TO ANSI/UL STD 1995
CERTIFIED TO STD CAN/CSA-
C22.2 NO. 236
LR 45671
FABRIQUÉ AU CANADA / MADE IN CANADA
REF.:
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AIR TEMP.: °F R.H.: %
R-22 TOTAL SYSTEM CHARGE:
lbs
OIL TO BE ADDED AT START-UP:
oz
OIL TYPE:
MAX. LENGTH OF REF. LINES (ONE WAY) ft
BETWEEN D.O.T. & REMOTE CONDENSE R:
LINE SIZE:
AIR COOLED COND. MODEL #:
HOT GAS: in
LIQUID: in
50379
minimum
12 in. (30 cm)

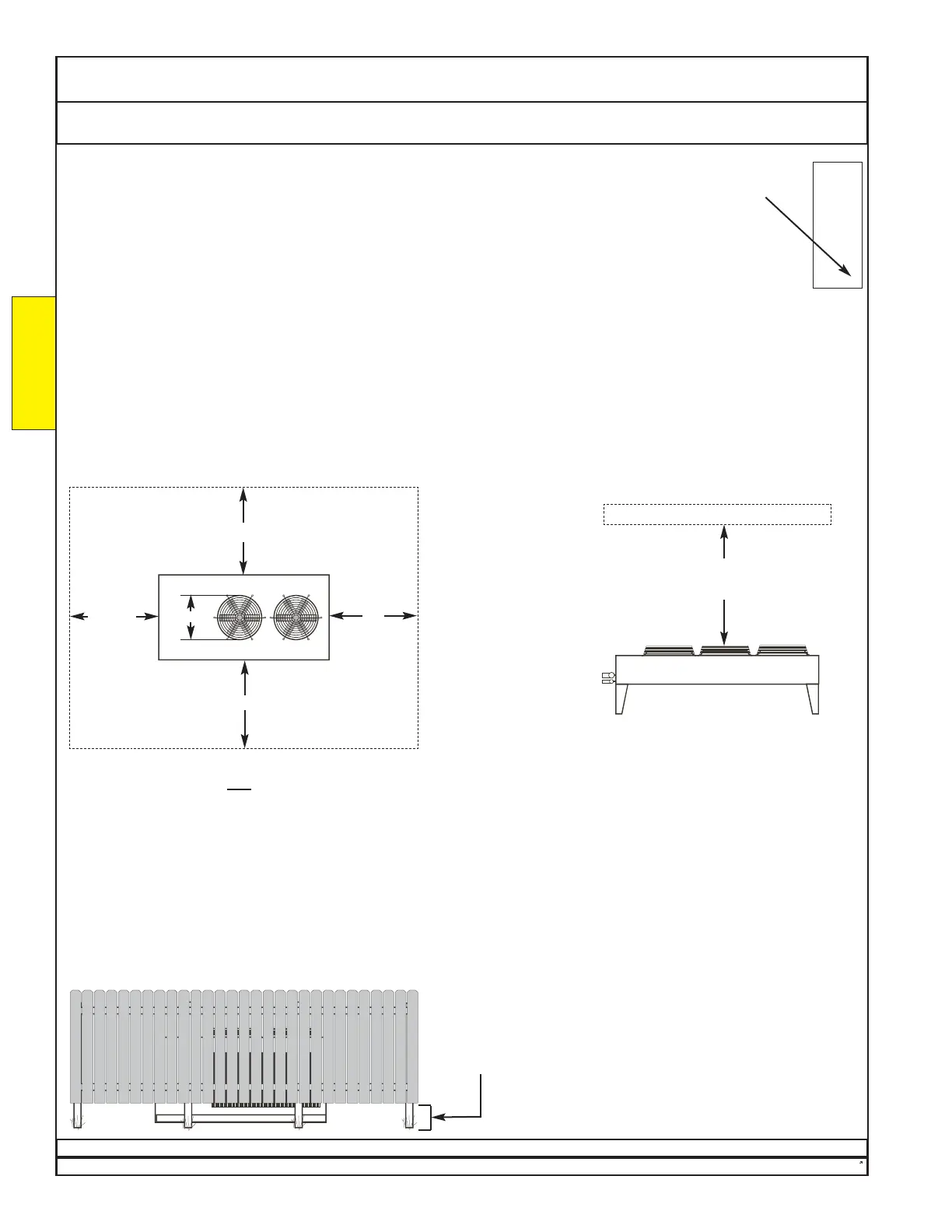

The condenser should not
be enclosed within a
solid fence or wall, or in a pit, since such structures
promote recirculation of air. If a solid fence or wall
must be installed, it must be no closer to the con-
denser than “2W” (twice the width of the condenser
fan) shown above, and must not extend lower than
12 inches (30 cm) above grade. Fences lower
than 12 inches above grade may cause recircula-
tion of heated air and a corresponding reduction in
performance.
Vegetation under a fence must be kept short.
2W
2W
W
2W
any overhanging obstruction
Top View
Side View
NOTE 1
The length of the tubes connecting the remote air-cooled condenser to the DRY-O-TRON
®
must not
exceed that shown on the DRY-O-TRON
®
nameplate (See Product Description - Unit Nameplate.)
Select a suitable location for the condenser, where
(a) it will not be subject to damage from traffic, falling ice, or vandalism,
(b) it will not be in the vicinity of steam, hot air, or fume exhausts, and
(c) where airflow will not be impeded by accumulations of ice, snow, lint, etc.
Any supporting structure must be suitable for the weight of the condenser. Spacing requirements are
also subject to applicable electrical codes.
minimum
10 ft
(3 m)
Sample
Actual appearance
may vary.
Sample
Horizontal condenser
shown. Concept
applies to all models.
BUILDING
CONSTRUCTION
To Next Page
