DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owner’s Manual
Data subject to change without notice.
54
Lifting and Locating Select Air Handler Location
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AIR TEMP.: °F R.H.: %
R-22 TOTAL SYSTEM CHARGE:
lbs
MAX. LENGTH OF REF. LINES (ONE WAY) ft
If assistance is needed, have
model, serial number, and Ref.
number (below) before calling.
Ref number
Name plate
on corner
Horizontal Indoor Unit
Vertical Indoor Unit
Outdoor Unit
Name plate on
corner spar or
inside weather door
Name plate
on corner

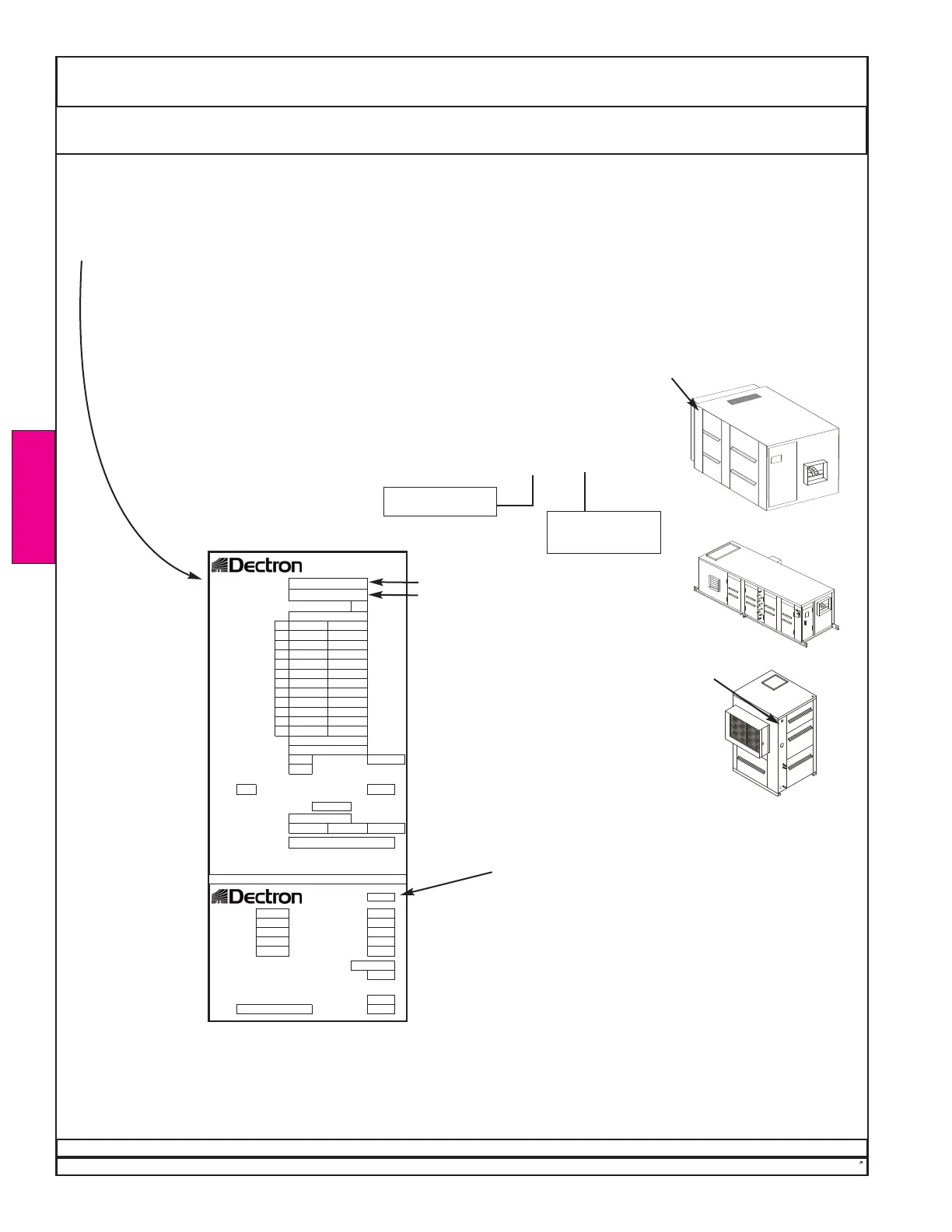

Model Nomenclature:
ixxx-sss-v
D = indoor cabinet
R = outdoor cabinet
Nominal moisture
removal capacity in
lbs./hr.
Refer to the unit nameplate as shown below.
Note the unit model number on the nameplate.
Units with a model number beginning in the letter “D” must be installed indoors, protected from the weather,
direct sunlight, and freezing temperatures. These units must be located in a room with an air-temperature
range of 70°F (21°C) to 90°F (32°C) and a relative-humidity range of 10% to 80%.
Units with a model number beginning with the letter “R” may be
installed indoors or outdoors. “R” units do not have the above
temperature and humidity limitations.
LIFTING AND
LOCATING
NOTE: In this discussion, “i”, “xxx”, “sss”, and “v”
are placeholders. Your nameplate will
have the proper values for your unit.
