Overhead Installation Air Handler Lifting and Locating
If the air handler unit must be located overhead, then:
1. The space must not contain corrosive-chemical storage, or connect to any space that contains corrosive-
chemical storage.
2. The space must not include a natatorium or spa room, or any space where the exterior of the unit would
be exposed to chloramines outgassing from a pool.
3. A mezzanine floor should be constructed to allow the minimum service access. (See earlier page.)
4. Minimum straight lengths of duct are required. See Installation - Ducting on subsequent page.
Service clearances are
required. See Lifting
and Locating - Select
Air Handler Location.
Safety switches, safety
valves, fall protection, pipes,
conduits, etc., are not shown
and are by others.
Sound and vibration
absorbers are important.
See Lifting and Locating
- Unit Support &
Vibration Isolation.
adequate building
structural member
Support system
should include twist
and racking braces.

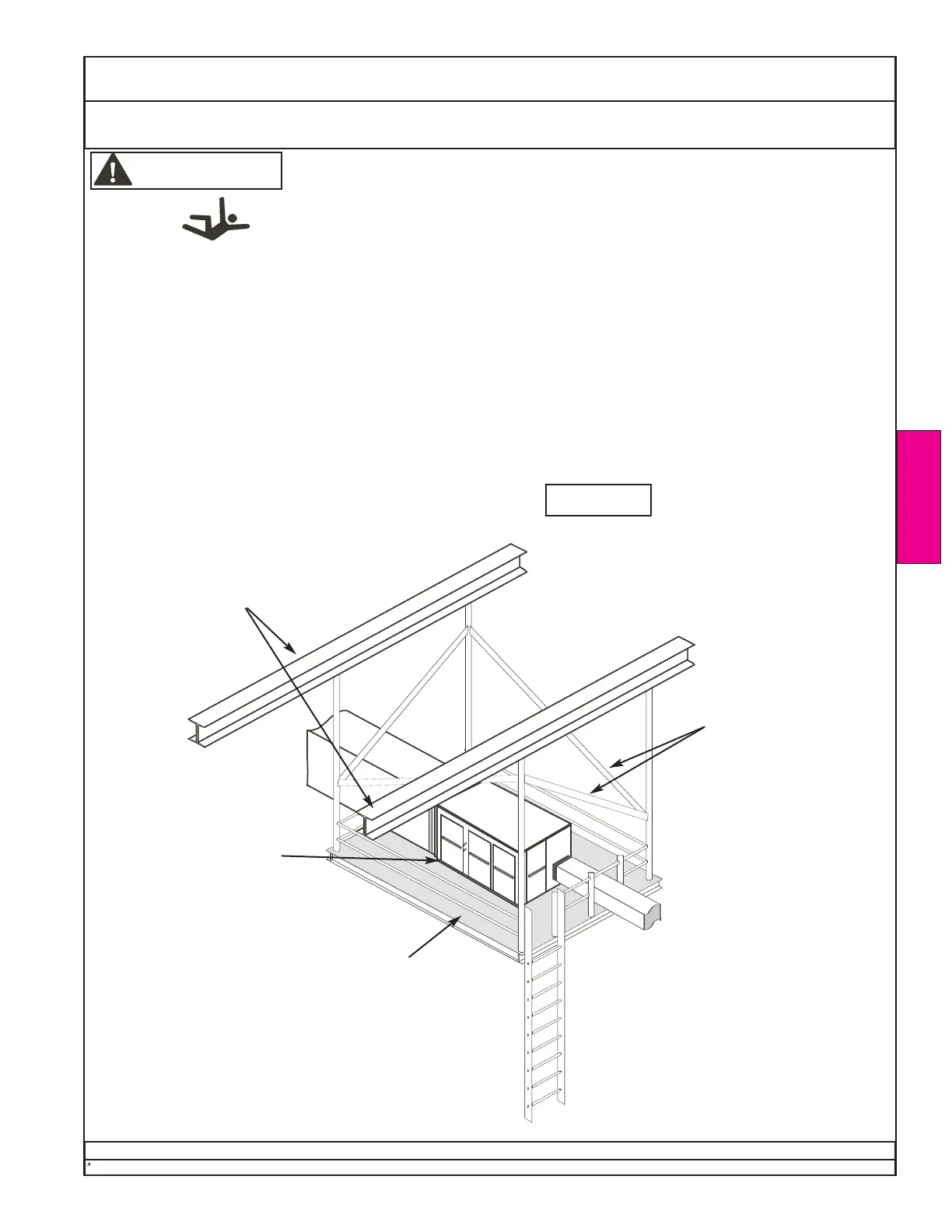

This diagram is for illustration
only, and is not suitable for
any particular purpose. A
qualified structural engineer
should design any support
system, including fall
protection.
SAMPLE ONLY
NOT SUITABLE FOR
CONSTRUCTION
LIFTING AND
LOCATING
NOTICE
Risk of falling. Can cause injury or death.
Depending on the size and location of this product, some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death by falling.
Designs should include adequate service and maintenance access. Use fall-
protection equipment as appropriate.
