DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Pre-Assembly Installation
Data subject to change without notice.
75

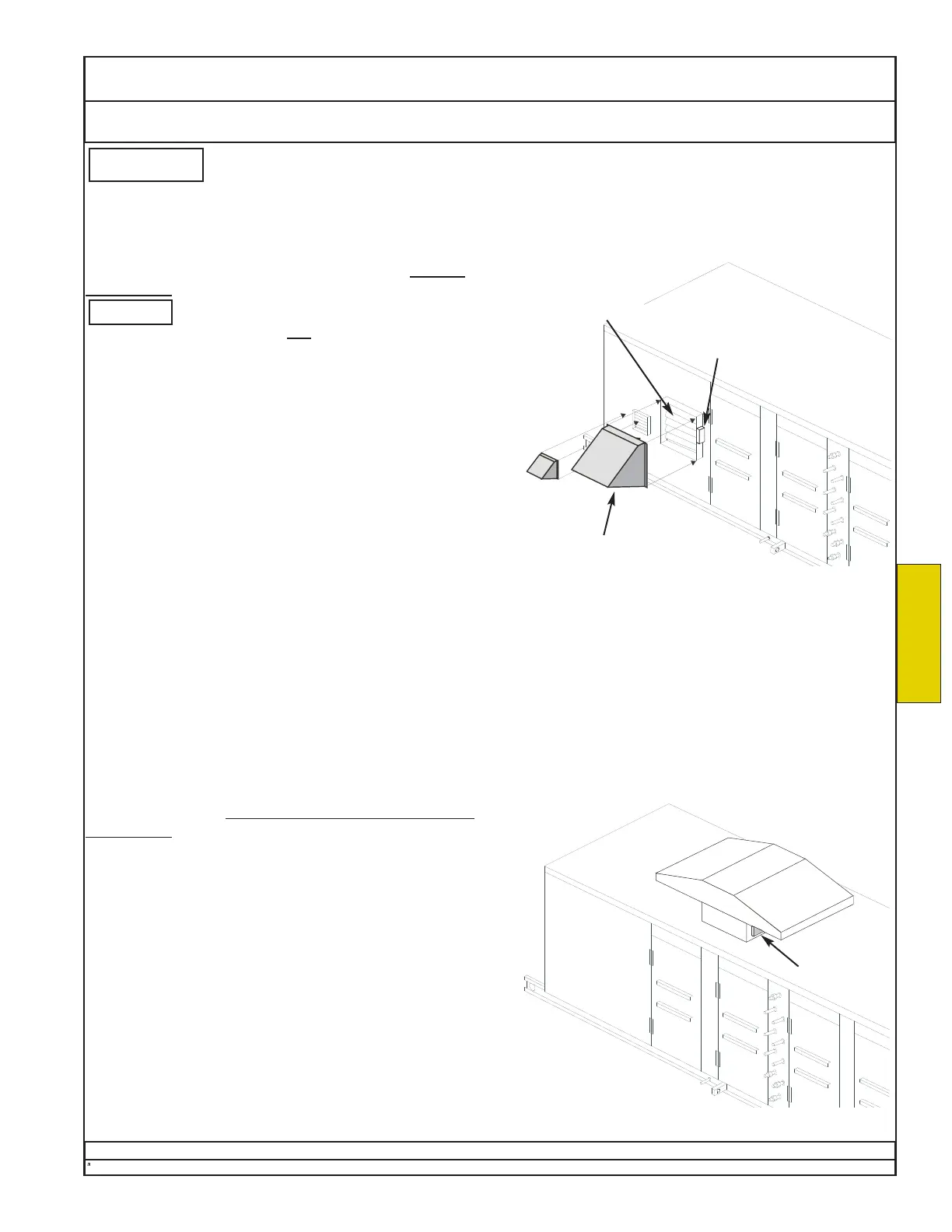

On units having hoods, duct ports, or outdoor-air preheaters,
these devices and any associated dampers and actuators may
ship separately. Where this is the case, these must be
installed first.
Risk of property damage.
Install hoods as shown. Do not install hoods upside down.
Set the heater or damper/actuator assembly on sawhorses or
other sturdy platform near the unit. Locate and splice the
wires in the assembly to the corresponding wires in the unit.
Be sure to match the wire numbers.
Note that it may be difficult to repair wiring after a duct or
hood is installed.
Slide the assembly into place, securing it with screws and
sealant.
NOTE: Use care with screw selection and placement to
prevent interference with damper movement in
any part of its stroke.
After these assemblies are wired and mounted, attach any
hood with screws and sealant. Duct attachment will be
covered later.
Damper
Actuator
Hood
Sample
Layout and
appearance
may vary.
On units having top hoods, the hood and its associated pre-
heater, dampers, and actuators may ship separately. Where
this is the case, the damper/actuator assembly must be
installed first.
Locate and splice wires in the assemblies to the
corresponding wires in the unit. Be sure to match the wire
numbers.
Note that it may be difficult to repair wiring after the hood is
installed.
Secure the assemblies with screws and sealant.
Move the hood into place, securing it with screws and
sealant.
NOTE: Use care with screw selection and placement to
prevent interference with damper movement in
any part of its stroke.
Actuator
Hood
Sample
Layout and
appearance
may vary.
INSTALLATION
NOTICE
Optional Equipment - Some units may have hoods to prevent the entry of rain, ice, snow, etc.
Such hoods, if any, may be shipped separately.
Optional Equipment - Some units may have outdoor-air preheaters by Dectron. Such heaters, if
any, may be shipped separately.
NOTICE
4.7
