Domestic Hot Water override
A bar is displayed when a DHW override is activated:
4 Flashing bar: Temporary override
4 Steady bar: Permanent override
n
Other information
r
The symbol is displayed when domestic hot water
production is running
w
Valve indicator: The symbol is displayed when a 3-way
valve is connected
4 x : 3-way valve open
4 c : 3-way valve closed
M
The symbol is displayed when the pump is operating
Name of the circuit for which the parameters are displayed
3.3.3. Browsing in the menus

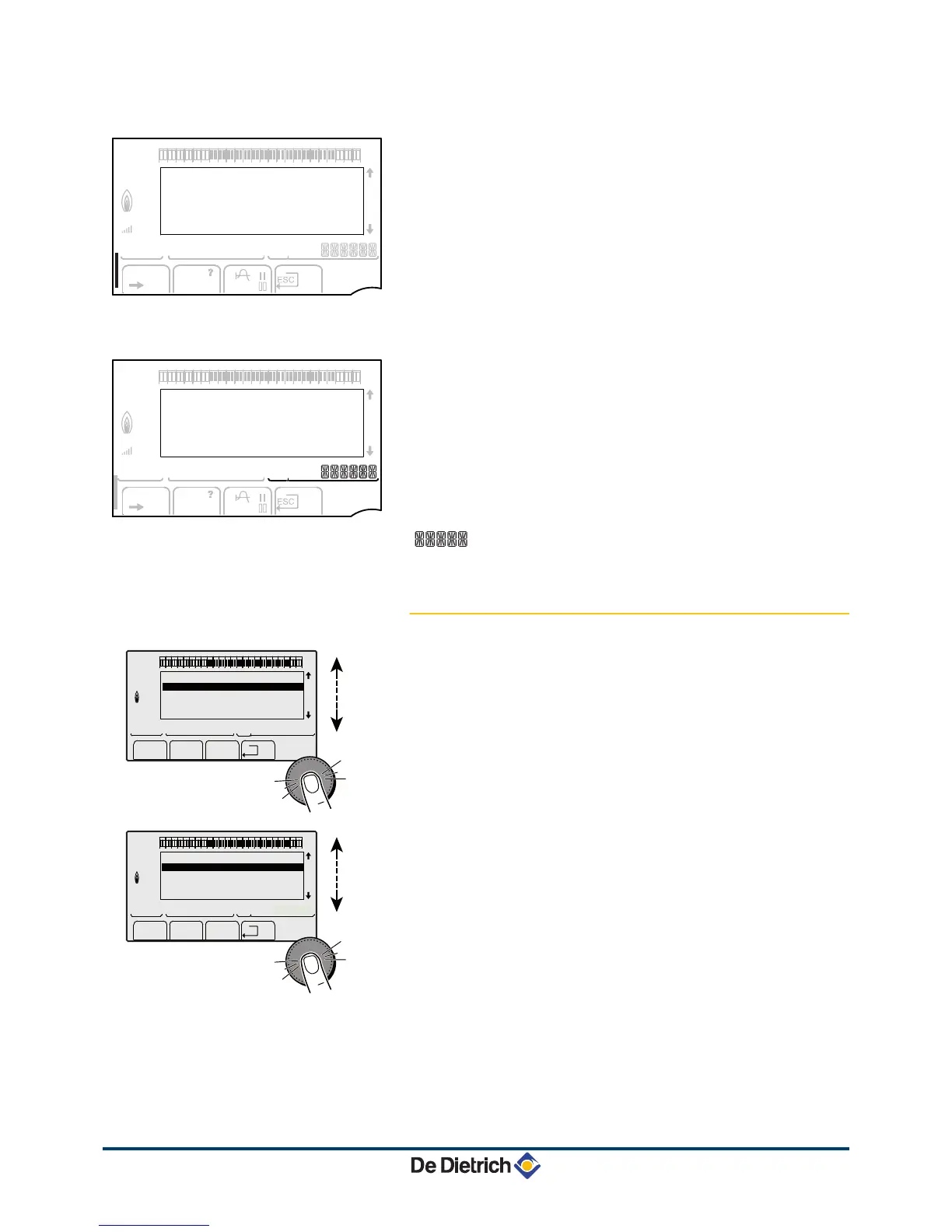

1. To select the desired menu, turn the rotary button.
2. To access the menu, press the rotary button.
To go back to the previous display, press the key
j
.
3. To select the desired parameter, turn the rotary button.
4. To modify the parameter, press the rotary button.
To go back to the previous display, press the key
j
.
bar
STD
t
0 2 4 6 8 10 12 14 16 18 22 2420
C002707-A
p
b
AUTO
x c
r
j
M
g
m
bar
STD
t
0 2 4 6 8 10 12 14 16 18 22 2420
C002699-B
p
b
AUTO
x c
r
j
M
g
m
bar
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x c
r
j
L
g
m
#MEASURES
#CHOICE TIME PROG.
#TIME PROGRAM
#SETTING
#TIME .DAY
ÿ
C002220-A-04
bar
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x c
r
j
L
g
m
CURRENT PROG.B
CURRENT PROG.C
P2
P3
ÿ
C002221-B-04
