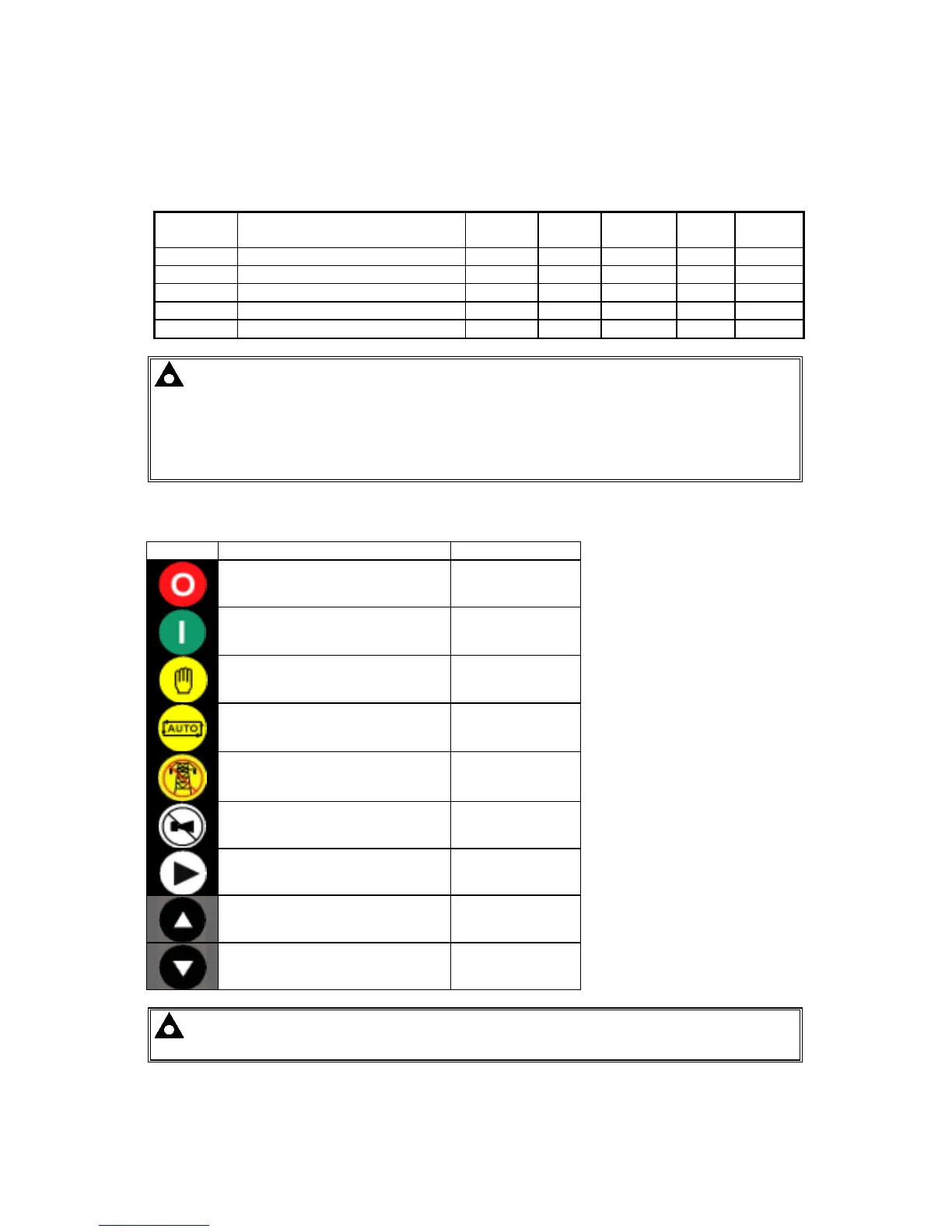

GenComm Page 11 - Diagnostic – General
Registers
These are all read only registers.
Register
offset
Name Min
value
Max
value
Scale
factor
Units Bits/
Sign
0 Software version 0 9999 0.01 16
1 CPU power usage 0 200 1 % 16
2 Button number pressed, 0=none 0 255 1 16
3 Backup supply voltage 0 40 0.1 V 16
4-255 Reserved
NOTE:- Register offset 2 (Button number pressed) contains the index of the last
control module button that was pressed. Ie returned value of 416 indicates that the
last button pressed was the Start button. This does not necessarily mean that the
button is being pressed now!
To read what mode the module is currently in, read the value of Control Mode from
GenComm page3.
Module control buttons
Button Description Button Number
Stop/Reset 420
Start (when in Man / Test mode) 416
Manual Mode 424
Auto Mode 428
Test Mode 417
Alarm mute / lamp test 421
Change page 425
Up 418
Down 429
NOTE:- The TEST button (number 417) is not present on the 550 or 5210 remote
start control module.
