DSE Model 5320 Automatic Mains Failure & Instrumentation System Operators Manual
Part No. 057-014 5320 OPERATING MANUAL ISSUE 5.1 18/06/2007 ADM 21
Deep Sea Electronics
Model 5220
O
I
+
AUTO
i
Warming 10s
L-N 240V 0A 50Hz
L-L 415V 0kW
RUNNING IN AUTO

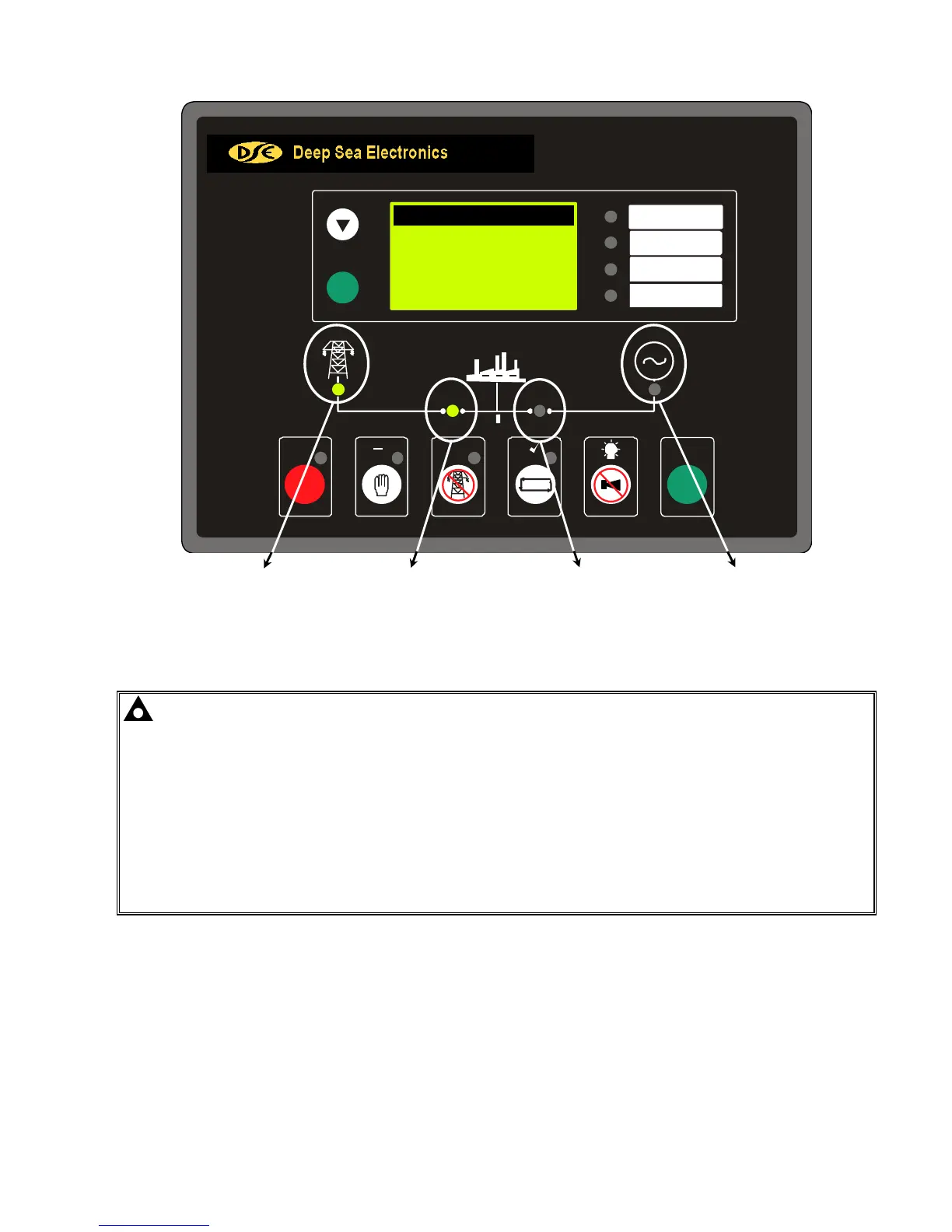

Mains Indication LED.
Lit when The Mains Is
Healthy
Close Mains Output
LED. On When The
Mains Is Required To
Be On Load
Close Generator
Output LED. On When
The Generator Is
Required To Be On
Load
Generator available
LED. On When The
Generator Is Available
For Loading.
NOTE:- “Generator on load” and “Mains on Load” LEDs have two modes of operation depending
upon the configuration of the controllers digital inputs.
1) Digital input configured for “Generator closed auxiliary” – The LED will be lit when the generator
closed auxiliary input is active – The LED shows the state of the auxiliary contact.
2) There is NO input configured for “Generator closed auxiliary” (factory default setting) – The LED will
be lit when the 5320 gives the loading signal to the generator – The LED shows the state of the
5320’s loading request.
3) Digital input configured for “Mains closed auxiliary” – The LED will be lit when the mains closed
auxiliary input is active – The LED shows the state of the auxiliary contact.
4) There is NO input configured for “Mains closed auxiliary” (factory default setting) – The LED will be
lit when the 5320 gives the loading signal to the mains – The LED shows the state of the 5320’s
loading request.
