DSE Model 5320 Automatic Mains Failure & Instrumentation System Operators Manual
28 Part No. 057-014 5320 OPERATING MANUAL ISSUE 5.1 18/06/2007 ADM
5.4 USER CONFIGURABLE INDICATORS
These LEDs can be configured by the user to indicate any one of 100+ different functions
based around the following:-
• Indications - Monitoring of a digital input and indicating associated functioning user’s
equipment - Such as Battery Charger On or Louves Open, etc.
• WARNINGS And SHUTDOWNS - Specific indication of a particular warning or shutdown
condition, backed up by LCD indication - Such as Low Oil Pressure Shutdown, Low
Coolant level, etc.
Status Indications - Indication of specific functions or sequences derived from the modules
operating state - Such as Safety On, Pre-heating, Panel Locked, Generator Available, etc.

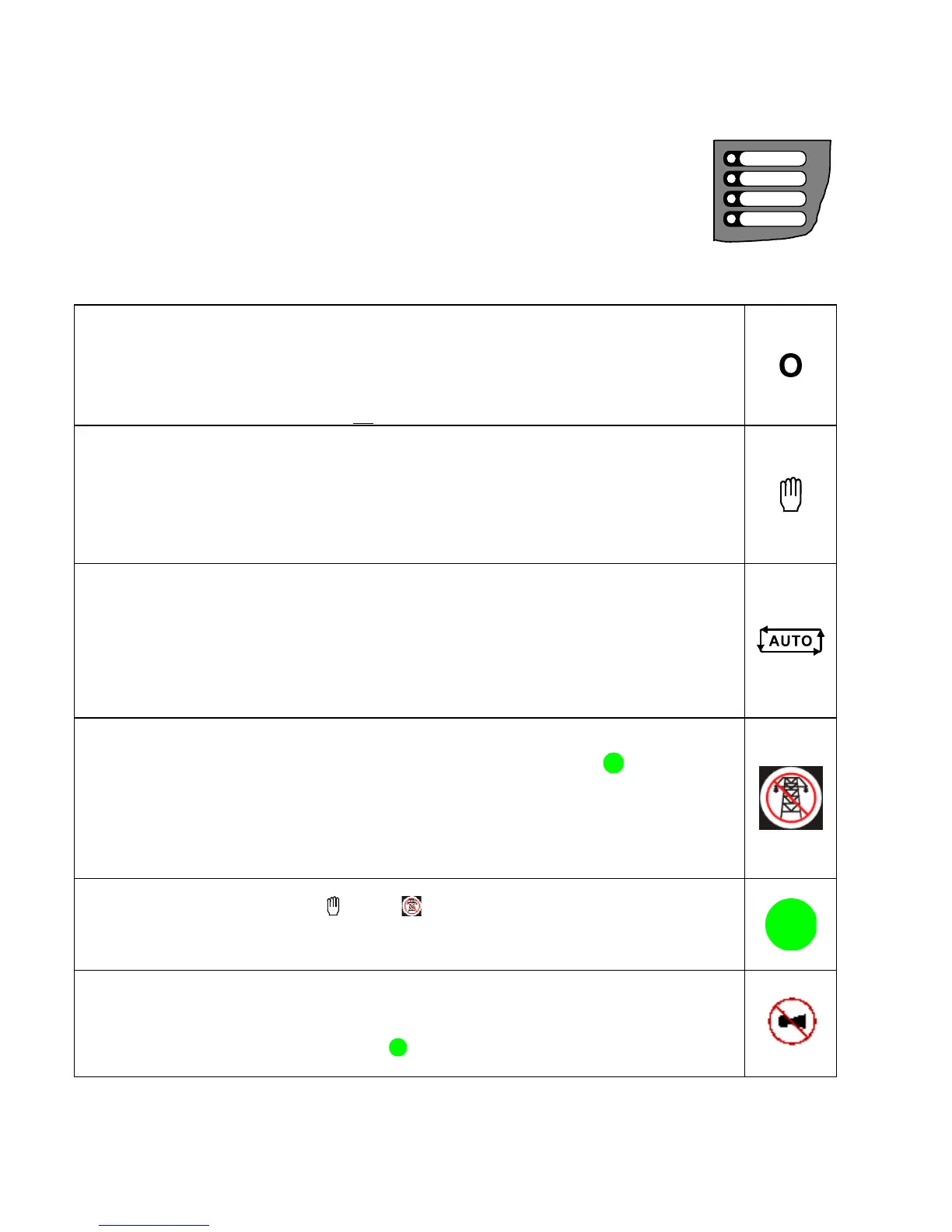

5.5 CONTROLS
Stop / Reset
This button places the module into its Stop/reset mode. This will clear any alarm conditions for
which the triggering criteria have been removed. If the engine is running and this position is
selected, the module will automatically instruct the changeover device to un-load the generator
(‘Close Generator’ becomes inactive (if used)). The fuel supply will be removed and engine will be
brought to a standstill. Should a remote start signal be present, or a mains fail occurs, while
operating in this mode, a remote start will not
occur.
Manual
This mode is used to allow manual control of the generator functions. Once in Manual mode the
module will respond to the start (I) button and start the engine and run off load. If the engine is
running off-load in the Manual mode and a remote start signal becomes present, or the mains fails,
the module will automatically instruct the changeover device to place the generator on load (‘Close
Generator’) becomes active (if used)). Should the remote start signal then be removed, or the
mains returns, the generator will remain on load until either the ‘STOP/RESET’ or ‘AUTO’ positions
is selected.
Auto
This button places the module into its ‘Automatic’ mode. This mode allows the module to control the
function of the generator automatically. The module will monitor the remote start input and the
mains supply. If the remote start input is active, or the mains fails, the set will be automatically
started and placed on load (‘Close Generator’ becomes active if used). If the starting signal is
removed, or the mains returns, the module will automatically transfer the load from the generator and
shut the set down observing the stop delay timer and cooling timer as necessary. The module will
then await the next start event. For further details please see the more detailed description of ‘Auto
Operation’ earlier in this manual.
Test
This button places the module into its ‘Test’ mode. This mode allows the operator to perform an ‘on
load’ test of the system. Once in Test mode the module will respond to the start
I
button and start
the engine, and run on load (‘Close Generator’ becomes active if used). The generator will continue
to run on load until Auto mode is selected. Then, If the starting signal is removed and the mains is
healthy, the module will automatically transfer the load from the generator and shut the set down
observing the stop delay timer and cooling timer as necessary. The module will then await the
next start event.
For further details please see the more detailed description of ‘Test Operation’ earlier in this manual.
Start
This button is only active in MANUAL
or TEST mode. Pressing this button in manual or test
mode will start the engine and run off load (manual) or on load (test).
Pressing this button in STOP/RESET mode will turn on the CAN engine ECU (when correctly
configured and fitted to a compatible engine ECU)
I
