Deep Sea Electronics Plc DSE5320 - Icons and Lcd Identification

DSE Model 5320 Automatic Mains Failure & Instrumentation System Operators Manual
Part No. 057-014 5320 OPERATING MANUAL ISSUE 5.1 18/06/2007 ADM 57

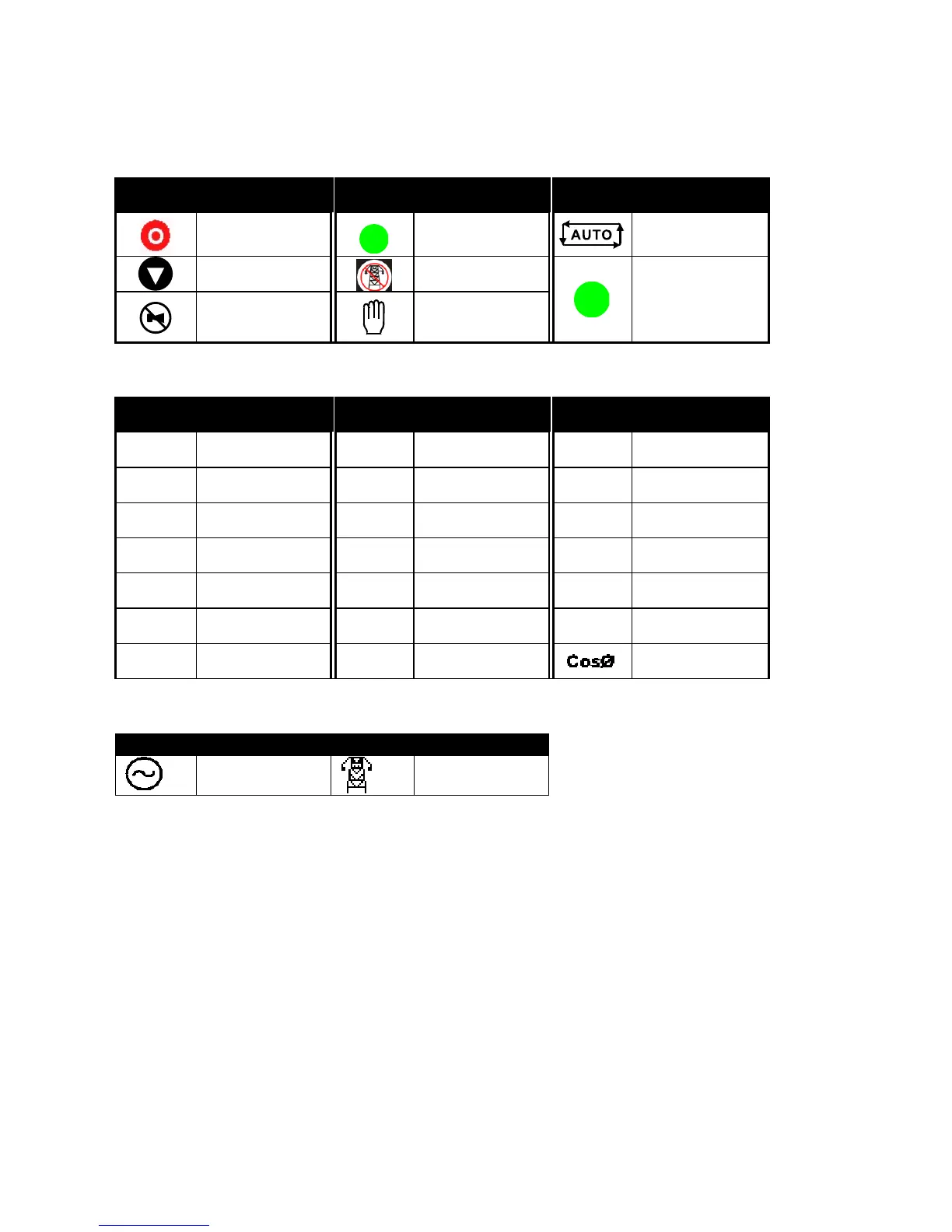

14.2 ICONS AND LCD IDENTIFICATION
14.2.1 PUSH BUTTONS
Display Description Display Description Display Description
Stop/Reset
i
Page scroll Auto mode
Scroll
Test mode
I
Start (when in
Manual or Test
mode)
Mute Manual mode
14.2.2 STATUS / MEASUREMENT UNITS
Display Description Display Description Display Description
L1
Phase
L2
Phase
L3
Phase
L1- N
Phase - Neutral
L2- N
Phase - Neutral
L3- N
Phase -Neutral
L1- L2
Phase - Phase
L2- L3
Phase - Phase
L3- L1
Phase - Phase
BAR
Pressure
KPa
KPa Oil Pressure
Units
PSI
Pressure
V
Voltage
o
F
Temperature
Hz
Frequency
A
Amperes
o
C
Temperature
RPM
Speed
kW
KiloWatts
kVA
Apparent power
KW divided by
kVA
14.2.3 LED INDICATION
Display Description Display Description
Generator
available
Mains available
