DSE Model 5320 Automatic Mains Failure & Instrumentation System Operators Manual
42 Part No. 057-014 5320 OPERATING MANUAL ISSUE 5.1 18/06/2007 ADM

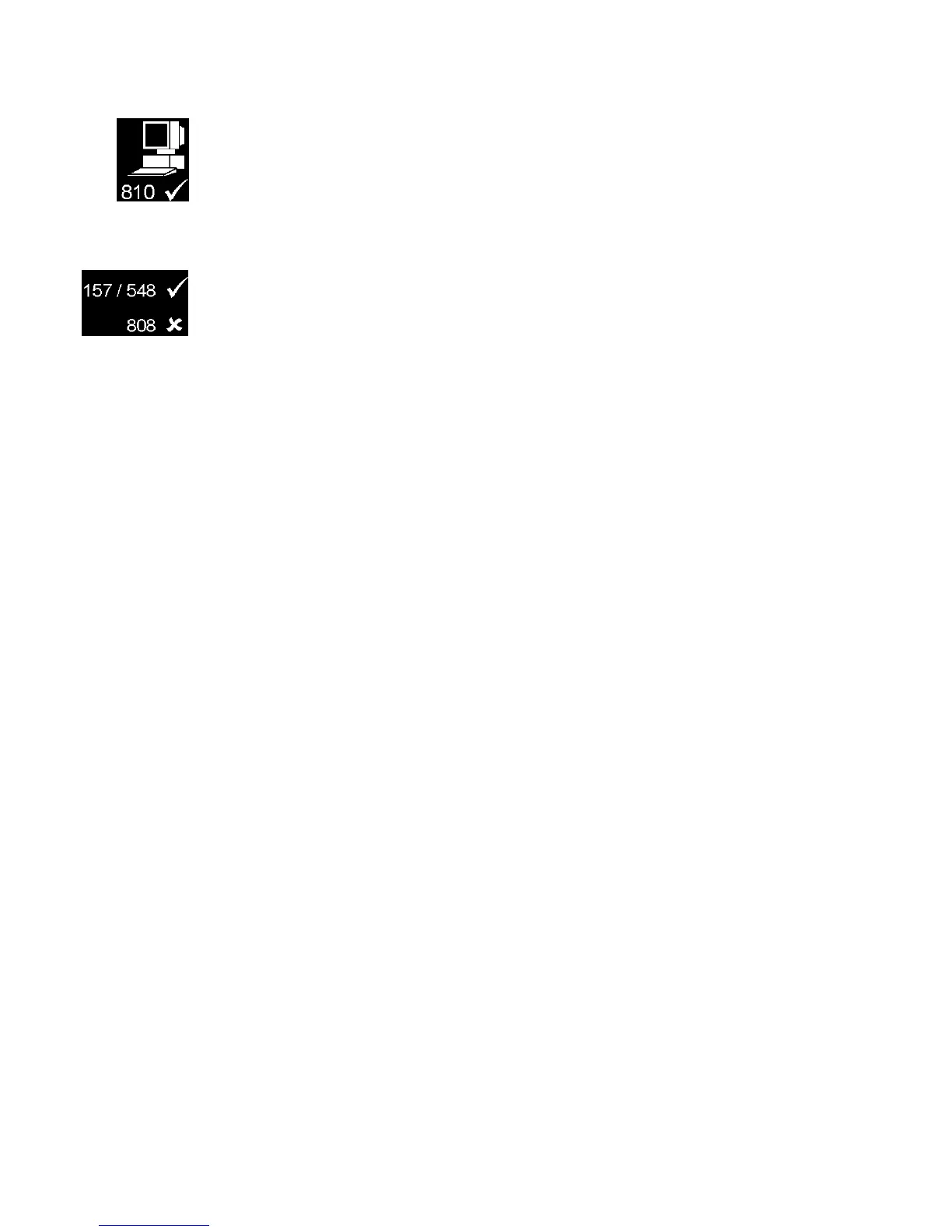

8.1.9 PC CONFIGURATION INTERFACE CONNECTOR
8-way connector allows connection to PC via the 810 configuration interface.
Module can then be re-configured utilising the
5xxx series configuration
software.
8.1.10 EXPANSION OUTPUT CONNECTOR
The expansion connector allows connection to the 157 relay expansion module
or to the 548 LED Remote annunciator module.
