Deep Sea Electronics Plc DSE5320 - Front Panel Layout

DSE Model 5320 Automatic Mains Failure & Instrumentation System Operators Manual
Part No. 057-014 5320 OPERATING MANUAL ISSUE 5.1 18/06/2007 ADM 37

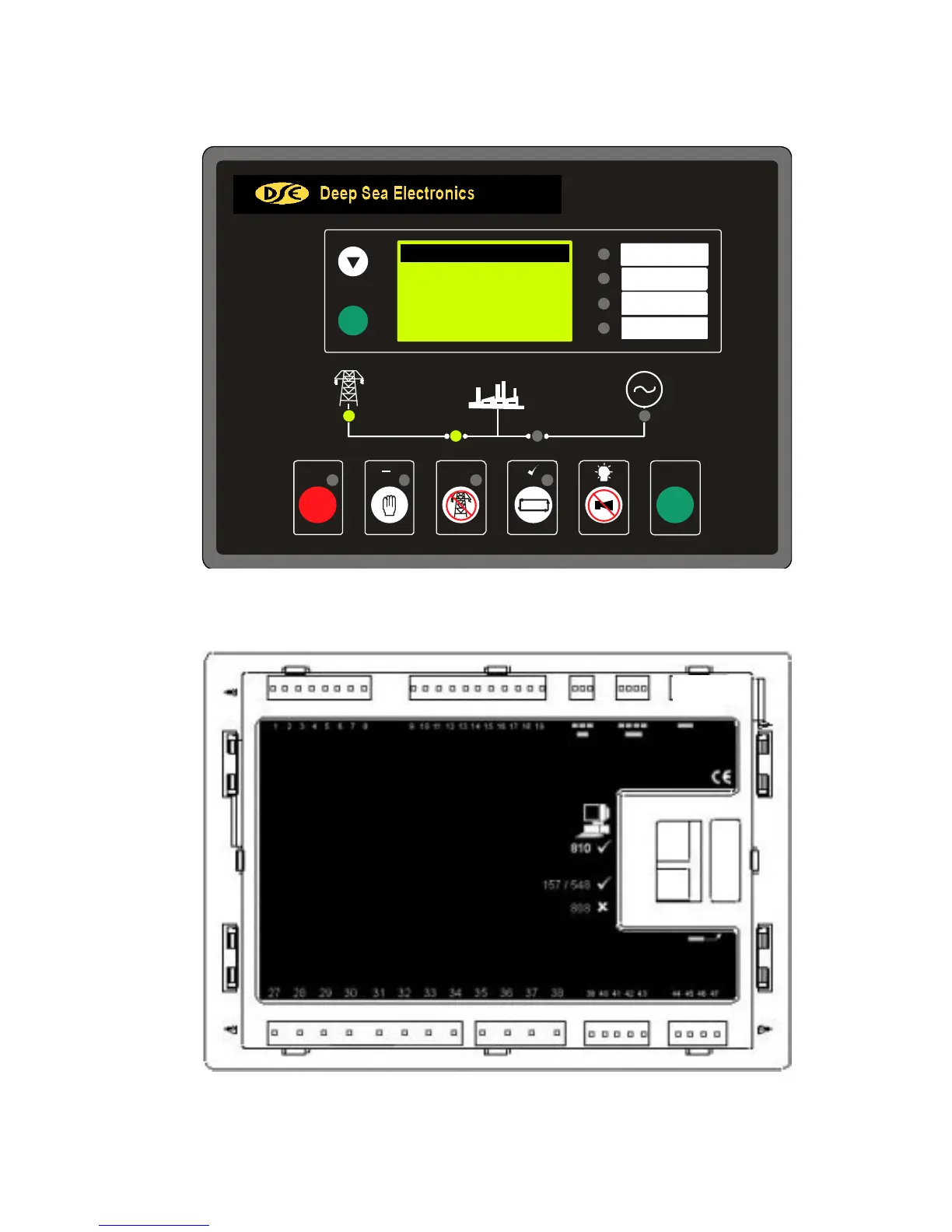

7.4 FRONT PANEL LAYOUT
Deep Sea Electronics
Model 5220
O
I
+
AUTO
i
Warming 10s
L-N 240V 0A 50Hz
L-L 415V 0kW
RUNNING IN AUTO
FIG 5
7.5 REAR PANEL LAYOUT
FIG 6
