Rooster™ Sensor100 USER MANUAL
Rooster
TM
Sensor100 USER MANUAL 62320MN000-A04 11
6. Using the provided screw, tighten and cinch the sensor into place.
Back View
Front View

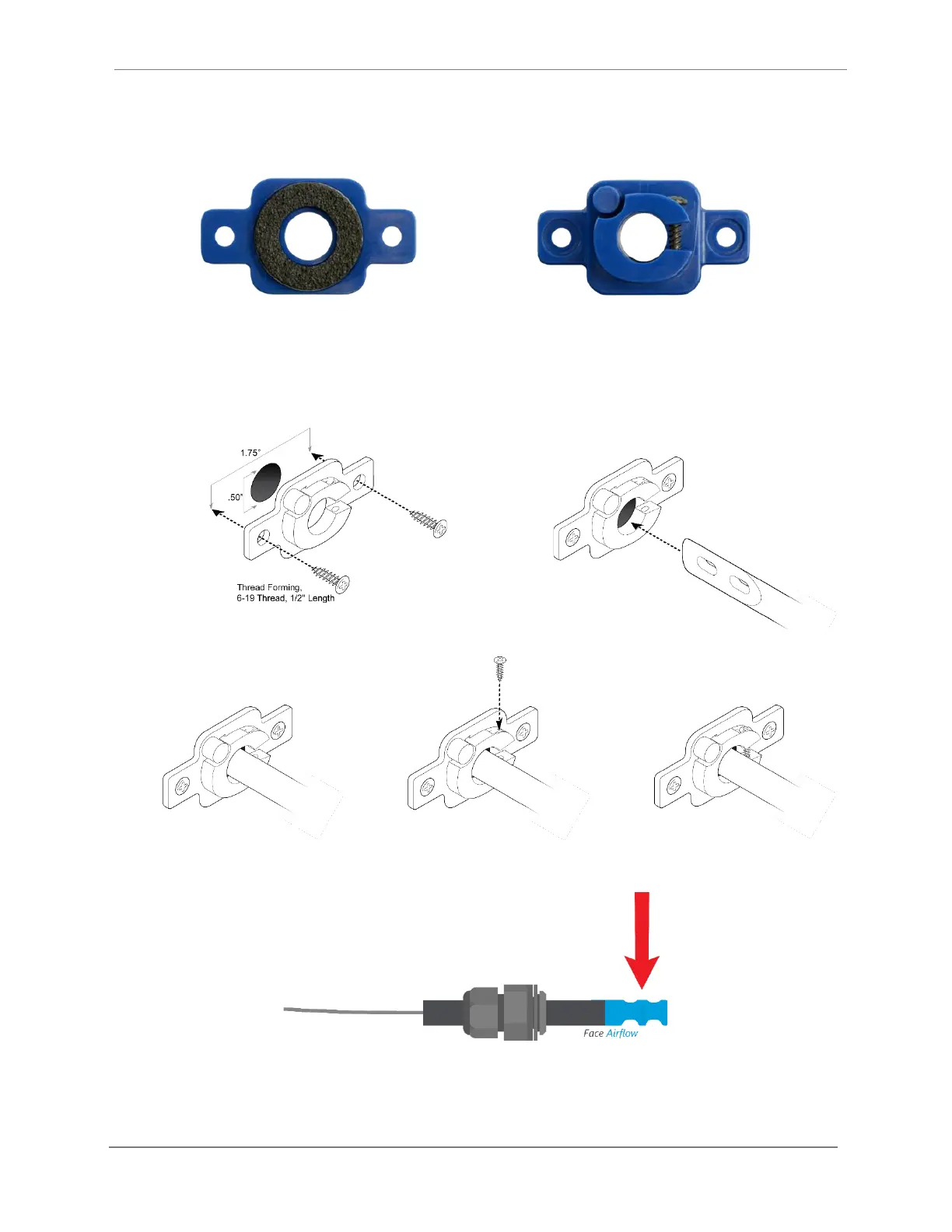

Figure 4 °C Clamp
Figure 5 °C Clamp Installation
Figure 6 Airflow Direction
Ensure that the sensor head is aligned correctly, by positioning the arrow in the direction of
airflow.
Step 1
Step 2
Step 3
Step 4
Step 5
