• The Logic 1 output is set to Virtual Event 1.
• The Event A in Logic 2 is Virtual Event 1.
This gives a total of five events that can be used in this logic sequence (A + B + C in Logic 1 and B + C in Logic 2).
3.4.2 Set/reset function
If you use a single digital input to select AUTO/MANUAL, you need a SET/RESET function, since two digital inputs are normally
required for this.
In the following example, digital input 55 is used to switch between AUTO (input ON) and MANUAL (input OFF).
• First line: If input 55 = ON and AUTO = OFF (NOT Auto operation mode), then set AUTO mode command.
• Second line: If input 55 = OFF and MANUAL = OFF (NOT Manual operation), then set MANUAL mode command.

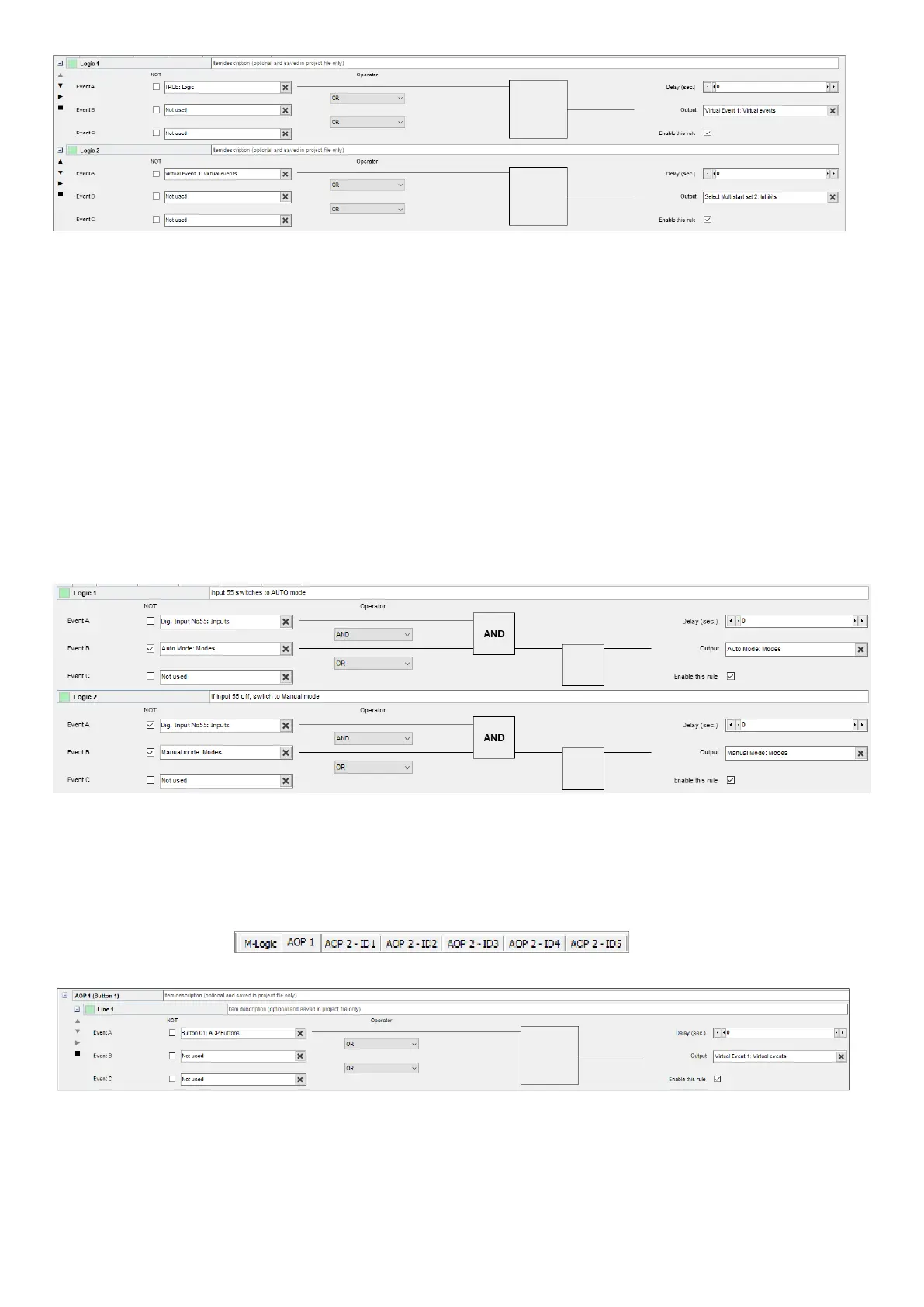

In M-Logic, it looks like this:
3.4.3 Configure an AOP LED
In this example, button 1 on a connected AOP (Additional Operator Panel) is used to activate Virtual Event 1. In the line AOP 1 (LED
1) is Virtual Event 1 configured to activate red LED 01 on the AOP to red blink.
Select an AOP with the tabs
.
Configure an AOP button to Virtual Event 1 output as shown:
Configure line 1 in AOP 1 (LED 1) as shown:
Application note 4189341276B EN Page 12 of 50
