MIB Installation Instructions and Reference Handbook
DEIF A/S
Page 18 of 50

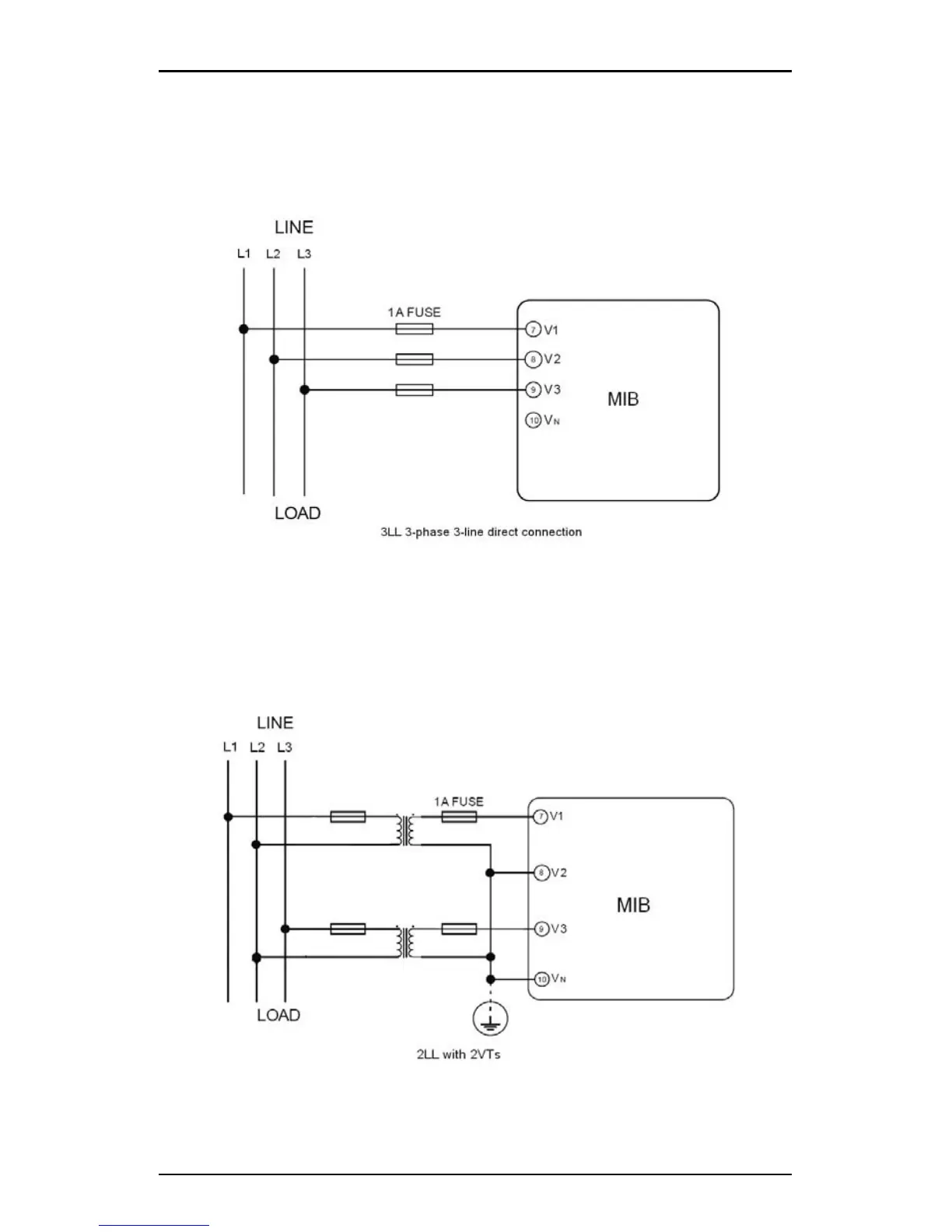

3LL. 3-phase 3-line direct connection
In a 3-phase 3-line system, power lines L1, L2 and L3 are connected to V1,
V2 and V3 directly. Vn is floated. The voltage input mode should be set to
3LL.
2LL. 3-phase 3-line open delta
Open delta wiring mode is used in some applications.
