Delem DA-52 - Programming of Punches

V0608, 3.2
3.2.2. Punch parameters
Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .H
The height of the tool. Important: this height value will be used in bend depth calculation.
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .a
The angle of the punch tip.
Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RA
The radius of the punch.
This parameter has to be used as selection criterium, the value will not be used in
computation formulas.
Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R
Maximum allowable force on punch in kN/mm.
3.3. Programming of bottom dies

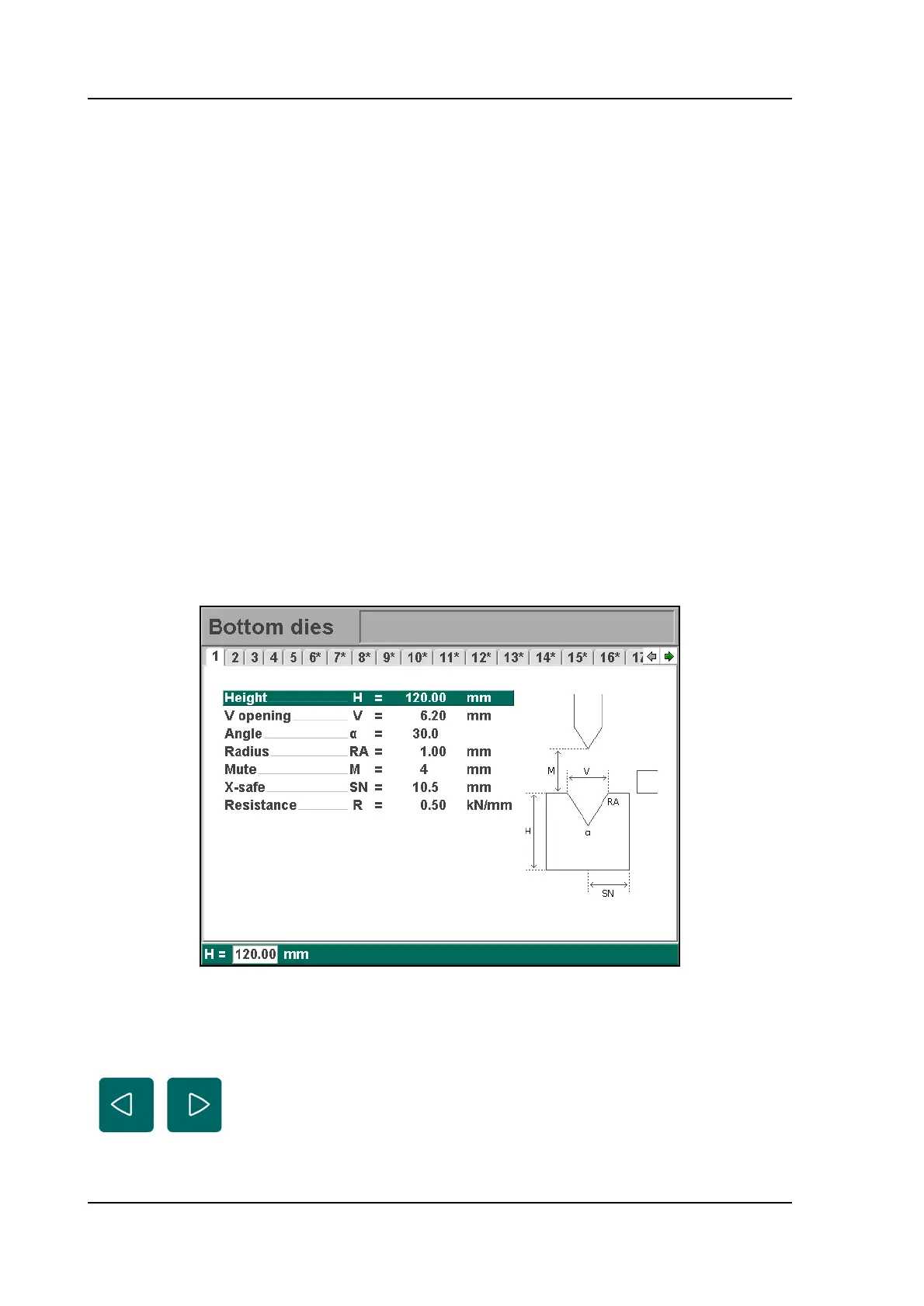

3.3.1. Die library
The programming of dies is started by pressing the tools key.
3.b
A maximum of 30 dies can be programmed.
Use the arrow keys left/right to browse to the desired
tool in the library.
