Delem DA-52 - Programming of Bottom Dies

V0608, 3.3
3.3.2. Die parameters
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..H
The height of the tool. Important: this height value will be used in bend depth calculation.
V-opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..W
The V-opening of the die.

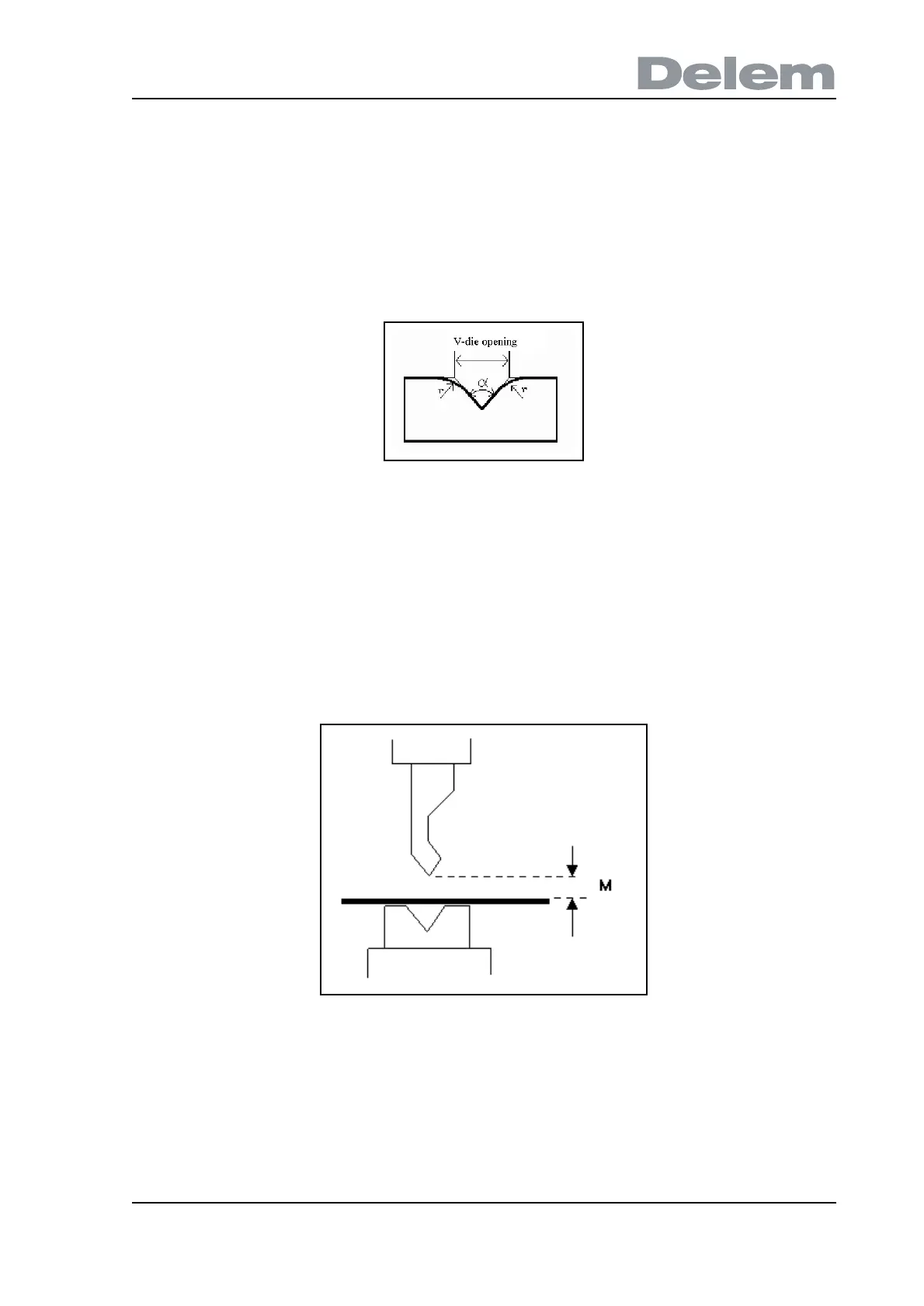

V-die opening:
3.c
The width V is the distance between the touching lines crossing.
Angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
α
The angle of the die.
Radius. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..RA
The radius of the edges of the V-opening.
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..M
Muting distance. Distance above the sheet at which the speed change takes place.
3.d
X-safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..SN
Calculated safety zone (minimum X-axis value), which will be used in the case an R-axis
is mounted. This to prevent finger to die collision. The indicated minimum value is
