Delem
V0504, 9

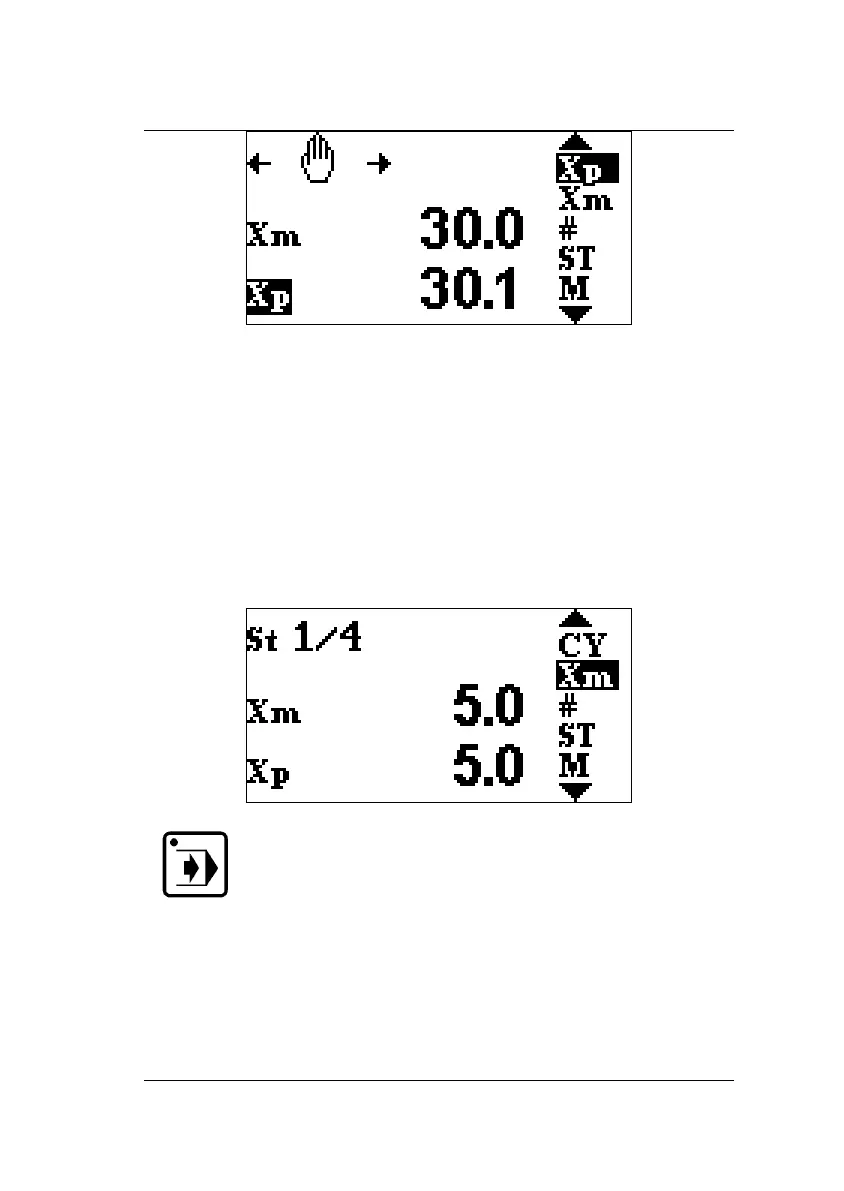

Now the axis can be moved by pressing the manual movement
keys on the front panel. These keys are:
+ = slow speed in counting up direction
- = slow speed in counting down direction
X = high speed, must be pressed together with the + or - key.
3.3. Automatic mode
In Automatic Mode a program can be executed.
When the automatic key is pressed the back
gauge moves to the programmed position of the
first step.
The execution of different program steps is controlled with the
START input. When this input is switched from low to high, the
axis (back gauge) moves to the programmed position. When
switched from high to low, the next step is loaded.
