Unpacking and assembling the e-bike

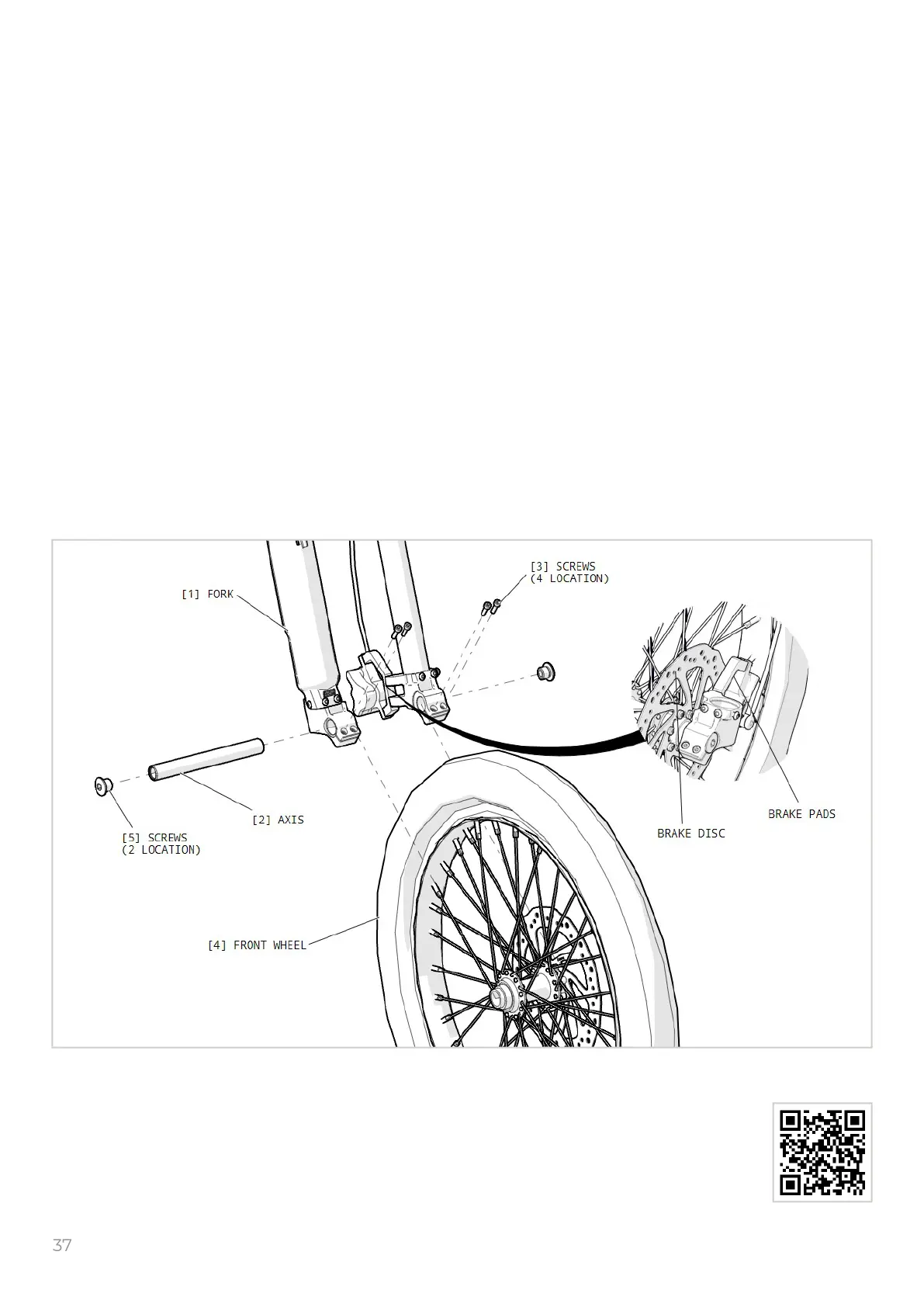

Front wheel – Installation
A. Carefully unpack the front wheel [4].
1. Do not contaminate the brake disk.
2. Do not apply unwanted weight to the disc, it could lead to brake disc deformation
B. Remove the transport brake cap from the brake pads.
C. Install the front wheel [4].
1. Put the front wheel [4] on its position.
2. Make sure that the brake disc comes between brake pads.
3. Install the axis [2] to the fork [1].
D. Install the screws [5] to the fork [1].
1. Tighten the screws [5].
E. Install the screws [3] to the fork [1].
1. Tighten the screws [3] with No5 hexagon.
Watch
How-to Video
(for clarity some elements not shown)
