42

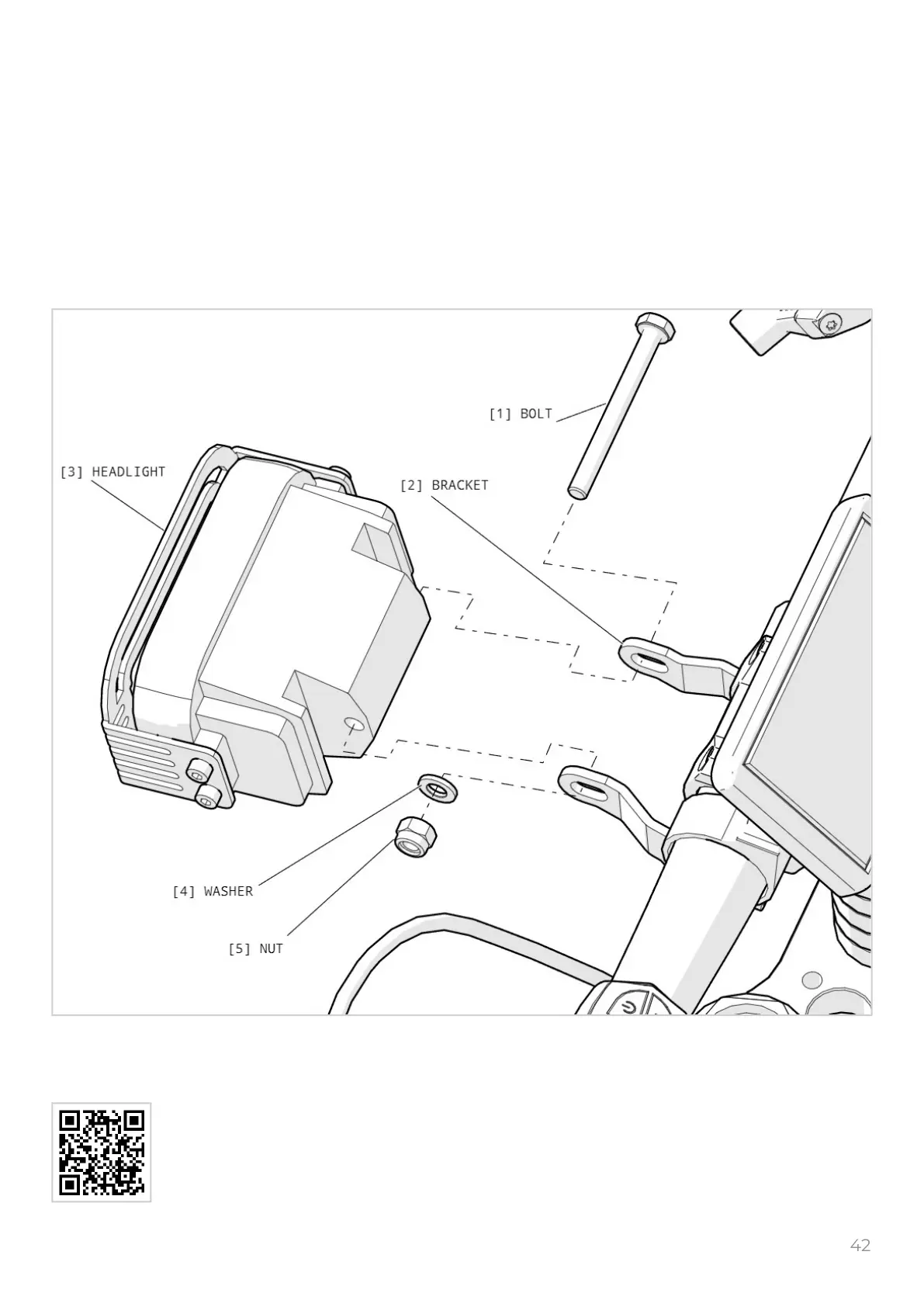

Headlight – Installation
E. Put the headlight [3] on its position.
1. Install the bolt [1], washer [4] and nut [3] on the bracket [4].
2. Tighten the nut [5] and bolt [1] with two #10 open-end wrenches.
F. Connect the electrical connector to the headlight [3].
G. Do a check of the headlight [3].
H. If necessary, adjust the headlight [3].
