Delfast Top 3.0 - E-bike Assembly: Handlebar Installation; Installing the Handlebars and Stem

38

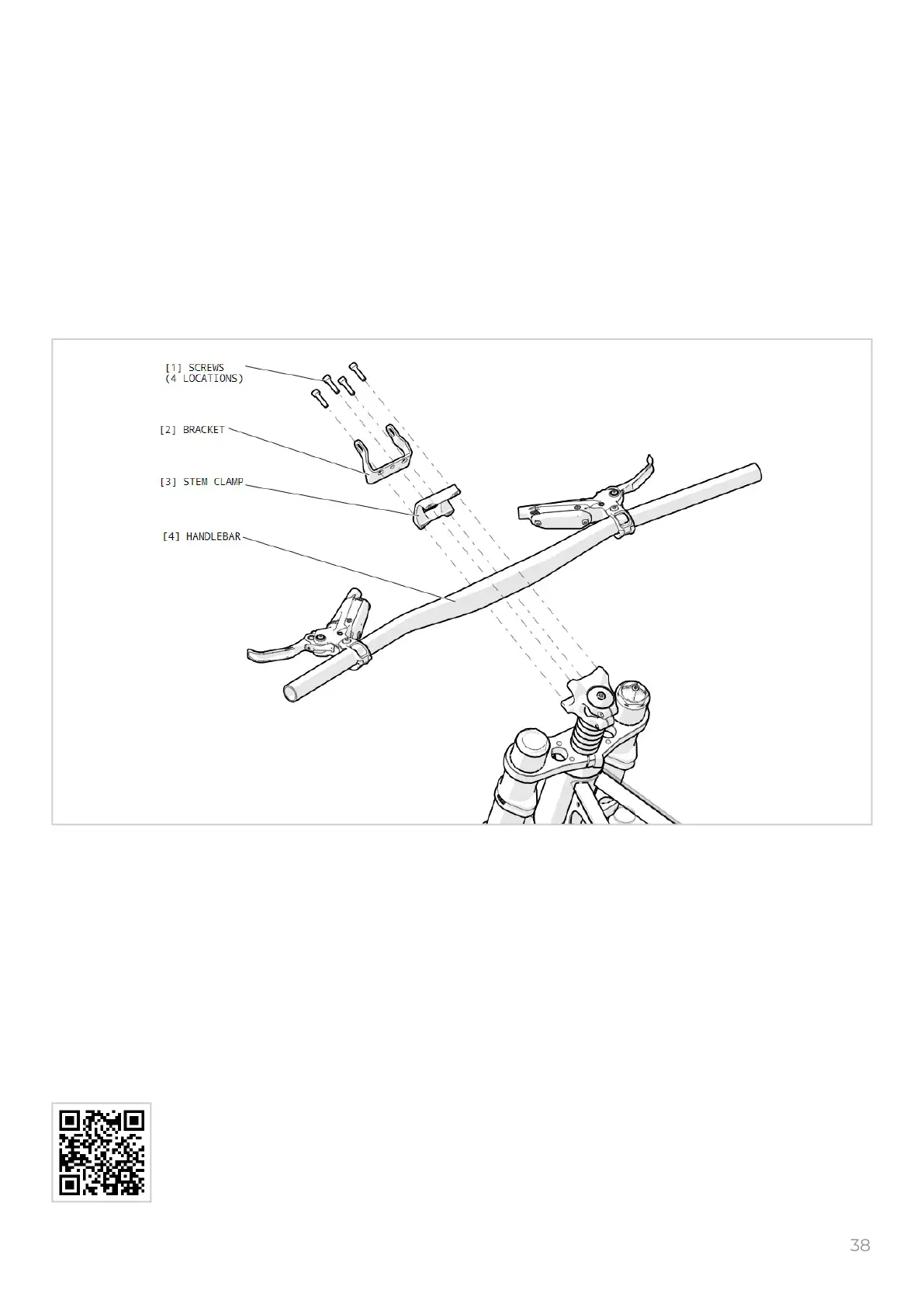

Handlebar – Installation
A. Install the handlebar [4].
1. Put the handlebar [4] and stem clamp [3] on its position.
2. Loose tighten the upper screws [1] with your ngers.
3. Put the bracket [2] on its position.
4. Loose tighten the lower screws [1] with your ngers.
B. Make sure that the handlebar [4] is centered.
C. Tighten the screws [1] to 35,4 in-lb (4 Nm).
(for clarity some elements not shown)
