40

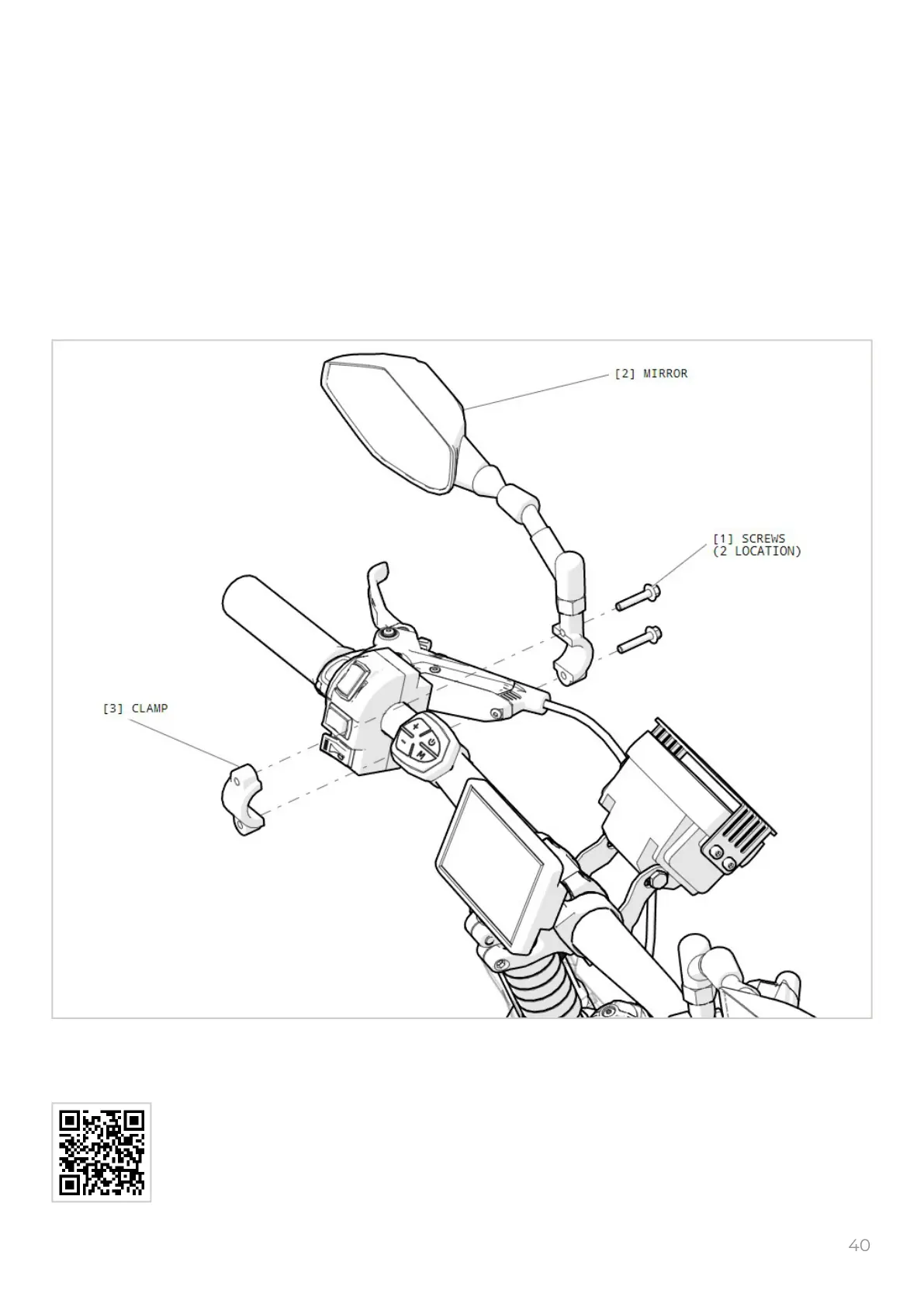

Mirror – Installation
These steps are applicable to both right and left mirror.
A. Install the clamp [3] and mirror [2] on its position.
B. Install the screws [1] on the mirror [2].
1. Tighten the screws [1] with the #10-12m open-end wrench.
C. Connect the electrical connector to the mirror repeater.
D. Do a check of the turn signal.
E. Adjust mirror [2].
