Delfast Top 3.0 - E-bike Assembly: Rear Light Mounting; Rear Light Bracket Installation

39

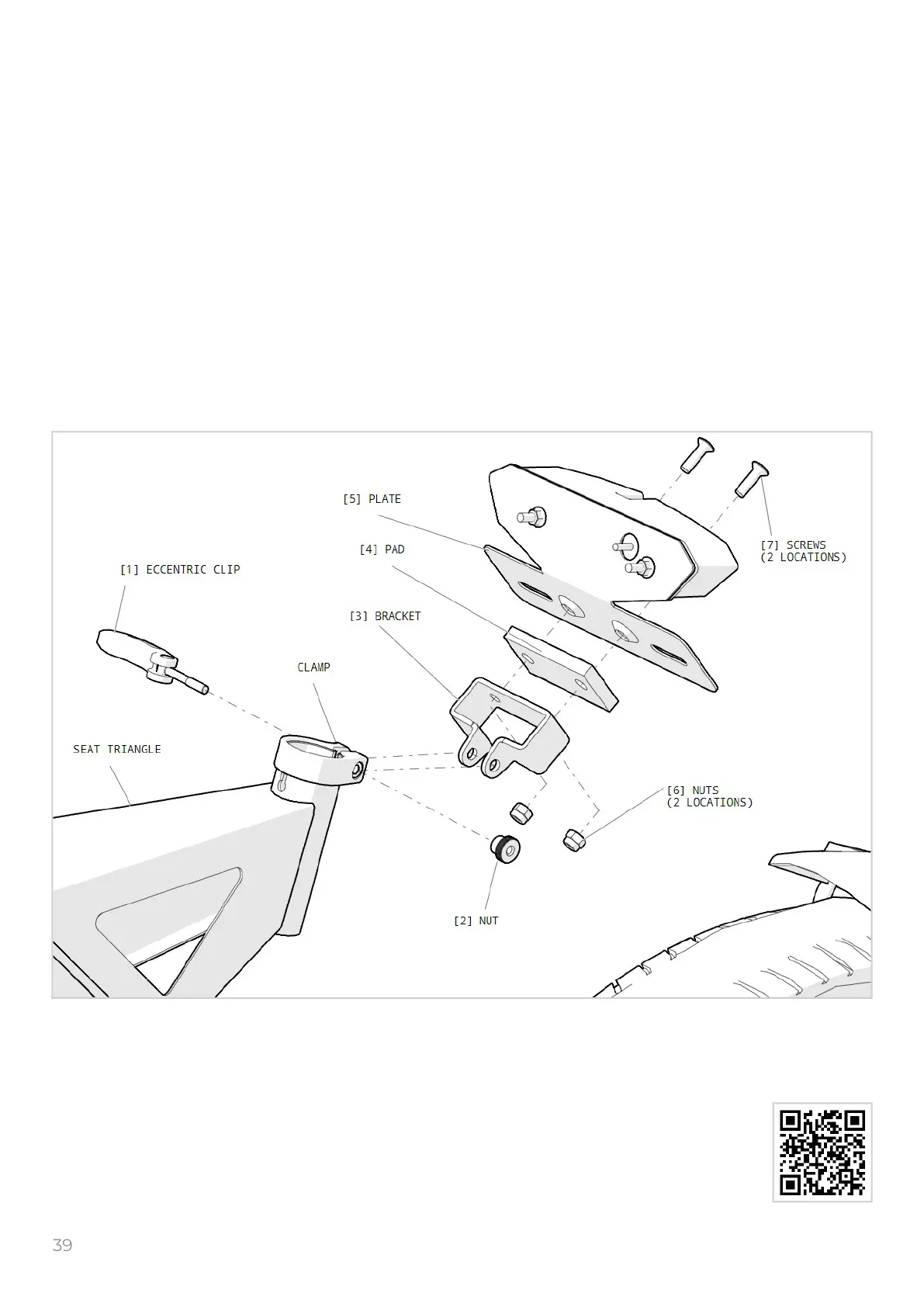

Rear light mounting bracket – Installation
A. If the plate [5] and pad [4] was removed, do as follows:
1. Put the plate [5] and pad [4] on the bracket [3].
2. Install the screws [7] and nuts [6] on the bracket [3].
B. Put the bracket [3] on its position.
1. Put the nut [2] and eccentric clip [1] on its position.
2. Hold the eccentric clip [1] with your ngers.
a. Tighten the nut [2] with your ngers.
C. Adjust the rear light [2].
D. Turn the eccentric clip [1] to tighten it.
E. Connect the electrical connector to the rear light.
