Delfast Top 3.0 - E-bike Assembly: Horn Installation; Mounting and Connecting the Horn

41

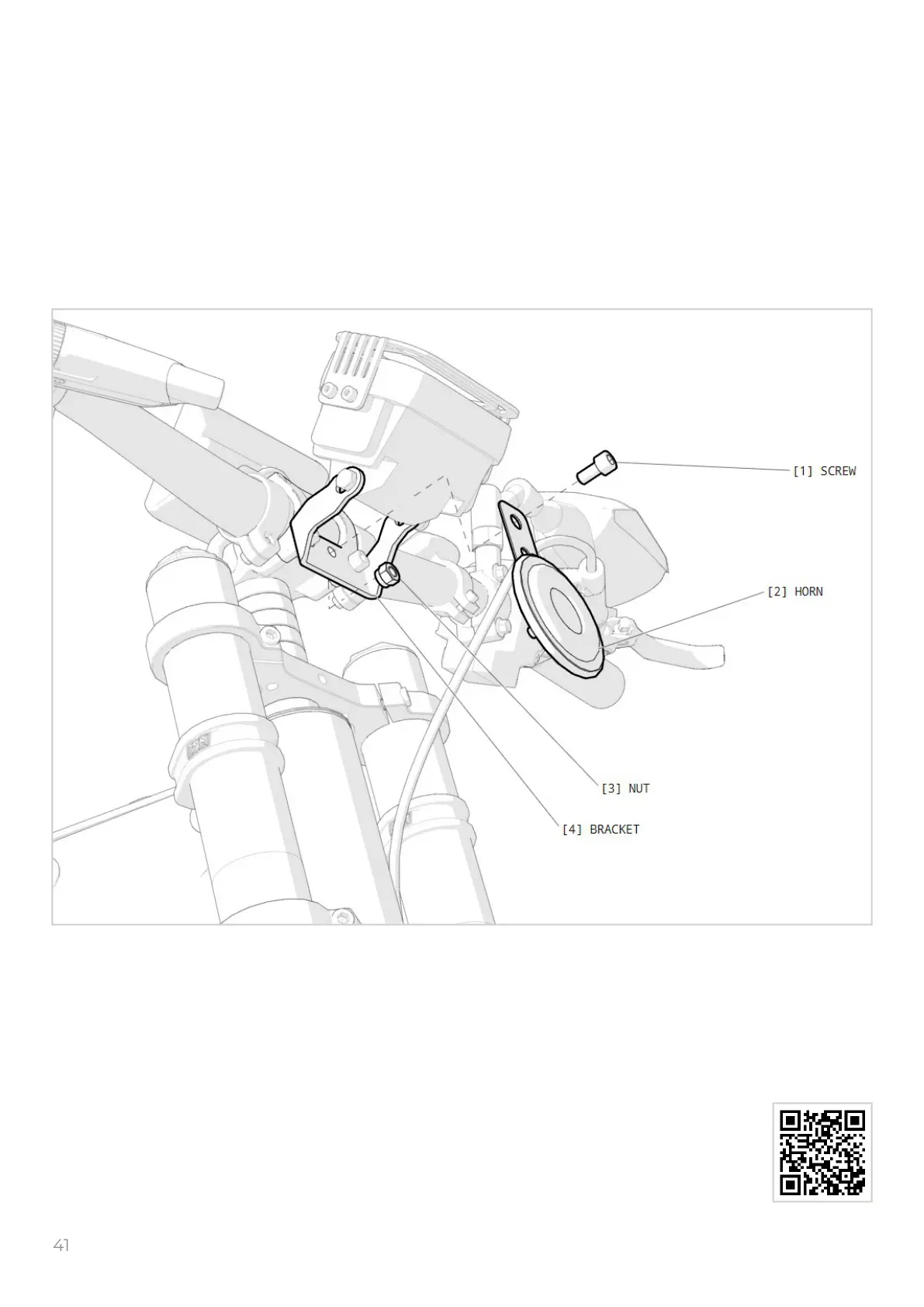

Horn – Installation
A. If necessary, turn up the headlight.
B. Put the horn [2] on its position.
1. Install the screw [1] and nut [3] on the bracket [4].
2. Tighten the screw [1] with the #10 hexagon socket head screw.
C. Connect the electrical connector to the horn [2].
D. Do a check of the horn [2].
