Dell EMC Z9264F-ON User Manual

Z9264F-ON switch
The following sections describe the Dell EMC Z9264F-ON switch:
Topics:
• Introduction
• Features
• Physical dimensions
• LED display
• Prerequisites
• Z9264F-ON switch congurations
• Luggage tag
Introduction
The Z9264F-ON switch is a two rack unit (RU), full-featured, xed form-factor top-of-rack (ToR) and end-of-row 1/10/25/40/50/100 GbE
switch. In addition, the Z9264F-ON supports two SFP+ ports at 1/10 Mbps with 10 GbE multi-mode and single-mode options. The switch
includes two hot-swappable AC or DC power supply units (PSUs) and four hot-swappable fan units.
For specic port prole details, see the OS10 Enterprise Edition User Guide.
The Z9264F-ON switch includes 64 QSFP28 ports. The QSFP28 ports support the following:
• 64 x 100G—native Q28
• 128 x 50G—via breakout
• 128 x 25G—via breakout
• 128 x 10G—via breakout
• 128 x 1G—via breakout
• 64 x 40G—native 40G and 128 x 40G via breakout

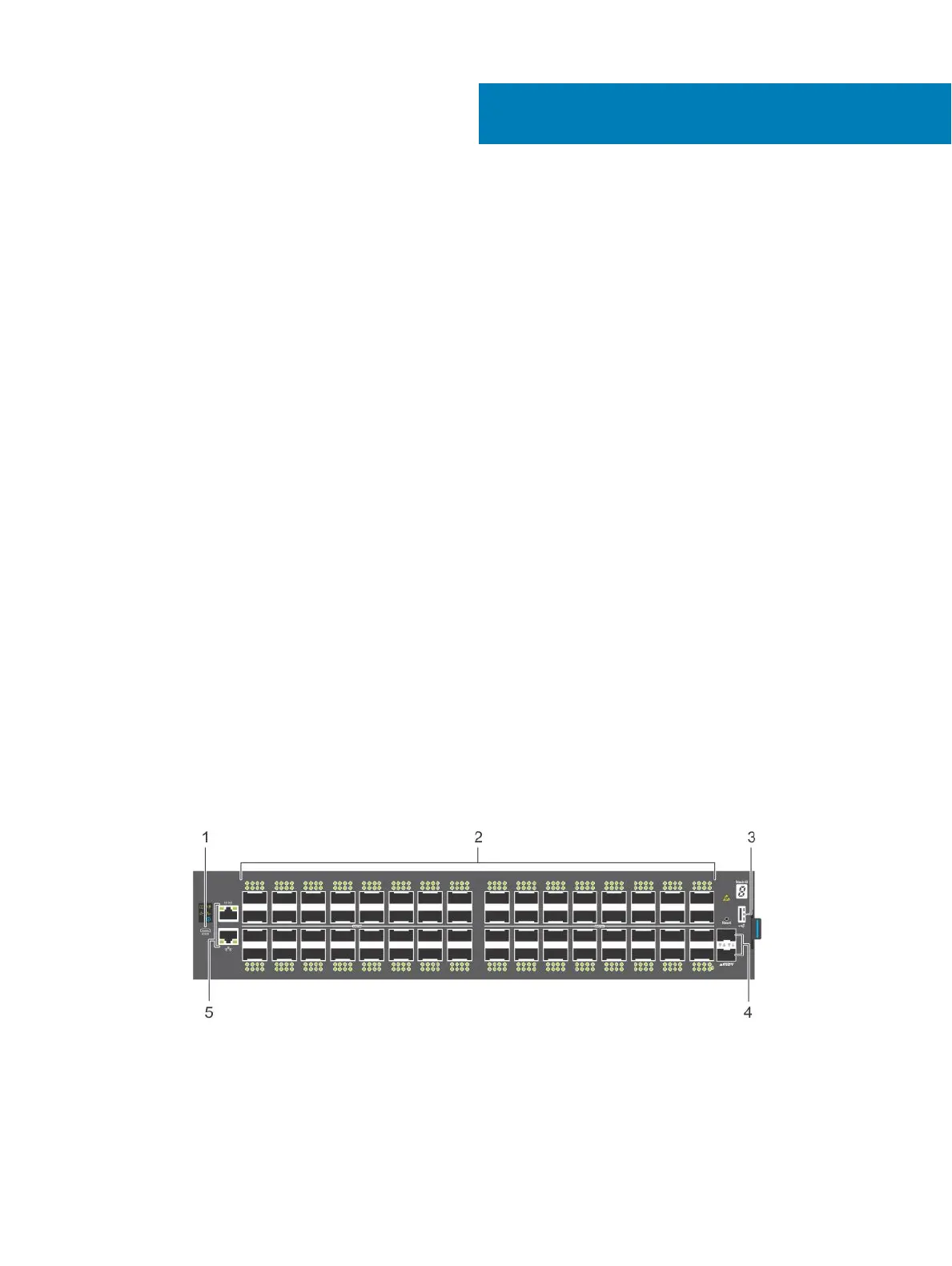

Figure 2. Z9264F-ON I/O-side view
1
MicroUSB type-B port 2 Sixty-four QSFP28 ports
3 USB type-A port 4 Two SFP+ ports
2
Z9264F-ON switch 7

Dell EMC Z9264F-ON Specifications

General

Brand	Dell EMC
Model	Z9264F-ON
Category	Switch
Language	English
