Steps

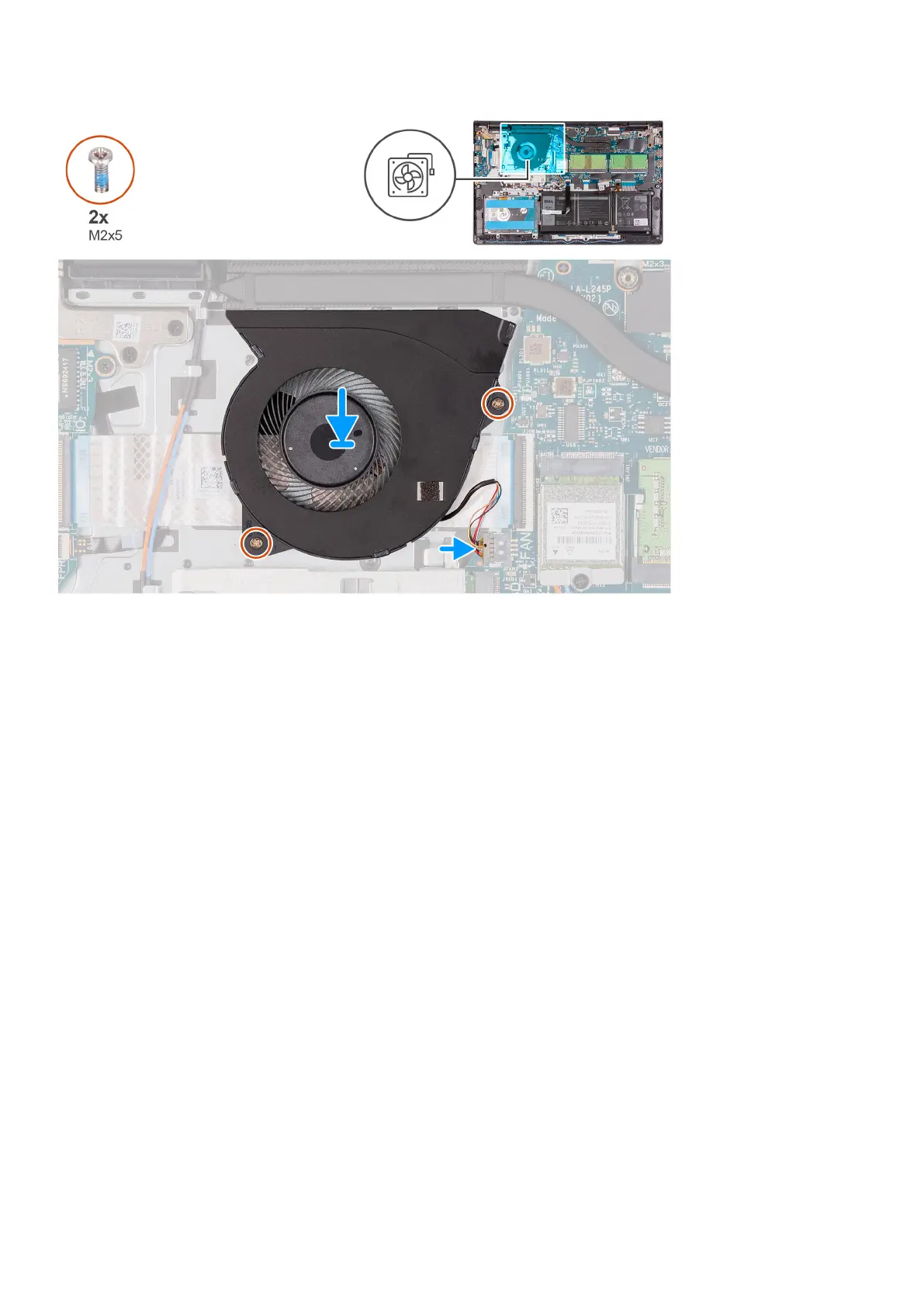

1. Align and place the fan on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x5) to secure the fan to the palm-rest and keyboard assembly.
3. Connect the fan cable to the connector on the system board .
Next steps
1. Replace the base cover.
2. Exit service mode.
3. Replace the SD card.
4. Follow the procedure in after working inside your computer.
Heat sink
Removing the heat sink - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
About this task
The following images indicate the location of the heat sink and provides a visual representation of the removal procedure.
Removing and installing components
39
